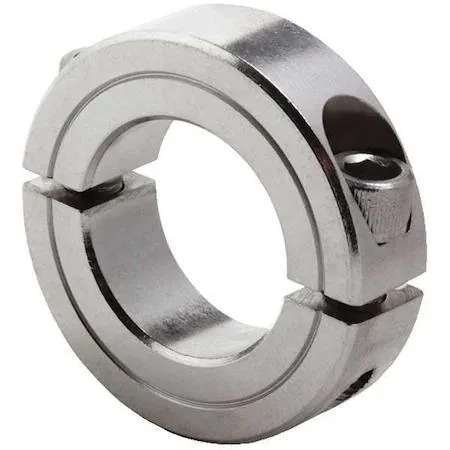

Dayton 1L715 Shaft Collar Clamp 2-Piece 3/8 In SS
Two-piece stainless-steel clamp collar fits a 3/8-inch round shaft with a 7/8-inch outside diameter and #6-32 screws
- Two-piece design simplifies installation on existing shafts
- 304 stainless steel resists corrosion in harsh environments
- 3/8 inch bore fits standard inch-dimension shafting
- 7/8 inch outside diameter provides secure clamping force
- 11/32 inch width distributes load across shaft surface
Precision Shaft Collar
The Dayton 1L715 is a two-piece clamp-style shaft collar machined from 304 stainless steel for a 3/8 inch round bore. It provides secure axial positioning on shafts in machinery, automation and maintenance applications where corrosion resistance and a clean finish are required.
Simple Two-Piece Install
The split design allows the collar to be fitted or removed without sliding it over the shaft end, saving time during assembly or service. Tighten the #6-32 clamping screws evenly to avoid distortion; over-torquing the small fasteners can strip threads or crack the collar.
Verify Shaft And Space
Confirm the shaft diameter is exactly 3/8 inch and that the 7/8 inch outside diameter plus the .95 inch clearance diameter fit within adjacent components. Ensure the 11/32 inch collar width clears nearby bearings, gears or frame members before ordering.
Highlights
- Two-piece design simplifies installation on existing shafts
- 304 stainless steel resists corrosion in harsh environments
- 3/8 inch bore fits standard inch-dimension shafting
- 7/8 inch outside diameter provides secure clamping force
- 11/32 inch width distributes load across shaft surface
Specifications
No published specifications for this item yet.
Questions about this item
How can I verify the 2-piece clamp is seated correctly on a 3/8 in shaft after tightening the #6-32 screws?
The 2-piece design fully closes around the 3/8 in bore; with both #6-32 screws torqued evenly the 7/8 in outside diameter and .95 in clearance diameter sit flush, giving a visible uniform gap and no rocking on the shaft.
What hardware comes with the 1L715 collar and what must I supply?
The package includes the two stainless-steel 304 collar halves and the matching #6-32 clamp screws; no additional fasteners, keys or tools are included.
When should I choose the 3/8 in bore version instead of another size?
Select the 3/8 in bore when your shaft measures exactly 3/8 in diameter; the collar’s 11/32 in width and 7/8 in outside diameter are fixed for this bore size.
