Black rectangular network controller with front status LEDs and rear Ethernet, USB, console ports

D-Link

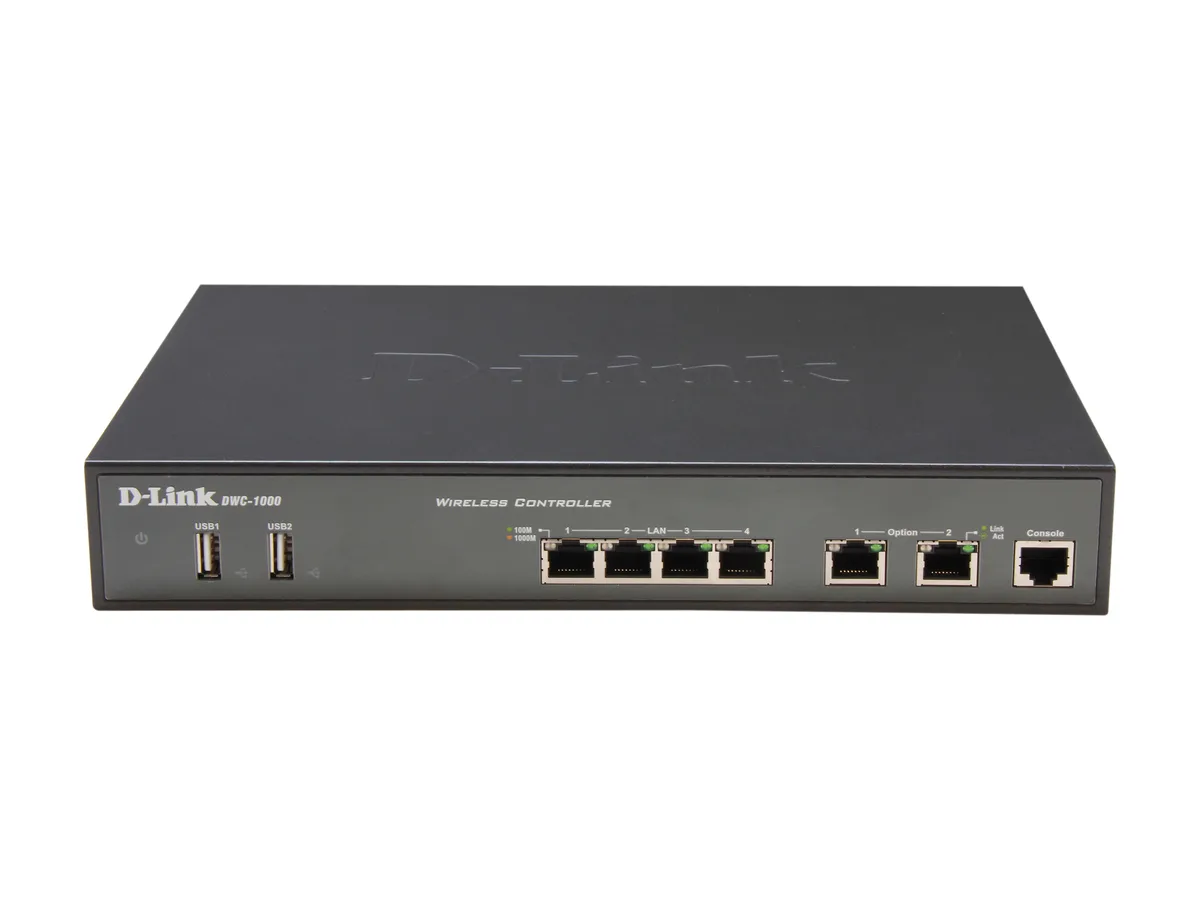

D-Link DWC-1000 Wireless LAN Controller

SKU CH-S547-MN7K0 MPN DWC-1000

Centralised wireless controller manages six D-Link access points, expandable to 24 per unit and 96 per cluster with four 10/100/1000 LAN ports and two USB 2.0 ports

  • TypeWireless LAN Controller
  • ColorBlack
  • SpecificationsEthernet: 4 10/100/1000 LAN Ports, 2 10/100/1000 Option Port
  • FeaturesManage up to 6 wireless APs, upgradable to 24 APs per contro
  • Manages up to 6 access points, expandable to 24 per unit
  • Scales to 96 access points across a 4-controller peer group
  • Four Gigabit LAN ports plus two option ports for flexible uplinks
  • Two USB 2.0 ports for external storage or modem backup
  • Centralised WIDS and rogue AP detection strengthens wireless security

Unified Wireless Controller

The D-Link DWC-1000 is a dedicated hardware appliance that centralises the configuration, monitoring and security of D-Link access points. It ships with four 10/100/1000 LAN ports, two option ports of the same speed, two USB 2.0 ports and an RJ-45 console connection for out-of-band management.

Who This Suits

Network administrators who want a single pane of glass for up to six access points out of the box, with a licence upgrade path to twenty-four per unit and ninety-six across a four-controller peer group. Organisations that require Wireless Intrusion Detection, rogue AP classification and integrated captive-portal authentication will find those features built in. Builders needing PoE power budgets, 10 GbE uplinks or support for third-party access points should look at other platforms.

AP Capacity Decides Fit

The decisive specification is the maximum number of managed access points: six by default, twenty-four per controller after upgrade, and ninety-six total across a peer group of four controllers. If the planned deployment exceeds ninety-six APs, this controller cannot meet the requirement.

Highlights

  • Manages up to 6 access points, expandable to 24 per unit
  • Scales to 96 access points across a 4-controller peer group
  • Four Gigabit LAN ports plus two option ports for flexible uplinks
  • Two USB 2.0 ports for external storage or modem backup
  • Centralised WIDS and rogue AP detection strengthens wireless security

Specifications

BrandD-Link
ModelDWC-1000
TypeWireless LAN Controller
ColorBlack
SpecificationsEthernet: 4 10/100/1000 LAN Ports, 2 10/100/1000 Option Ports*
USB: 2 USB 2.0 Ports
Console: RJ-45
Capactiy and Performance
Maximum Access Points per unit (default/upgrade): 6/24
Maximum Access Points per cluster (default/upgrade): 24/96
Concurrent Captive Portal authentication users (Wired/Wireless): 124/400
Dedicated IPSec VPN tunnels: 70
Dedicated PPTP/L2TP VPN tunnels: 25
Dedicated SSL VPN tunnels: 20
Access Point Managment:
Compatible Managed APs
-DWL-8600AP
-DWL-6600AP
-DWL-3600AP
AP Discovery & Control: Layer-2 and 3
AP Monitoring:
-AP Monitoring Managed AP
-Rogue AP
-Authenti
FeaturesManage up to 6 wireless APs, upgradable to 24 APs per controller maximum 96 APs per Peer Group (up to 4 controllers)
Robust Network Security:
Wireless Instruction Detection System (WIDS)
Rogue AP Detection & Classification
Captive Portal
WEP, WPA Personal/Enterprise, WPA2 Personal/Enterprise
Fault Tolerance:
Option ports WAN traffic failover
Outbound load balancing
*Features enabled through purchase of the VPN/Router/Firewall license upgrade.
Compatible D-Link Wireless Access Points:
DWL-8600AP (802.11a/b/g/n)
DWL-6600AP (802.11a/b/g/n)
DWL-3600AP (802.11b/g/n)
Shipping weight3.18 kg
Package size401 × 282 × 84 mm

Questions about this item

How many LAN and option ports does the DWC-1000 provide for network uplinks?

The controller includes four 10/100/1000 LAN ports and two 10/100/1000 option ports for uplink or stacking connections.

Which console interface is used for the initial CLI setup of the DWC-1000?

Connect a serial cable to the RJ-45 console port to access the command-line interface for first-time configuration.

What is the maximum number of access points supported when four controllers form a peer group?

A peer group of up to four controllers can manage a total of 96 access points, with each unit licensed for up to 24 APs.
