CyberPower CR6U61003 6U Wall Mount Enclosure Black
A 6U wall-mount metal enclosure with reversible hex-perforated door, adjustable depth from 47 mm to 516 mm, square and #12-24 mounting holes, lockable panels and 60 kg load capacity
- TypeWall Mount Enclosure
- ColorBlack
- SpecificationsOutput USB Charge Port: No Physical: Cable Access Opening Di
- Secure equipment with 60 kg stationary load capacity
- Flexible installation using 1.9 in to 20.3 in adjustable mounting depth
- Easy cable routing through 9.8 x 2.2 in top and bottom openings
- Durable metal construction with hex perforated door for airflow
- Organised rack management via numbered units and keyed-alike locks
6U Wall-Mount Enclosure

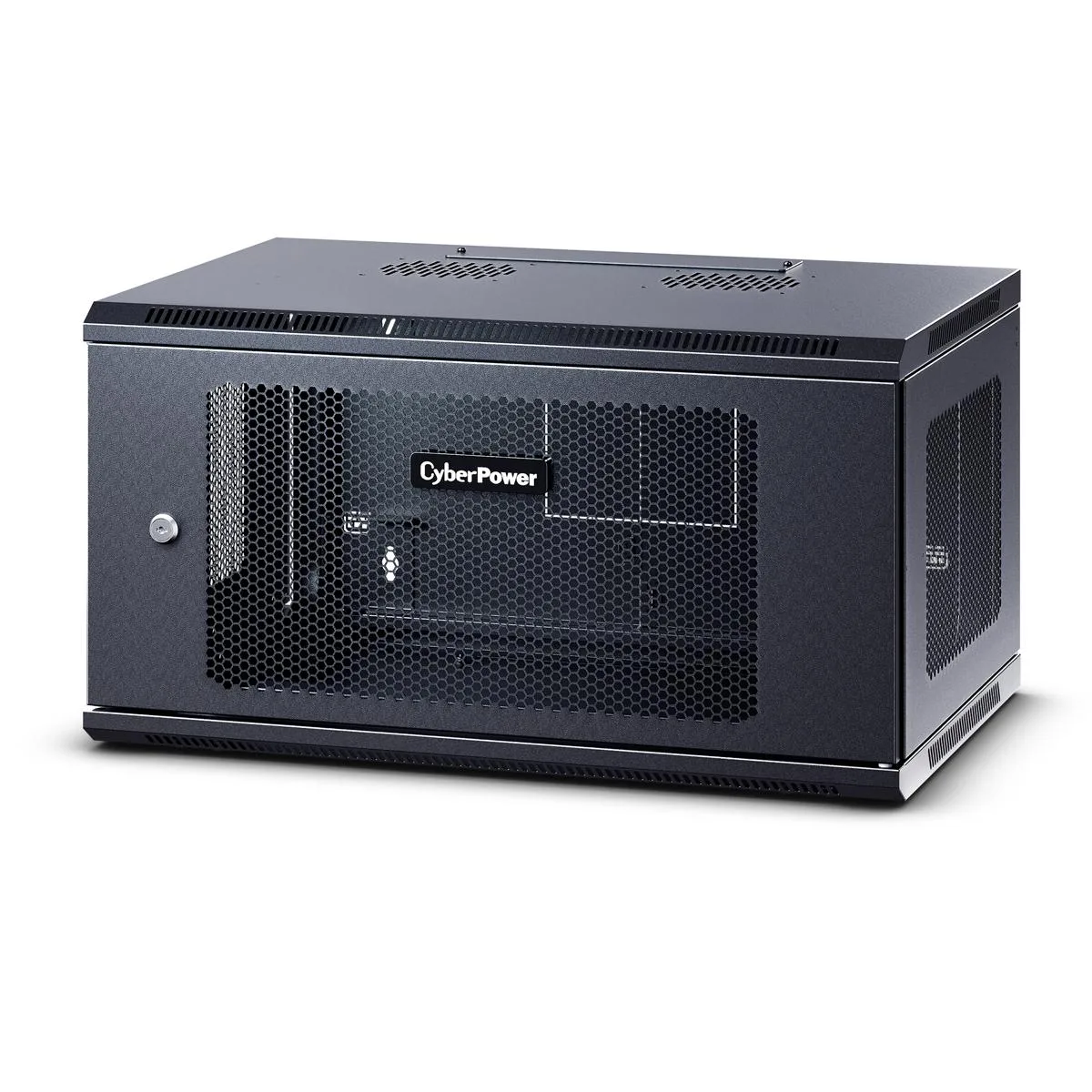

The CyberPower CR6U61003 is a 6U metal enclosure designed for wall-mounted server and network equipment. It suits installers who need a secure, fixed-depth cabinet for patch panels, switches or shallow servers in spaces where a floor-standing rack is impractical.
60 kg stationary load capacity
The cabinet supports a stationary load of 60 kg (132.3 lbs). Mounting depth adjusts from a minimum of 47 mm (1.9 in) to a maximum of 516 mm (20.3 in), with a factory default of 436.9 mm (17.2 ft). Equipment deeper than 516 mm will not fit, and the 6U height limits the number of rack units available.

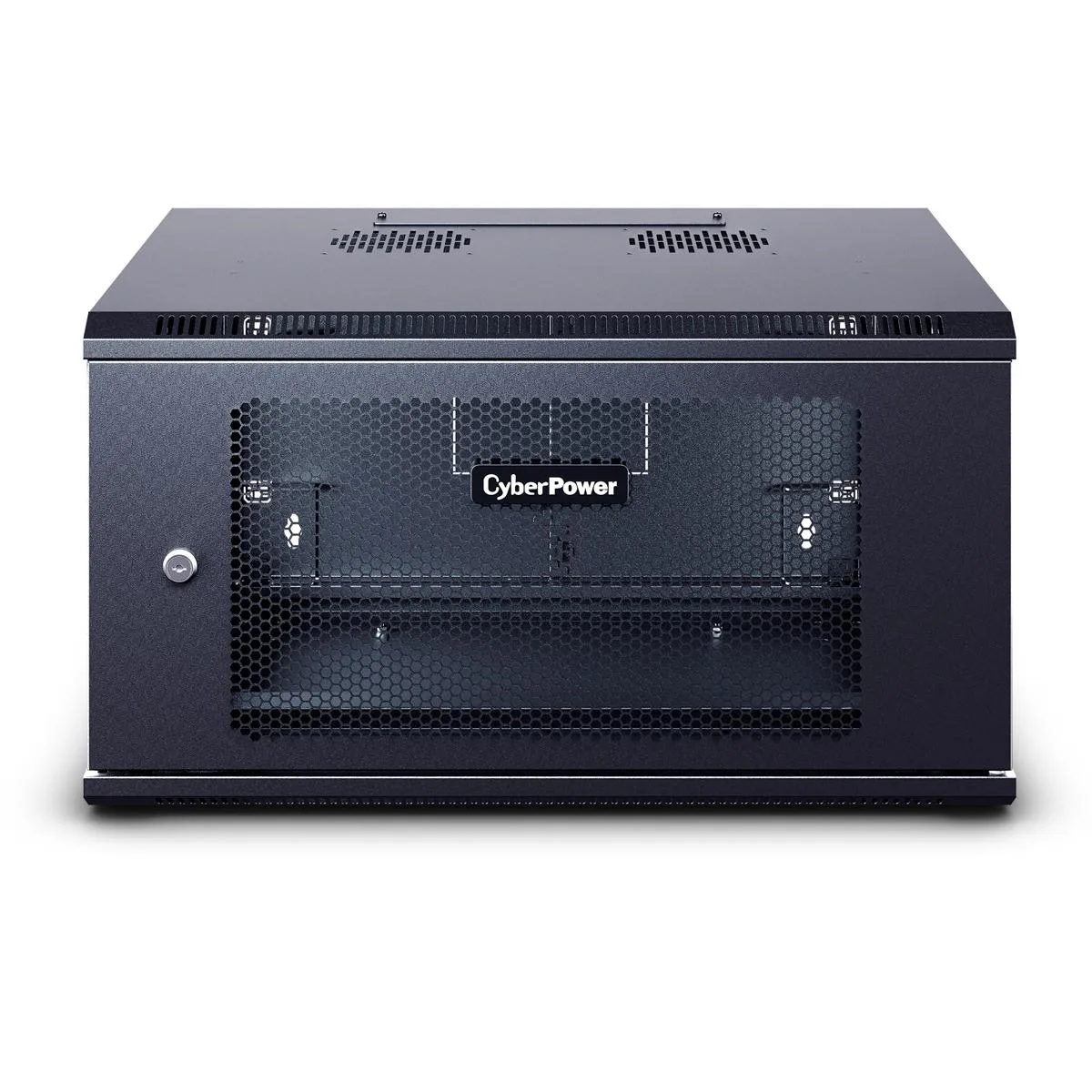

Hex-perforated metal door
A hex-perforated metal door and removable side panels are lockable and keyed alike for physical security. Square and #12-24 mounting holes accept a wide range of rack-mount hardware. Top and bottom cable openings measure 249 mm by 56 mm (9.8 in by 2.2 in) for routing. A PE grounding point is included. The unit weighs 13.47 kg (29.7 lbs) and measures 599 mm wide, 320 mm high and 599 mm deep (23.6 in × 12.6 in × 23.6 in).
Highlights
- Secure equipment with 60 kg stationary load capacity
- Flexible installation using 1.9 in to 20.3 in adjustable mounting depth
- Easy cable routing through 9.8 x 2.2 in top and bottom openings
- Durable metal construction with hex perforated door for airflow
- Organised rack management via numbered units and keyed-alike locks
Specifications
| Brand | CyberPower |
|---|---|
| Model | CR6U61003 |
| Type | Wall Mount Enclosure |
| Color | Black |
| Specifications | Output USB Charge Port: No Physical: Cable Access Opening Dimensions 9.8 x 2.2 in (249 x 56 m) Door Type: Hex Perforated Metal Door Factory Default Mounting Depth: 17.2 ft (436.9 mm) Material of Construction: Metal Max. Mounting Depth (in): 20.3 Max. Mounting Depth (mm): 516 Min. Mounting Depth (in): 1.9 Min. Mounting Depth (mm): 47 Rack Angle Mounting Hole Type: Square Mounting Holes, #12-24 Mounting Holes Rack Height: 6U Weight Capacity - stationary load (kg): 60 Weight Capacity - stationary load (lbs): 132.3 Dimensions: Physical Dimensions - (WxHxD) (cm): 59.94 x 32.0 x 59.94 (cm) |
Questions about this item
Will the 6U height and square or #12-24 mounting holes fit my existing rack-mount servers?
The enclosure provides 6U of rack space with both square and #12-24 mounting holes, so standard rack-mount equipment using either hole pattern will install directly.
How can I confirm the enclosure is properly secured and grounded after wall mounting?
Check that the hex perforated metal door locks with the keyed-alike lock, side panels are fastened, and the PE grounding point is connected to your facility earth.
Does the package include mounting hardware for the adjustable 47 mm to 516 mm depth rails, or must I buy screws separately?
The enclosure ships with the cage nuts and screws needed for the square and #12-24 rails; wall-mounting bolts for your specific wall type are not included.
