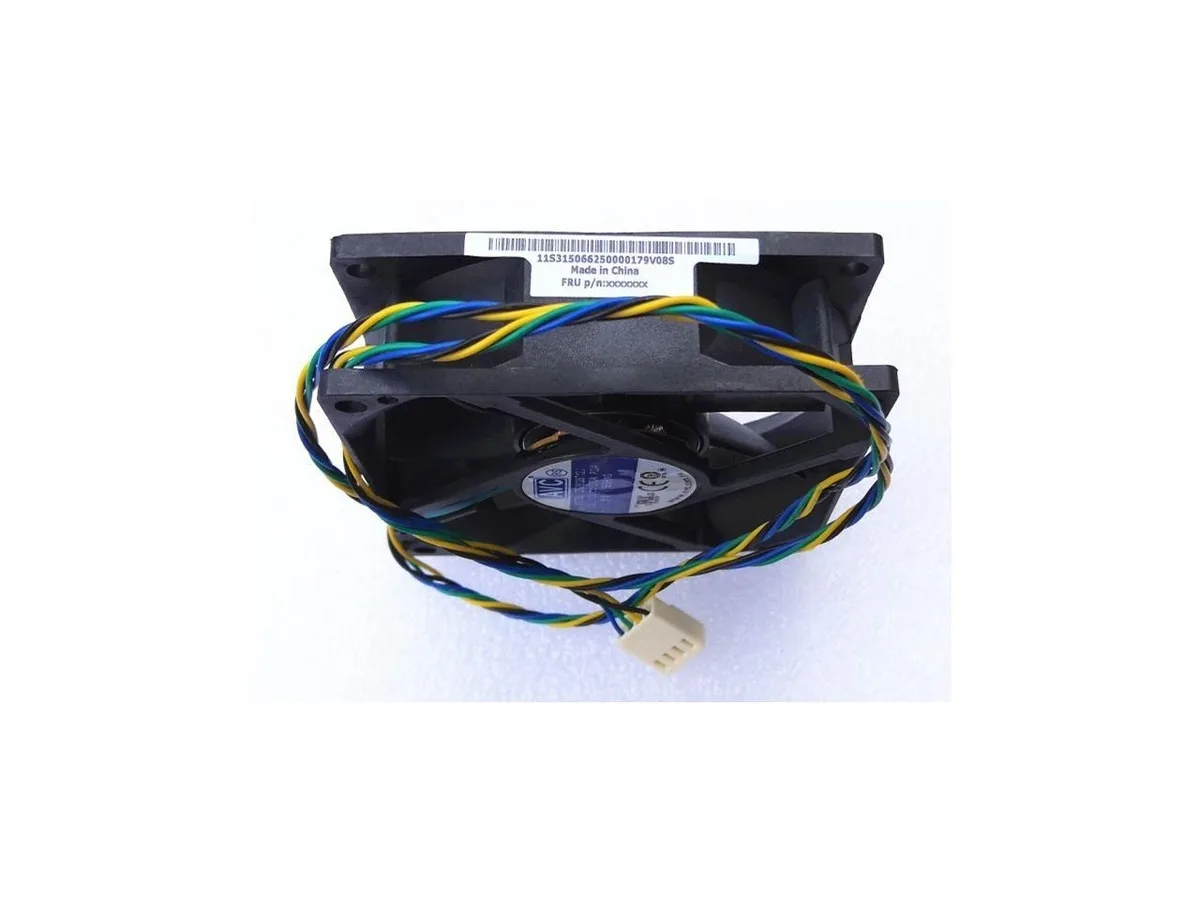

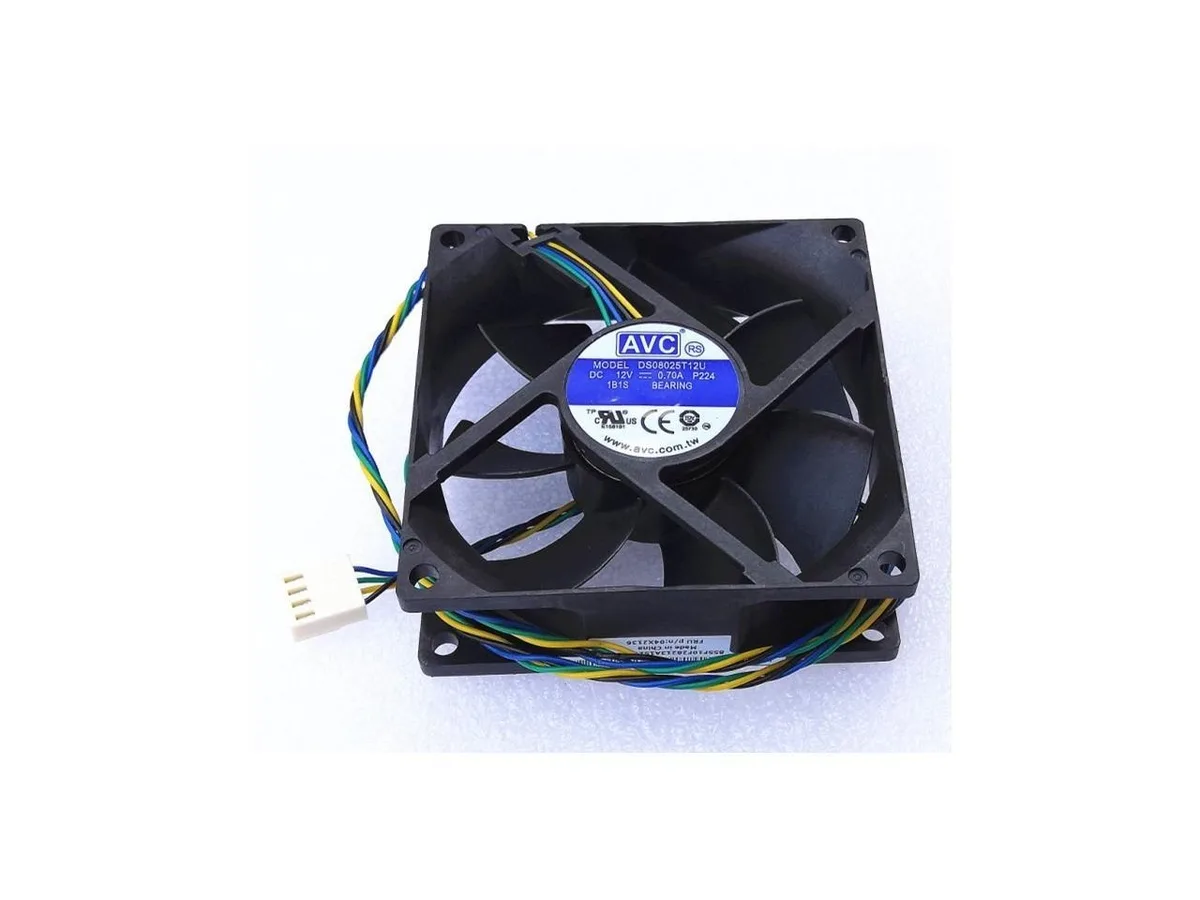

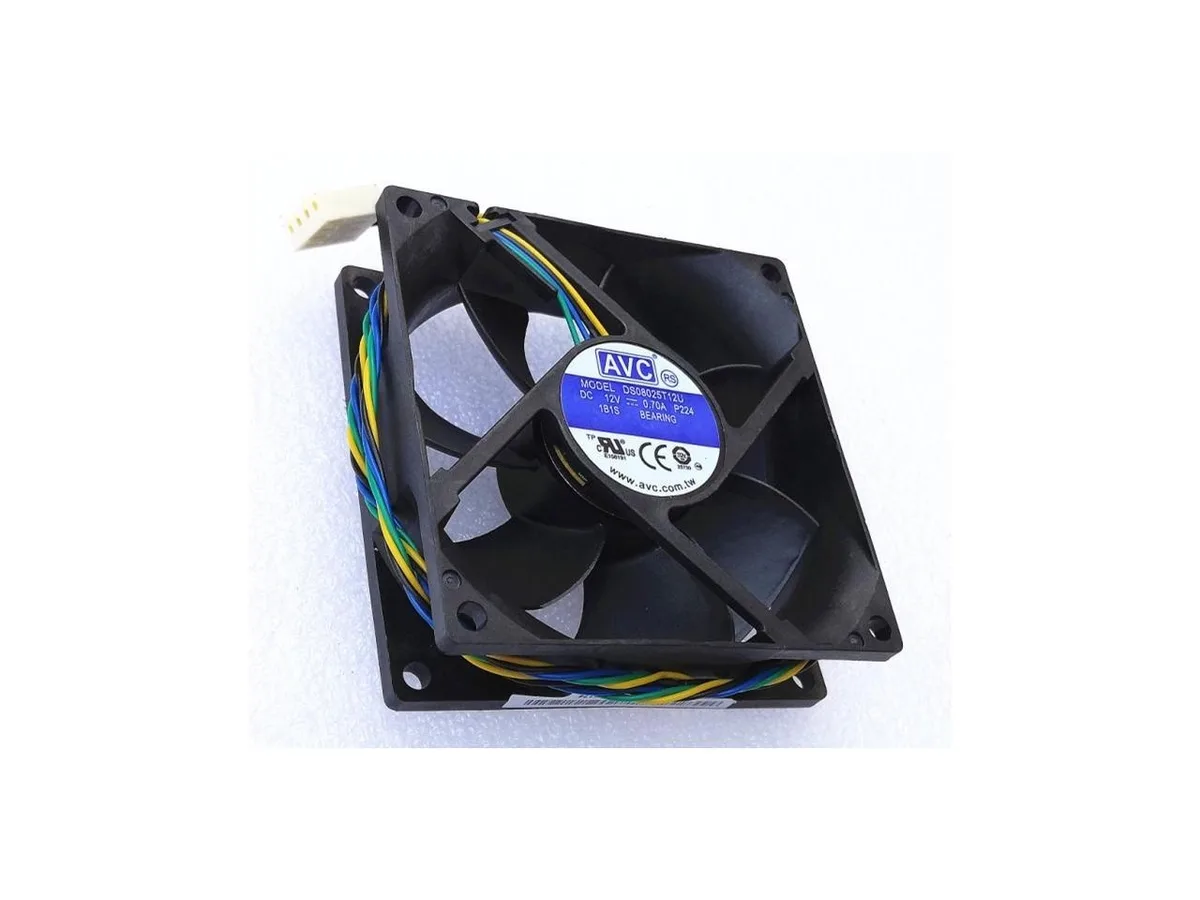

Black 80 mm square case fan 25 mm thick 4-pin connector 59 cm cable

Corn Electronics

Corn Electronics AVC DS08025T2UB P224 80 mm case fan

SKU CH-VG0E-FVJQ3

80 mm PWM case fan with single-ball bearing, 64 CFM airflow and 60 000-hour rated life

  • ColorBlack
  • LEDNon-LED
  • Wide speed range 800 to 4600 RPM for flexible cooling
  • 4-pin PWM control enables precise fan-speed regulation
  • Single ball bearing rated 60000 hours for long service life
  • Delivers 64 CFM airflow in compact 80 by 25 mm frame
  • 59 cm cable length eases routing in tight chassis

80 mm 4-pin case fan

This 80 mm by 25 mm case fan runs on 12 V and draws 0.70 A through a standard 4-pin motherboard header. It uses a single ball bearing rated for 60000 hours and spins between 800 and 4600 RPM with a 5 percent tolerance. The airflow reaches 64 CFM and the lead is 59 cm long.

Suits compact builds needing speed control

The 4-pin PWM connection lets the board regulate speed automatically, so it fits small chassis or CPU cooler replacements where quiet low-speed running matters. Buyers who want addressable lighting or a larger frame for higher static pressure should look at something else.

4-pin PWM header requirement

Speed regulation only works when the fan is plugged into a 4-pin PWM header on the motherboard or a compatible controller. On a 3-pin header the fan will run at full speed without automatic control.

Highlights

  • Wide speed range 800 to 4600 RPM for flexible cooling
  • 4-pin PWM control enables precise fan-speed regulation
  • Single ball bearing rated 60000 hours for long service life
  • Delivers 64 CFM airflow in compact 80 by 25 mm frame
  • 59 cm cable length eases routing in tight chassis

Specifications

ColorBlack
LEDNon-LED

Questions about this item

How loud and hot does the 80 mm DS08025T2UB P224 get when it runs at the top 4600 RPM all day?

At 4600 RPM the fan moves 64 CFM; the single-ball bearing is rated for 60000 hours, and the 4-pin PWM header lets the motherboard lower speed when full airflow is not needed.

My motherboard only has 3-pin headers — can I still power and control this 4-pin 12 V 0.70 A fan?

The 59 cm 4-pin connector plugs into a standard PWM header; on a 3-pin header it will run at full 12 V but speed control will not be available.

Will this 80×25 mm replacement fit the same mounting holes as the original Lenovo 8025 cooler I am keeping?

Yes — the 80 mm square frame and 25 mm thickness match the OEM 8025 footprint, so existing screw holes line up directly.
