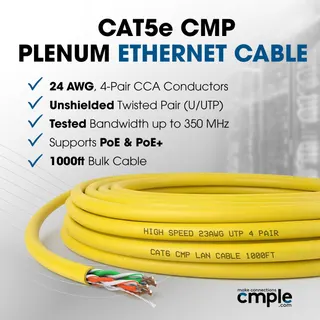

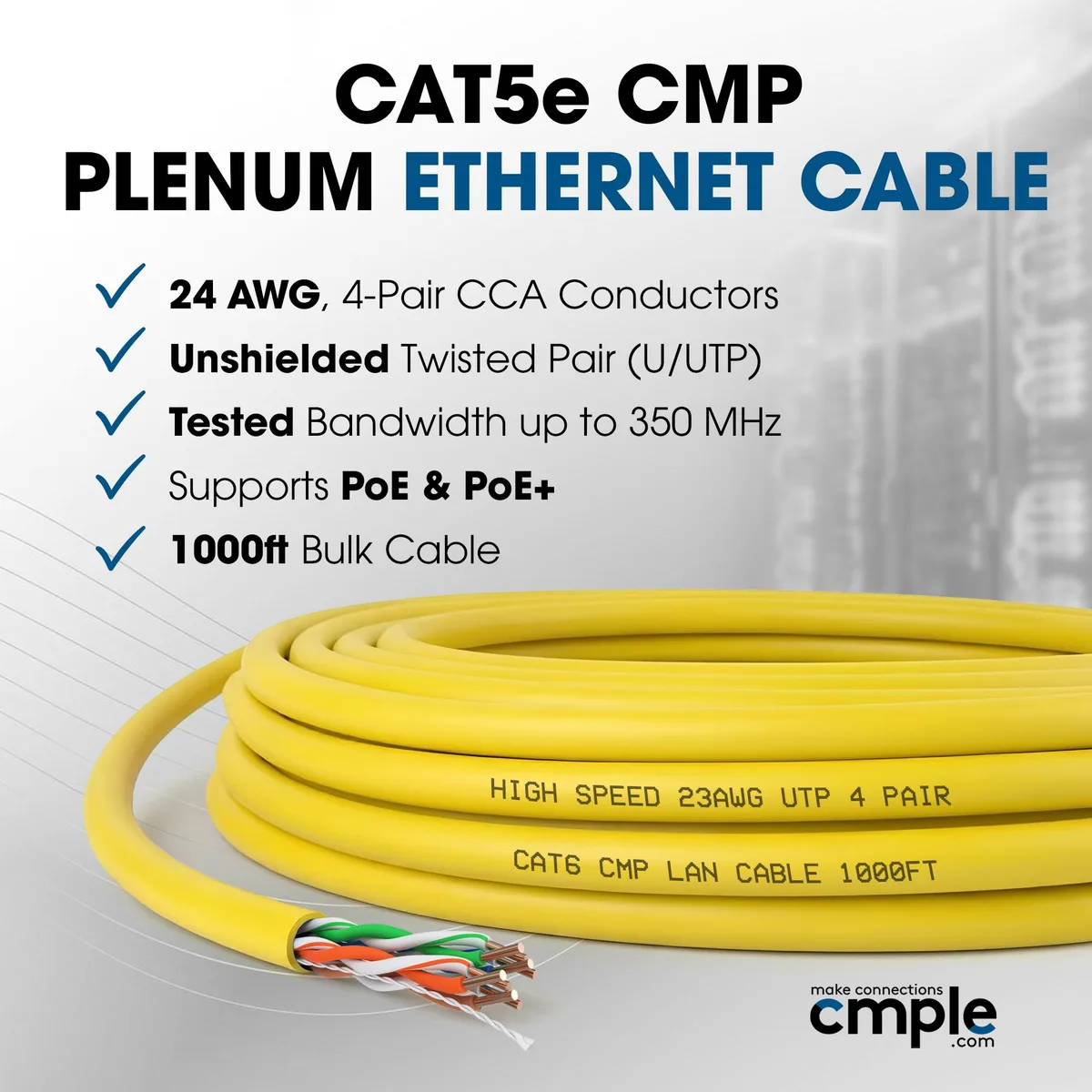

Yellow Cat5e plenum cable reel in pull-box, 1000ft

CMPLE

CMPLE Cat5e Plenum Cable 1000ft CMP Yellow 350MHz Solid UTP

SKU CH-VPTH-CX0YF

Plenum-rated Cat5e bulk cable, 1000 ft in a pull-box, 350 MHz bandwidth, solid CCA conductors for gigabit Ethernet runs

  • TypeNetwork Ethernet Cables
  • Cat5/5E
  • Connector ARJ45
  • Connector BRJ45
  • Length1000 ft.
  • ColorYellow

Color Yellow

  • Plenum-rated jacket meets fire-safety codes for airflow spaces
  • 1000 ft pull-box with length markers simplifies long runs
  • 350 MHz bandwidth supports Gigabit speeds up to 328 ft
  • Solid CCA conductors tested to reduce crosstalk
  • Backward compatible with 10/100/1000 Mbps networks

Plenum-rated Cat5e for airflow spaces

This CMP-rated Cat5e bulk cable is built for installation in plenum areas such as drop ceilings and raised floors where building codes require low-smoke, flame-retardant materials. The FRPVC jacket and FEP insulation meet ANSI/TIA and U.S. safety standards, making it suitable for commercial and residential runs that pass through air-handling spaces. It also satisfies Riser requirements for vertical runs between floors.

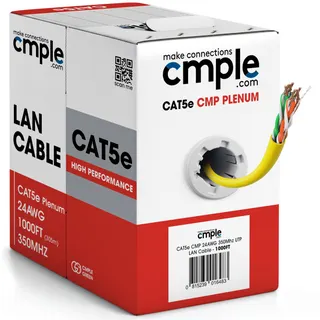

Pull-box packaging with length markers

The 1000 ft reel ships in a sturdy pull-out box designed to prevent tangles during long pulls. Sequential length markers printed along the jacket let installers measure and cut exact runs without a separate tape measure. The package contains only the bulk UTP cable; keystone jacks, RJ45 connectors and crimping tools are not included and must be sourced separately for termination.

350 MHz bandwidth and 100 m channel limit

The cable is specified to 350 MHz and supports 10 to 1000 Mbps Ethernet over the standard 328 ft (100 m) maximum channel length. IEEE 802.3bz operation at 2.5 and 5 Gbps is possible only on shorter links, so full-speed 5 GBase-T cannot be guaranteed at the 100 m limit. Unshielded construction means the cable is more susceptible to electromagnetic interference in electrically noisy environments.

Highlights

  • Plenum-rated jacket meets fire-safety codes for airflow spaces
  • 1000 ft pull-box with length markers simplifies long runs
  • 350 MHz bandwidth supports Gigabit speeds up to 328 ft
  • Solid CCA conductors tested to reduce crosstalk
  • Backward compatible with 10/100/1000 Mbps networks

Specifications

BrandCmple.com
ModelCategory 5e
TypeNetwork Ethernet Cables
Cat5/5E
Connector ARJ45
Connector BRJ45
Length1000 ft.
ColorYellow
ShieldedNo
FeaturesPlenum Cat5e Cable 1000 Feet / 305 Meters

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the CCA conductors need replacement sooner than solid copper in a permanent install?

The cable uses copper-clad aluminium conductors rated for 350 MHz bandwidth and 100 Mbps over 100 metres; CCA is standard for this plenum category and does not require scheduled replacement.

What distance limit appears first when running 1 Gigabit links continuously?

The 100 metre (328 feet) channel limit for 1000 Mbps is reached before the 350 MHz bandwidth ceiling under sustained use.

Does the FRPVC jacket and FEP insulation run hotter or draw more power than standard PVC during all-day PoE loads?

The plenum-grade FRPVC jacket and FEP insulation are designed for higher temperature operation and add no extra power draw; heat and power remain identical to standard Cat5e UTP.
