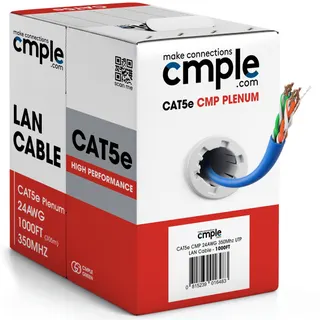

Blue Cat5e plenum cable in pull-box, 1000ft

CMPLE

CMPLE Cat5e Plenum Cable 1000ft Blue 350MHz UTP

SKU CH-E0RS-K9SP6

Plenum-rated Cat5e bulk cable, 1000 ft pull-box, 350 MHz bandwidth, solid CCA conductors for in-wall and ceiling runs

  • TypeNetwork Ethernet Cables
  • Cat5/5E
  • Connector ARJ45
  • Connector BRJ45
  • Length1000 ft.
  • ColorBlue

Color Blue

  • CMP-rated jacket approved for plenum air-handling spaces
  • 24 AWG copper-clad aluminium conductors support 350 MHz bandwidth
  • Pull-box with length markers enables tangle-free 1000 ft installation
  • Meets ANSI/TIA standards for 100 m Gigabit Ethernet links
  • Compatible with PoE devices and 2.5GBase-T over shorter runs

Plenum-Rated Cat5e Cable

CMPLE Cat5e Plenum Cable is a bulk UTP Ethernet cable supplied in a 1000ft pull-box. It carries a CMP rating for installation in plenum air spaces such as drop ceilings and raised floors, and is also suitable for riser runs between floors. The cable uses 24AWG copper-clad aluminium conductors and a blue FRPVC jacket that limits flame spread and toxic smoke. It connects with standard unshielded Cat5e keystone jacks and RJ45 connectors.

Sustained Load Performance

Over the full 328ft (100m) channel the cable supports 10 to 1000 Mbps data rates with 350 MHz bandwidth. The solid UTP construction minimises crosstalk to maintain signal integrity during continuous PoE, IP camera or mesh network traffic. At shorter distances the IEEE 802.3bz standard enables 2.5GBase-T and 5GBase-T operation, so sustained throughput scales with link length rather than bursting to a higher peak.

Cat5e Interface Limits

The Cat5e standard caps guaranteed performance at 1000 Mbps over 100 meters, so 10GbE cannot be supported regardless of cable quality. Bandwidth is specified to 350 MHz, which is above the base 100 MHz requirement but still bounds the maximum usable frequency. Installers must observe the 328ft channel limit and avoid sharp bends that could degrade the unshielded twisted pairs.

Highlights

  • CMP-rated jacket approved for plenum air-handling spaces
  • 24 AWG copper-clad aluminium conductors support 350 MHz bandwidth
  • Pull-box with length markers enables tangle-free 1000 ft installation
  • Meets ANSI/TIA standards for 100 m Gigabit Ethernet links
  • Compatible with PoE devices and 2.5GBase-T over shorter runs

Specifications

BrandCmple.com
ModelCategory 5e
TypeNetwork Ethernet Cables
Cat5/5E
Connector ARJ45
Connector BRJ45
Length1000 ft.
ColorBlue
ShieldedNo
FeaturesPlenum Cat5e Cable 1000 Feet / 305 Meters

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 350 MHz bandwidth rating change when the cable runs through a warm plenum space all day?

The cable uses FEP insulation rated for higher temperatures, so the 350 MHz bandwidth holds across the full 328 ft channel in plenum environments.

What keystone jacks or RJ45 plugs do I need to terminate this 24 AWG solid CCA cable?

Use unshielded Cat5e keystone jacks and RJ45 connectors designed for 24 AWG solid conductors; the cable is not compatible with stranded-wire plugs.

Will this Cat5e plenum cable work with my older 10 Mbps hubs and 100 Mbps switches?

Yes, it supports 10 to 1000 Mbps, so legacy 10 Mbps and 100 Mbps gear will operate normally over the full 328 ft distance.
