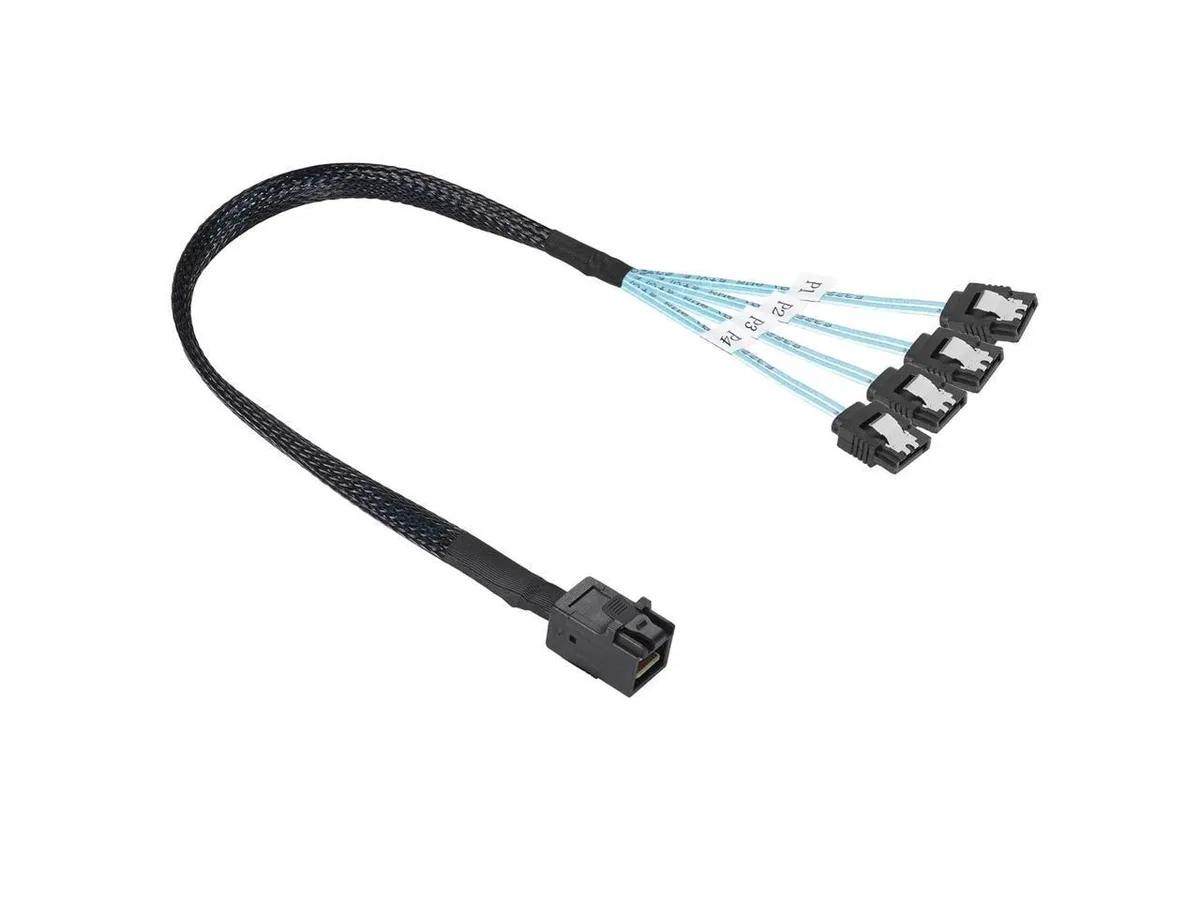

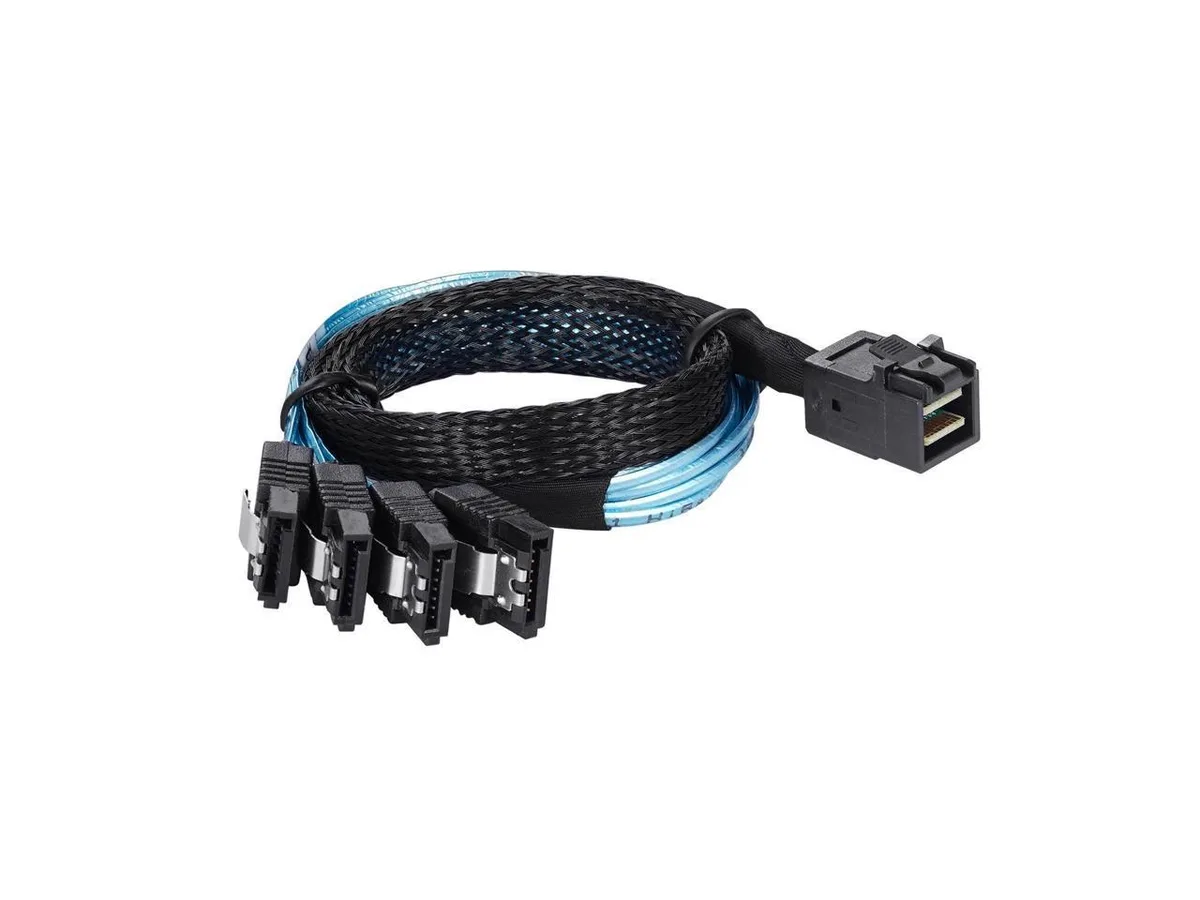

Mini SAS HD SFF-8643 connector splitting to four SATA plugs, half-covered in woven mesh sheath, .5M length

BUCIER

BUCIER SFF-8643 to 4X SATA cable .5M

SKU CH-MGZN-2X11N

Connects a 12 Gbps SFF-8643 controller to four SATA drives with strain-relief ribbon cables and latched connectors

Cable Length 0.5m

  • Connect four SATA drives to one controller via 36-pin SFF-8643
  • Supports 12 Gbps, 6 Gbps and 3 Gbps SATA speeds
  • 5 m length keeps internal routing tidy
  • Acetate cloth tape and mesh sheath protect cables from strain
  • Low-profile SATA plugs with steel latches resist accidental disconnect

BUCIER SFF-8643 to 4X SATA Cable

This 0.5 metre cable connects a 12 Gbps host bus adapter or RAID controller with an SFF-8643 port to four SATA drives. It is built for internal server or workstation storage where a high-density controller links to direct-attached SATA disks.

Capacity and headroom

The hybrid design supports both 3 Gbps and 6 Gbps SATA speeds while the controller side runs at 12 Gbps. Four drives share the single SFF-8643 link, so aggregate throughput is limited by that uplink when all drives are active.

36-pin SFF-8643 connector

The 36 pin SFF-8643 plug mates only with compatible Mini SAS HD ports on the controller. Builders whose backplane or HBA uses a different mini SAS variant cannot use this cable.

Highlights

  • Connect four SATA drives to one controller via 36-pin SFF-8643
  • Supports 12 Gbps, 6 Gbps and 3 Gbps SATA speeds
  • 5 m length keeps internal routing tidy
  • Acetate cloth tape and mesh sheath protect cables from strain
  • Low-profile SATA plugs with steel latches resist accidental disconnect

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the SFF-8643 end plug into my older 6 Gbps RAID controller?

The SFF-8643 connector is built for 12 Gbps host bus adapters and RAID controllers; it also supports 3 Gbps and 6 Gbps compatibility for migration to a 12 Gbps storage area network system.

How can I confirm each drive is linked at the correct speed after I connect the four SATA ends?

P1 to P4 markers on the cable let you identify each port; verify link speed in your controller BIOS or operating system disk utility to see 3 Gbps or 6 Gbps per drive.

Does the 0.5 m assembly include the four SATA data connectors and the 36 pin Mini SAS HD plug ready to use?

Yes, the cable has a 36 pin SFF-8643 connector on one side and four 7 pin SATA connectors on the other, with woven mesh sheath covering half the length for routing.
