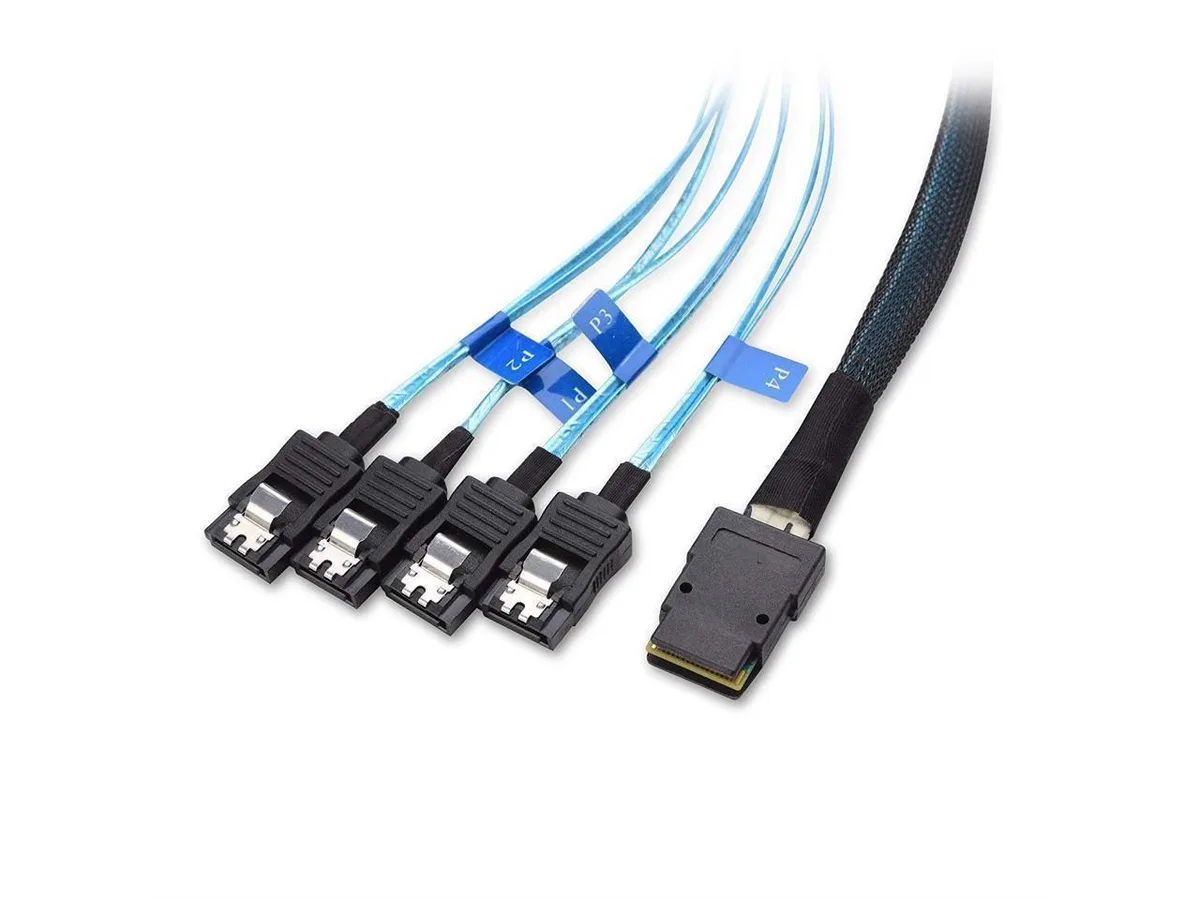

Internal Mini SAS SFF-8087 to four SATA breakout cable with woven mesh sleeve and labelled connectors

BUCIER

BUCIER Internal Mini SAS to SATA Reverse Breakout Cable SFF-8087 3.3 Feet 1.6 ft

SKU CH-F9WS-AEQ31

Connects four SATA ports to an SFF-8087 Mini SAS backplane with 3.3 Feet 1.6 ft length

Cable Length 1.6 Feet

  • Connects 4 SATA drives to one Mini SAS port
  • SFF-8087 target connector links to SAS backplane
  • Supports up to 6 Gbps per drive channel
  • Latching SATA plugs prevent accidental disconnection
  • Woven mesh sheath plus cloth tape aid routing

Connectivity Purpose

This internal Mini SAS to SATA reverse breakout cable links a motherboard or RAID controller with 7-pin SATA ports to a SAS backplane or expander using an SFF-8087 connector. It suits builders adding a drive cage to an existing SATA host or repurposing unused RAID controller ports for a multi-lane connection.

Signal Performance

The cable supports up to 6 Gbps data transfer rate per drive across four discrete SATA connectors of equal length. Low-profile connectors with stainless steel latches aim to prevent accidental disconnection and reduce vibration-related disconnects during normal operation.

Build Integration

An acetate cloth tape covers slim ribbon cables for strain relief without adding rigidity, while a woven mesh sheath protects half the length for easier routing. P1 to P4 markers simplify drive identification after installation, and the 1.6 ft equal-length tails reach devices in compact or extended layouts.

Highlights

  • Connects 4 SATA drives to one Mini SAS port
  • SFF-8087 target connector links to SAS backplane
  • Supports up to 6 Gbps per drive channel
  • Latching SATA plugs prevent accidental disconnection
  • Woven mesh sheath plus cloth tape aid routing

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I connect the SFF-8087 end to my SAS backplane and which side faces the motherboard?

Plug the SFF-8087 connector into the backplane or expander port; the four SATA 7-pin plugs marked P1–P4 attach to the motherboard or RAID card SATA ports.

What upkeep will the acetate cloth tape and woven mesh sheath need over time?

Inspect the tape and mesh periodically for abrasion; reseat the latched SATA connectors if vibration loosens them, otherwise no scheduled maintenance is required.

At what throughput does the 6 Gbps per-drive limit become the bottleneck during sustained transfers?

Each of the four lanes tops out at 6 Gbps, so combined sustained throughput cannot exceed that per-drive ceiling.
