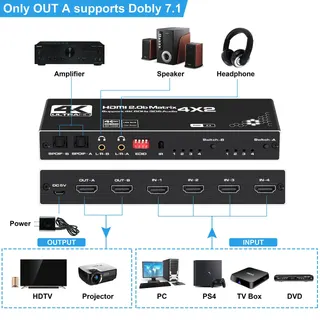

Black rectangular box with four HDMI inputs and two HDMI outputs plus audio ports

BUCIER

BUCIER 4x2 HDMI Matrix Switch 4K@30Hz 2 SPDIF 3.5mm Audio Out IR Remote

SKU CH-F5AS-1KRCW

Routes four HDMI sources to two displays with independent audio extraction via optical and 3.5 mm outputs at up to 4K 30 Hz

  • TypeHDMI
  • Changer TypeHDMI
  • Color4x2 HDMI Matrix
  • Ports6
  • Cable Length1
  • Input Connector6
  • Routes four sources to two displays independently
  • Extracts audio via dual SPDIF and 3.5 mm ports
  • Handles 4K at 30 Hz with 12-bit deep colour
  • Supports HDCP 2.2 and 3D video formats
  • Includes IR remote and settable EDID for compatibility

4x2 HDMI Matrix Switch

This BUCIER matrix routes four HDMI sources to two independent displays. Each output can show the same or a different source, making it suitable for multi-room home theatres, classrooms or digital-signage installations. The unit handles 3D signals and deep colour up to 12-bit per channel. Settable EDID switches improve compatibility with varied source and sink devices.

4K@30Hz video headroom

Maximum supported resolution is 3840x2160 at 30 Hz with a 3.4 Gbps per lane data rate and 340 MHz TMDS clock. Content at 1080p60 or 4K60 exceeds the available bandwidth and will not pass through. HDCP 2.2 protection is supported for protected streaming material. The switch tops out at 30 Hz for 4K, so high-refresh gaming or 4K60 video sources are not accommodated.

Dual audio extraction paths

Every input can be de-embedded to both a Toslink optical port and a 3.5 mm stereo jack simultaneously. Supported formats include LPCM, Dolby and DTS 5.1. The bundle supplies a 5 V 1 A power adapter, an IR remote for source selection and a user manual. No HDMI cables are included, so buyers must provide their own interconnects.

Highlights

  • Routes four sources to two displays independently
  • Extracts audio via dual SPDIF and 3.5 mm ports
  • Handles 4K at 30 Hz with 12-bit deep colour
  • Supports HDCP 2.2 and 3D video formats
  • Includes IR remote and settable EDID for compatibility

Specifications

BrandBUCIER
Model4K@60Hz
Part NumberAODENER
TypeHDMI
Changer TypeHDMI
Color4x2 HDMI Matrix
Ports6
Cable Length1
Input Connector6
Output ConnectorFemale-to-Female
Dimensions6.0 in x 8.2 in x 1.0 in
Weight1.26 kilograms

Questions about this item

Will the 4K@30Hz matrix pass HDR and HDCP 2.2 from my PS4 Pro to an older 1080p projector on the second HDMI output?

Yes, the switch supports HDR and HDCP 2.2 on all four inputs and both HDMI outputs, so a PS4 Pro can feed HDR to one display while the second output shows the same or different content at 1080p.

How do I confirm the 3.4 Gbps TMDS link is active after connecting my sources and displays?

Power the unit with the included 5 V/1 A adapter, select an input via the IR remote or front panel, and verify the connected display reports 3840x2160 at 30 Hz with deep colour (12-bit per channel) in its on-screen information menu.

Which cables and accessories are included, and what must I provide separately?

The box contains the 4x2 matrix, a 5 V/1 A power adaptor, an IR remote control and a user manual; you must supply four HDMI source cables, two HDMI display cables and any Toslink or 3.5 mm audio cables you wish to use.
