Small metal cylinder with silver XLR socket on one end and BNC socket on the other

Boxwave

Boxwave XLR 3 Pin Female to BNC Female Audio Adapter

SKU CH-ANNE-C930P

Connects XLR 3-pin female to BNC female for analog audio and video signal conversion with shielded metal housing

  • TypeAdapters
  • Connect XLR gear to BNC devices with a simple female-to-female adapter
  • Metal housing shields signals from EMI and RFI for clean transmission
  • Unbalanced wiring links XLR pins 1 and 3 to BNC shield and pin 2 to centre conductor
  • Works with microphones, mixers, amplifiers and RF or broadcast equipment
  • Zinc alloy body with gold-plated contacts resists wear in demanding setups

XLR 3 Pin Female to BNC Female Adapter

This passive adapter converts a male XLR 3-pin connector to a male BNC connector. It is designed for analog audio and video signal paths in studio, broadcast and RF environments. The metal shell provides EMI/RFI shielding for signal integrity. The unit is supplied as a single piece.

Check connector gender and wiring before ordering

Your source device must present a male XLR 3-pin plug and your destination device a male BNC plug. The adapter uses an unbalanced wiring scheme: XLR pins 1 and 3 join the BNC shield while pin 2 carries signal to the centre conductor. Verify that this pin-out matches the equipment you intend to link.

Suits engineers joining XLR

Installers needing a compact, shielded gender-changer for analog coaxial runs will find it fit for purpose. It is not for users who require balanced-to-balanced conversion, digital AES/EBU transmission or a bulk pack for large projects. Buyers needing those features should look at alternative adapter types.

Highlights

  • Connect XLR gear to BNC devices with a simple female-to-female adapter
  • Metal housing shields signals from EMI and RFI for clean transmission
  • Unbalanced wiring links XLR pins 1 and 3 to BNC shield and pin 2 to centre conductor
  • Works with microphones, mixers, amplifiers and RF or broadcast equipment
  • Zinc alloy body with gold-plated contacts resists wear in demanding setups

Specifications

TypeAdapters

Questions about this item

What connectors and quantity come in the single pack, and are any cables included?

The pack contains one female-to-female adapter with an XLR 3-pin socket on one end and a BNC socket on the other. No cables are included.

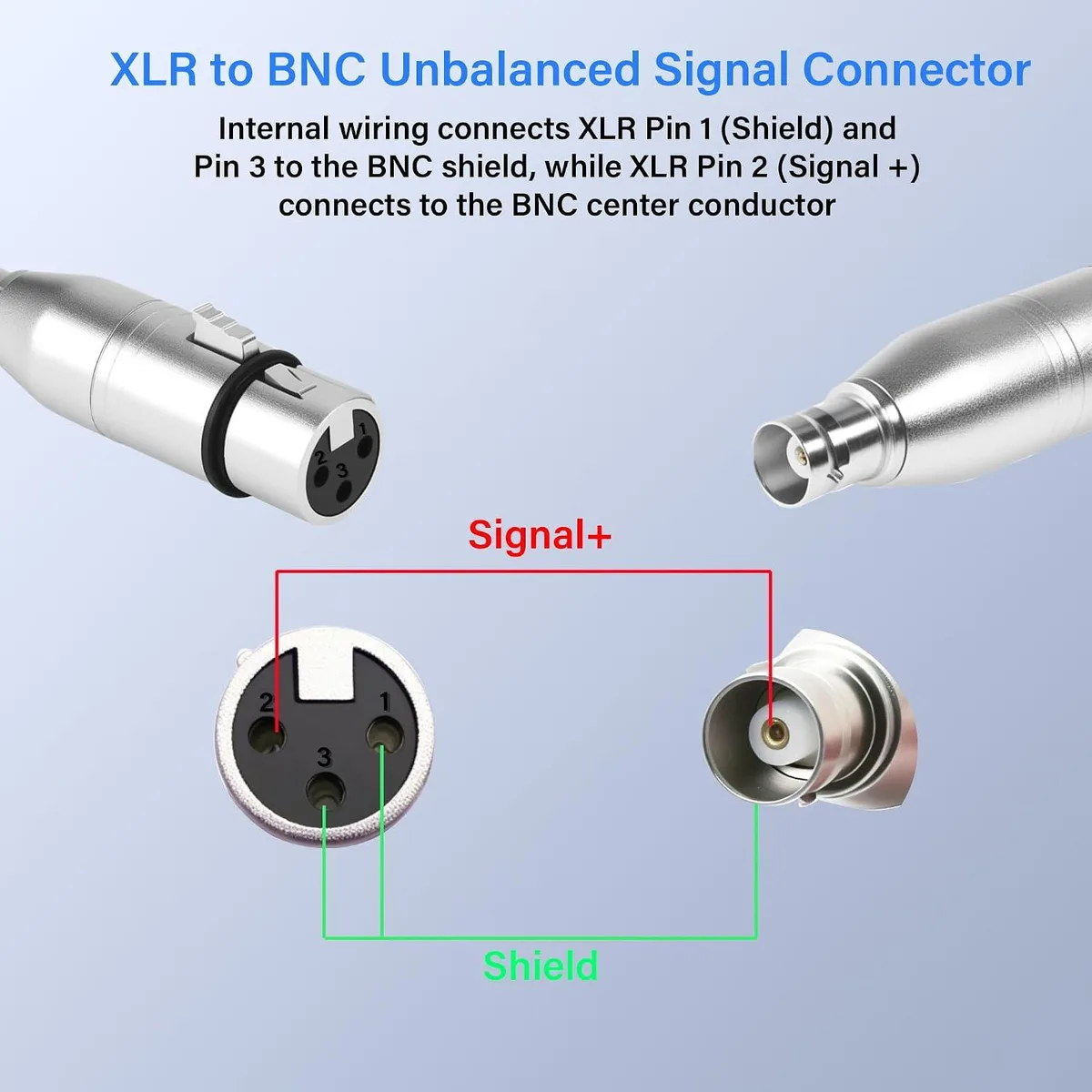

How does the unbalanced wiring map the XLR pins to the BNC connector?

XLR pin 1 (shield) and pin 3 connect to the BNC shield, while XLR pin 2 (signal +) connects to the BNC centre conductor.

What level of EMI/RFI shielding does the metal housing provide for analog audio and video signals?

The zinc-alloy die-cast shell with gold-plated contacts gives continuous shielding for both high- and low-frequency analog signals.
