Small square metal box with BNC and RJ45 ports, matte finish

Bluecctv

Bluecctv BL-EV01AT 1Ch Active Video Transmitter 12V DC

SKU CH-D9ZR-EK3QD

Transmits one video channel over UTP cable up to 6 MHz with 60 dB common-mode rejection and 6 kV transient protection

  • Transmits video up to 6 MHz bandwidth over UTP cable
  • Rejects common-mode noise at 60 dB from 15 KHz to 6 MHz
  • Protects against 6 kV transients per IEC 61000-4-5
  • Runs on 12-24 V DC drawing under 80 mA
  • Compact 3.2" x 3.2" x 1.1" enclosure weighs 0.15 lb

1-Channel Active Video Transmitter

The Bluecctv BL-EV01AT is a single-channel active video transmitter designed for CCTV installations. It sends analogue video signals over unshielded twisted-pair cabling such as 24AWG CAT5 or higher. The unit accepts 12 V to 24 V AC or DC power and draws less than 80 mA.

Installation uses screw-terminal or BNC connections

Wiring follows the 100 Ω UTP and 75 Ω coaxial impedance specifications. Differential-mode rejection reaches 60 dB from 15 kHz to 6 MHz for noise immunity. Transient protection is rated at 6 kV to IEC 61000-4-5. The compact 3.2 x 3.2 x 1.1 inch enclosure weighs 0.15 lb and fits in tight junction boxes.

Suits installers extending analogue cameras over

The single channel limits use to one camera per transmitter. Sites requiring multi-camera distribution or IP-based transmission should consider alternative equipment. The DC loop resistance of 18 Ω per 100 m and 62 pF per metre capacitance set practical cable-length boundaries.

Highlights

  • Transmits video up to 6 MHz bandwidth over UTP cable
  • Rejects common-mode noise at 60 dB from 15 KHz to 6 MHz
  • Protects against 6 kV transients per IEC 61000-4-5
  • Runs on 12-24 V DC drawing under 80 mA
  • Compact 3.2" x 3.2" x 1.1" enclosure weighs 0.15 lb

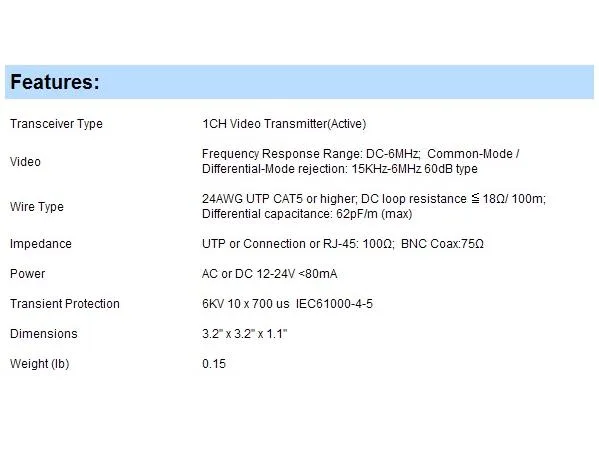

Specifications

BrandBluecctv
ModelBL-EV01AT

Questions about this item

How can I verify the BL-EV01AT is transmitting video correctly after installation?

Check for a stable picture at the receiver; the active transmitter supports a DC-6 MHz frequency response and provides 60 dB common-mode rejection from 15 kHz to 6 MHz.

What comes with the BL-EV01AT and what must I source separately?

The unit itself is supplied; you must provide 24 AWG UTP CAT5 or higher cable, a 12-24 V AC or DC power source capable of 80 mA, and BNC coaxial connectors for the 75 Ω video link.

Which version of the BL-EV01AT should I choose for a single-camera run over UTP?

The BL-EV01AT is a single-channel active video transmitter designed for one camera over 100 Ω UTP with 6 kV transient protection to IEC 61000-4-5.
