Small rectangular network box with five RJ45 ports on one face

visiPower

visiPower 4-Port PoE Extender 10/100M Surveillance Security System

SKU CH-MCEN-066HY

Four-port PoE extender adds 120 metres of Ethernet and power to IP cameras or access points from a single 25.5 W input

  • StandardsIEEE 802.3/3u, IEEE 802.3af/at
  • Network Management TypeUnmanaged
  • PoEYes
  • Extends PoE data and power up to 120 metres over Cat5 cable
  • Four powered RJ45 ports deliver up to 15.4 W each from a single PoE+ input
  • Total 25.5 W PoE+ input budget with 24 W available for connected devices
  • Plug-and-play unmanaged operation requires no configuration
  • IEEE 802.3af/at compliant with automatic device protection

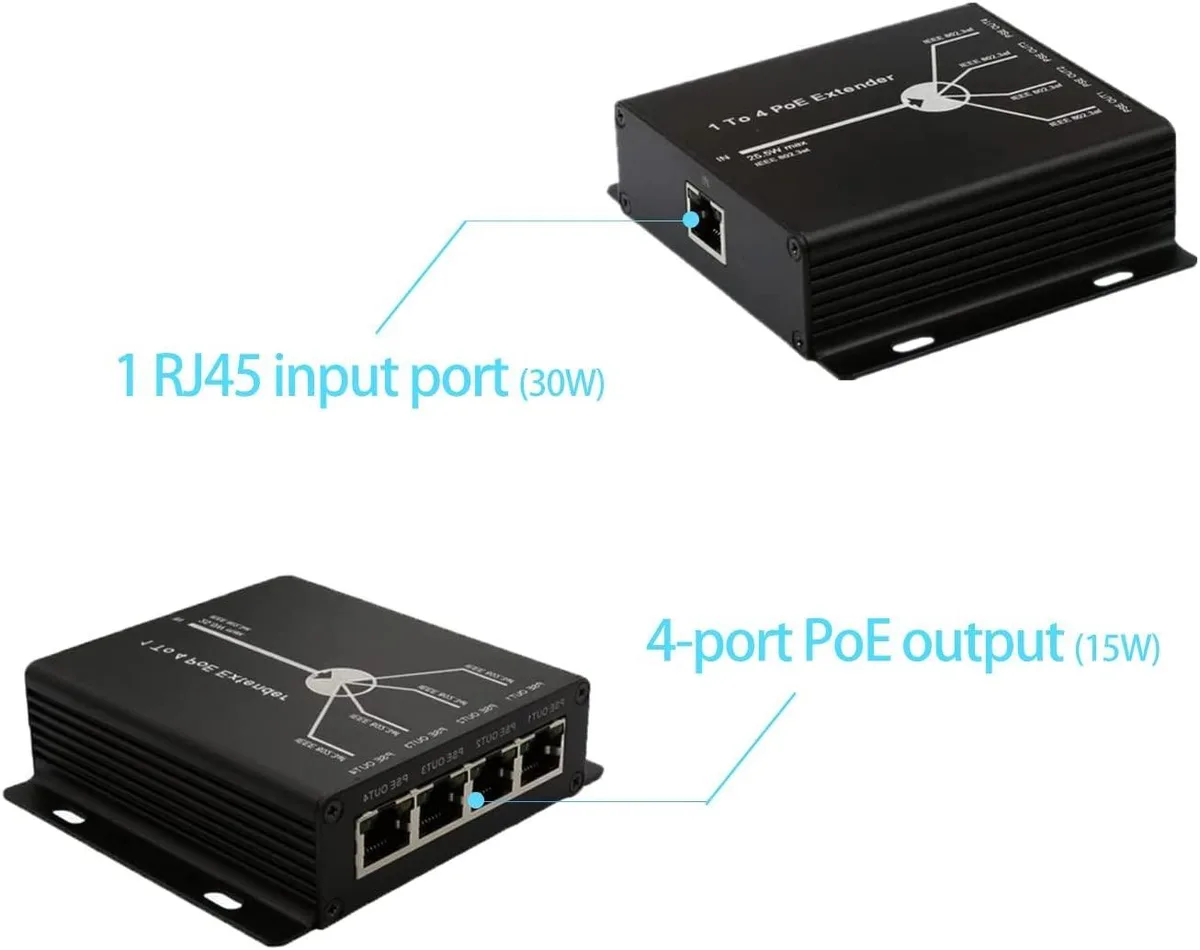

4-Port PoE Extender

The visiPower 4-Port PoE Extender is an unmanaged network device that receives power and data over a single PoE input and distributes it to four PoE output ports. It complies with IEEE 802.3af/at standards and operates at 10/100M speeds. The unit requires no configuration and uses store-and-forward switching with a 400Mbps capacity.

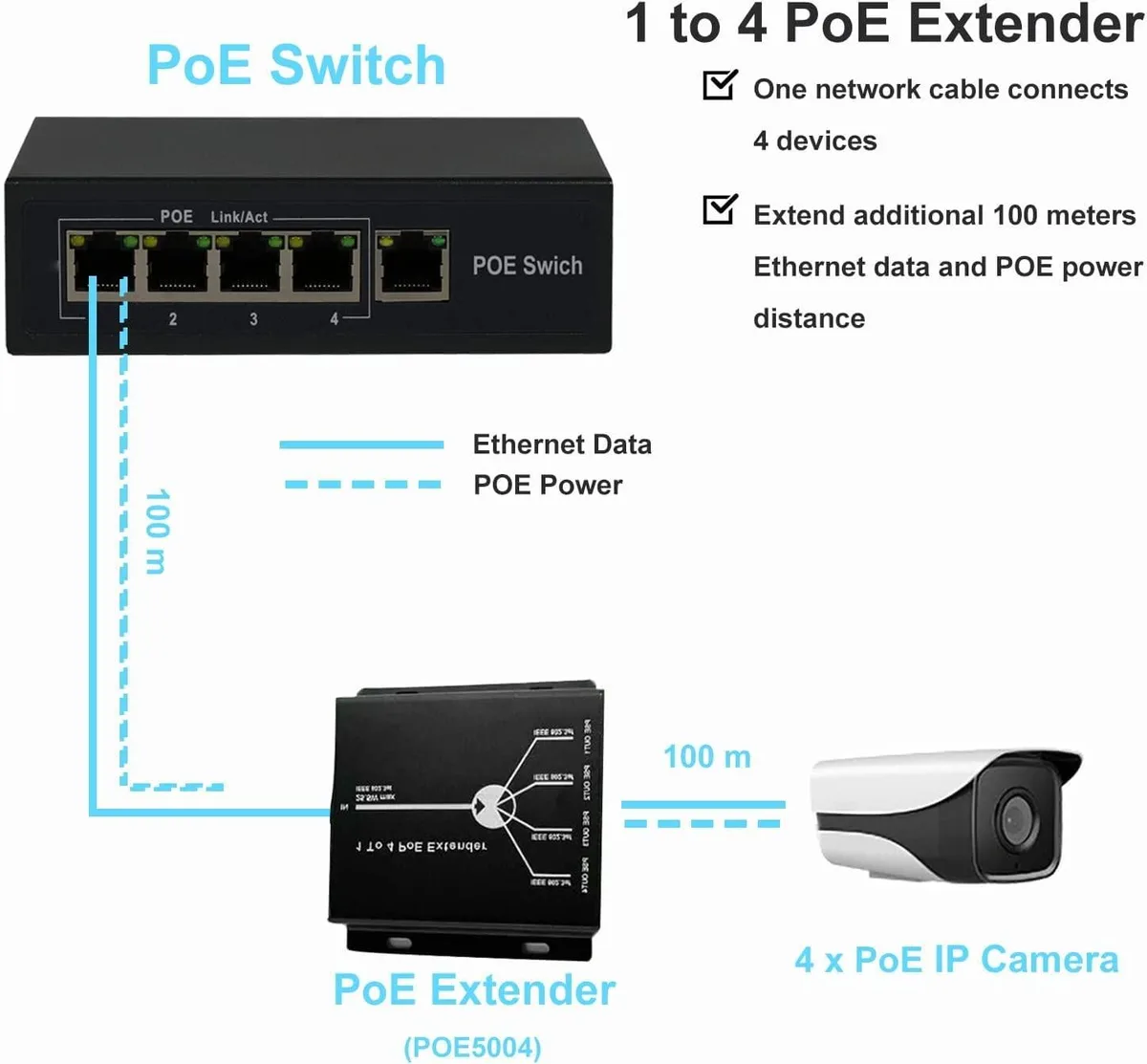

Installers extending IP camera runs

This extender suits installers who need to push PoE-powered devices such as IP cameras, access points or IP telephones beyond standard cable limits where no local power outlet exists. It is not intended for networks requiring gigabit throughput, managed switching features, or passive PoE equipment that does not follow 802.3af/at negotiation.

25.5 W input budget across four ports

The device accepts up to 25.5 W on its PoE input and can deliver a maximum of 15.4 W on any single output port, though the total output across all four ports must stay under 24 W. It reliably extends both data and power up to 120 m over Cat5 or better UTP cable, but cannot power four 15.4 W devices simultaneously.

Highlights

  • Extends PoE data and power up to 120 metres over Cat5 cable
  • Four powered RJ45 ports deliver up to 15.4 W each from a single PoE+ input
  • Total 25.5 W PoE+ input budget with 24 W available for connected devices
  • Plug-and-play unmanaged operation requires no configuration
  • IEEE 802.3af/at compliant with automatic device protection

Specifications

StandardsIEEE 802.3/3u, IEEE 802.3af/at
Network Management TypeUnmanaged
PoEYes

Questions about this item

What PoE standard must my existing switch or injector support to power this extender?

The extender requires an IEEE 802.3at (PoE+) source delivering up to 25.5 W on its single input port.

Can I connect legacy 10 Mbps cameras to the four output ports without speed issues?

Yes, each port negotiates 10/100BASE-TX so older 10 Mbps devices work alongside 100 Mbps gear.

How do I confirm the extender is forwarding both data and power to all connected cameras after installation?

Link/activity LEDs on each RJ45 port show live Ethernet traffic, and powered devices will boot normally when receiving up to 15.4 W per port within the 24 W total budget.
