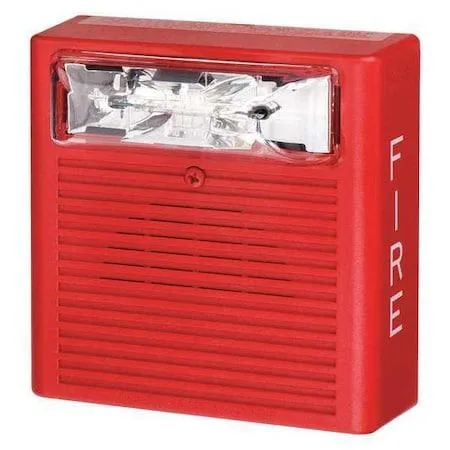

Red wall-mounted horn strobe with clear polycarbonate lens and plastic housing

Eaton

Eaton Horn Strobe Red 24VDC 99dB 75CP 0.480A Wall Mount

SKU CH-V1QA-KS59J

Wall-mount horn strobe delivers 99 dB continuous or pulsed tone and 75 candela xenon flash at 24 VDC for indoor and outdoor alerting

  • TypeTraffic & Parking Lot
  • Loud 99 dB horn alerts occupants clearly
  • Bright 75 CP xenon strobe provides strong visual signal
  • Operates on standard 24 VDC power supply
  • Draws only 0.480 A for efficient installation
  • Rated for -40 °F to 150 °F indoor and outdoor use

Eaton Horn Strobe for 24 VDC systems

The Eaton CN125716 is a wall-mounted horn strobe that combines a 99 dB audible alarm with a 75 candela xenon strobe. It operates on 24 VDC and draws 0.480 A, making it suitable for indoor and outdoor fire or security notification. The red plastic housing and clear polycarbonate lens are rated for temperatures from -40 to 150 degrees F.

Voltage and current draw define compatibility

This device requires a 24 VDC power source capable of supplying 0.480 A per unit. The sound pattern is selectable between continuous and pulse tones, and the strobe flashes at 60 flashes per minute. Installers must verify that the control panel can support the total current load of all connected devices on the circuit.

Wall-mount hardware simplifies installation

The unit includes a mounting base designed for standard wall boxes, allowing direct surface attachment at a 6 inch height and width. The xenon lamp and polycarbonate lens are sealed for outdoor use, eliminating the need for separate weatherproof enclosures. No additional programming tools or software are required for basic operation.

Highlights

  • Loud 99 dB horn alerts occupants clearly
  • Bright 75 CP xenon strobe provides strong visual signal
  • Operates on standard 24 VDC power supply
  • Draws only 0.480 A for efficient installation
  • Rated for -40 °F to 150 °F indoor and outdoor use

Specifications

BrandEATON
TypeTraffic & Parking Lot

Questions about this item

How loud is the 99dB horn when it is installed on a wall?

At 99dB the horn delivers a continuous or pulsed tone that meets typical outdoor signalling requirements for fire and security systems.

What does the 24VDC rating mean for wiring and power supply selection?

The device draws 0.480A at 24VDC, so the supply and cable must support that current continuously without excessive voltage drop.

What wall space and mounting hardware does the 6-inch square housing need?

The unit measures 6 inches high, 6 inches wide and 3 inches deep, and mounts directly to a standard wall box with its integrated bracket.
