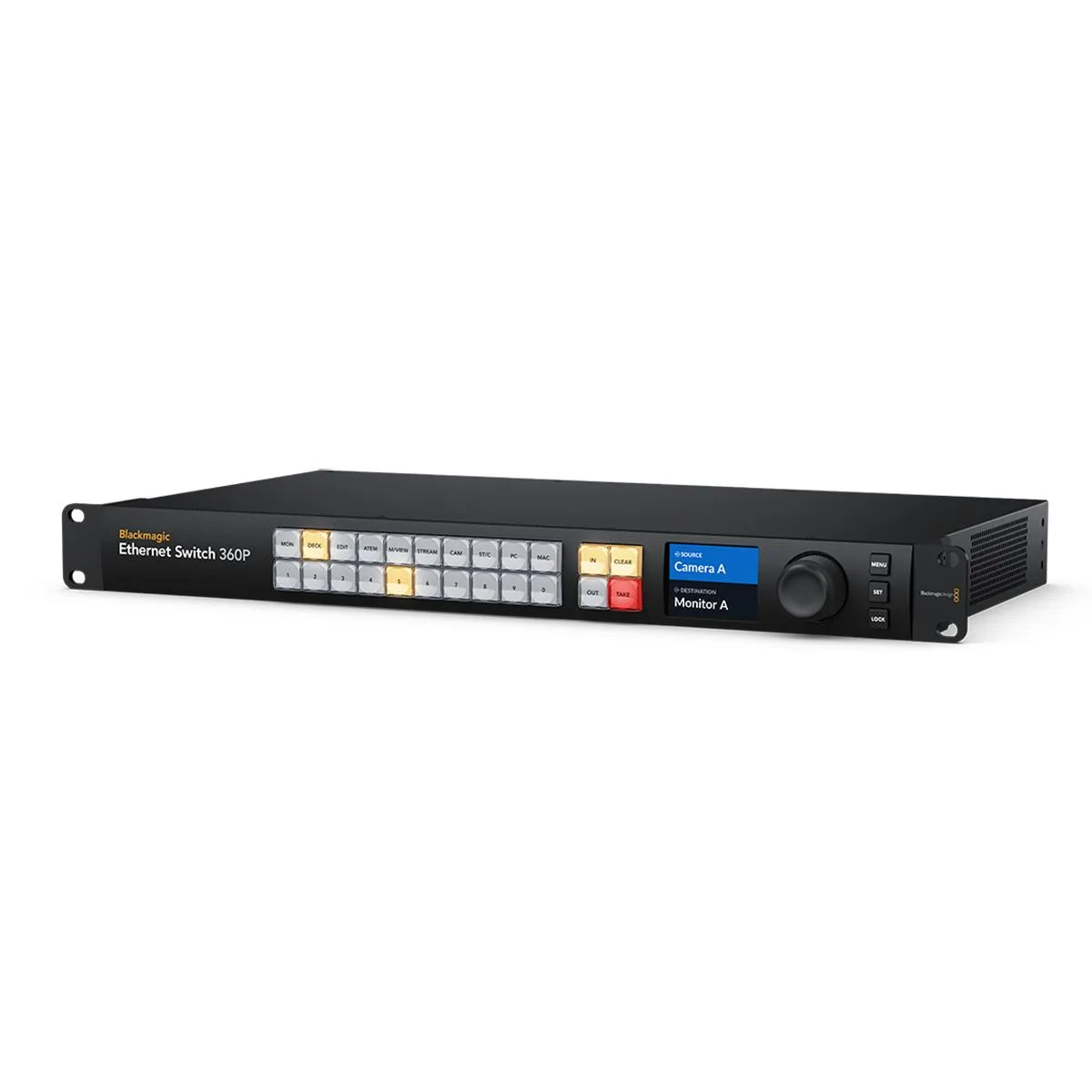

Black rectangular rack-mount switch with front 2.2-inch color display, 24 buttons, search dial, SDI and HDMI monitor outputs

Blackmagic Design Pty. Ltd.

Blackmagic Design Ethernet Switch 360P network switch

SKU CH-5WJV-VA43M

A 16-port 10Gb/s and 2-port 100Gb/s switch with front-panel routing controls for SMPTE-2110 IP video workflows

  • 16x 10Gb/s RJ-45 plus 2x 100Gb/s QSFP ports deliver high bandwidth for SMPTE-2110 IP video
  • Front SDI and HDMI monitor outputs show device name, connections and activity for real-time network visibility

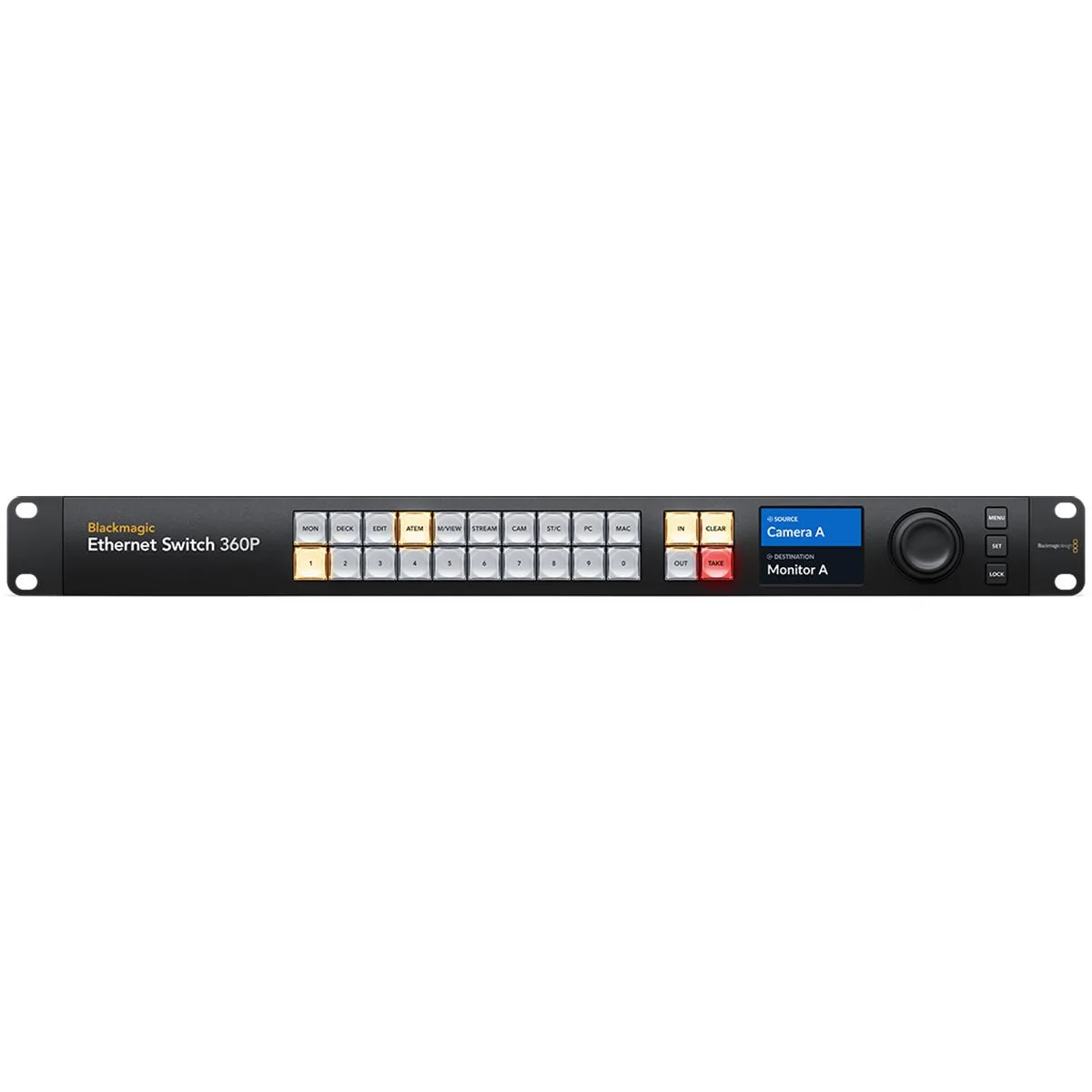

  • 24 buttons, search dial and 2.2-inch colour display give local control of video and menu settings
  • IEEE 1588-2008 PTP v2, ST 2059-1/2 and NMOS IS-04/IS-05 support ensures smooth integration in professional IP video workflows

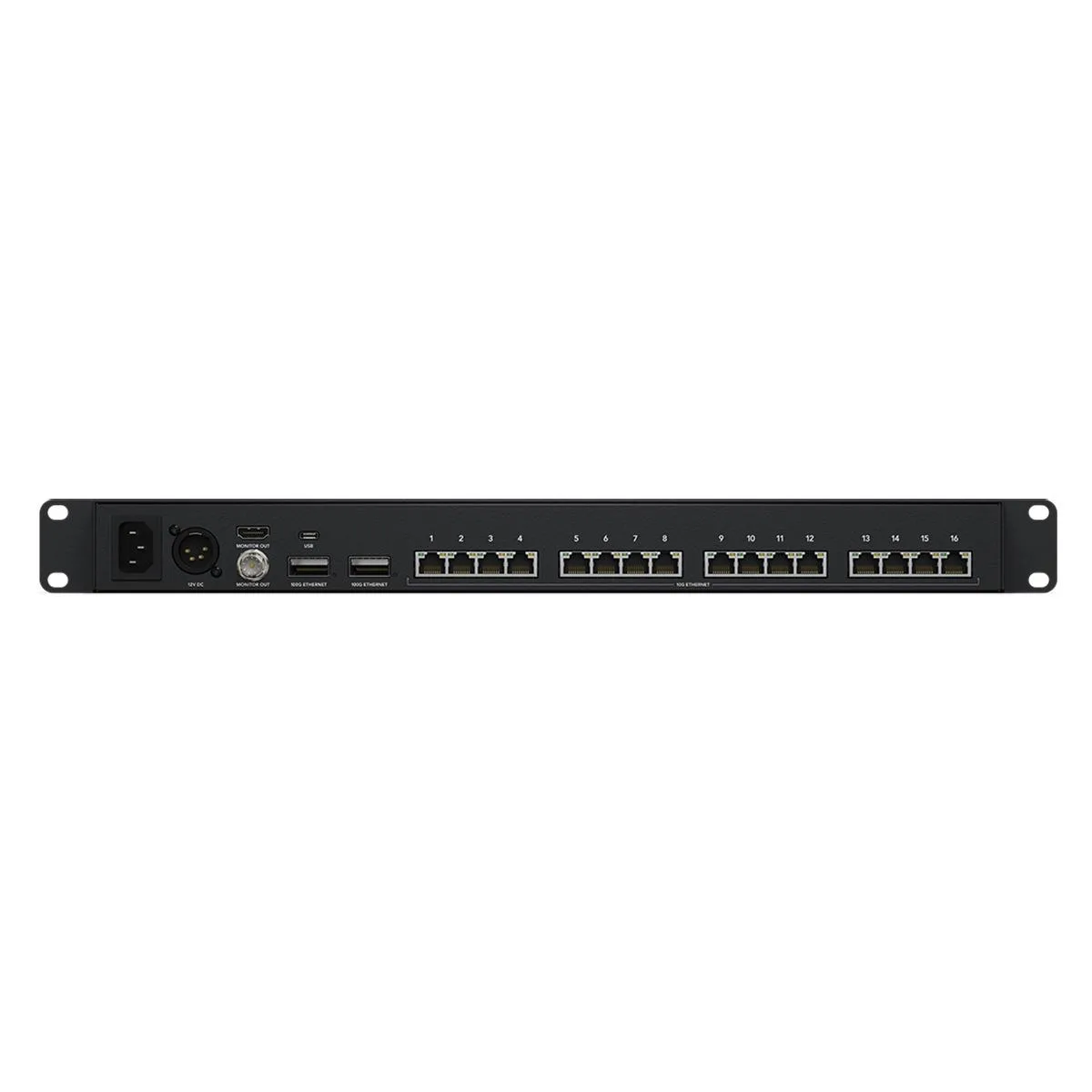

  • Rear-mounted Ethernet connections align with broadcast equipment ports for tidy cable management

Professional IP Video Switch

The Blackmagic Design Ethernet Switch 360P is a 1U rack-mount network switch built for SMPTE-2110 broadcast workflows. It provides sixteen 10Gb/s RJ-45 ports and two 100Gb/s QSFP connectors with all connections at the rear. An integrated front control panel with a 2.2-inch display and 24 buttons enables direct video routing without external IT infrastructure.

Studios needing integrated routing

This switch suits broadcast facilities that want to manage IP multicasting and monitor SDI or HDMI signals directly from the hardware panel. It supports PTP, NMOS IS-04/IS-05 and BCP standards for professional synchronization. Facilities requiring only basic data switching without video routing, monitoring outputs or front-panel control should consider a standard managed switch instead.

16×10G RJ-45 and 2×100G QSFP

The port configuration defines the switch's capacity for high-bandwidth IP video transport. Sixteen 10Gb/s copper ports connect cameras and production gear while two 100Gb/s QSFP cages handle aggregation uplinks or fiber links. This specific mix of port speeds and counts determines whether the unit matches a given studio's signal density and backbone requirements.

Highlights

  • 16x 10Gb/s RJ-45 plus 2x 100Gb/s QSFP ports deliver high bandwidth for SMPTE-2110 IP video
  • Front SDI and HDMI monitor outputs show device name, connections and activity for real-time network visibility
  • 24 buttons, search dial and 2.2-inch colour display give local control of video and menu settings
  • IEEE 1588-2008 PTP v2, ST 2059-1/2 and NMOS IS-04/IS-05 support ensures smooth integration in professional IP video workflows
  • Rear-mounted Ethernet connections align with broadcast equipment ports for tidy cable management

Specifications

No published specifications for this item yet.

Questions about this item

How often should the internal fans be cleaned or replaced on the Ethernet Switch 360P?

The unit uses internal cooling fans; keep the rear ventilation slots clear of dust and schedule a visual inspection every six months in a broadcast rack, but no user-serviceable fan module is specified.

Which port type reaches its throughput ceiling first when every connection runs at line rate continuously?

The sixteen 10Gb/s RJ-45 ports saturate before the two 100Gb/s QSFP uplinks, so sustained full-duplex traffic on all RJ-45 links hits the switch fabric limit first.

What is the typical fan noise and power draw when the switch operates 24/7 in a quiet studio?

The front panel shows real-time status while the rear-mounted ports align with broadcast gear; fan speed ramps with temperature, and the chassis is built for continuous rack duty with no published acoustic or wattage figures.
