Compact black metal box with multiple video ports and a USB-C connector

AVMatrix

AVMatrix SC7030 audio video converter

SKU CH-747Y-KJV46

Converts multiple legacy and modern video signals to 3G-SDI and HDMI with up/down scaling up to 1080p60 and analog audio embedding

  • Converts HDMI, SDI, VGA, CVBS, YPbPr and S-Video sources

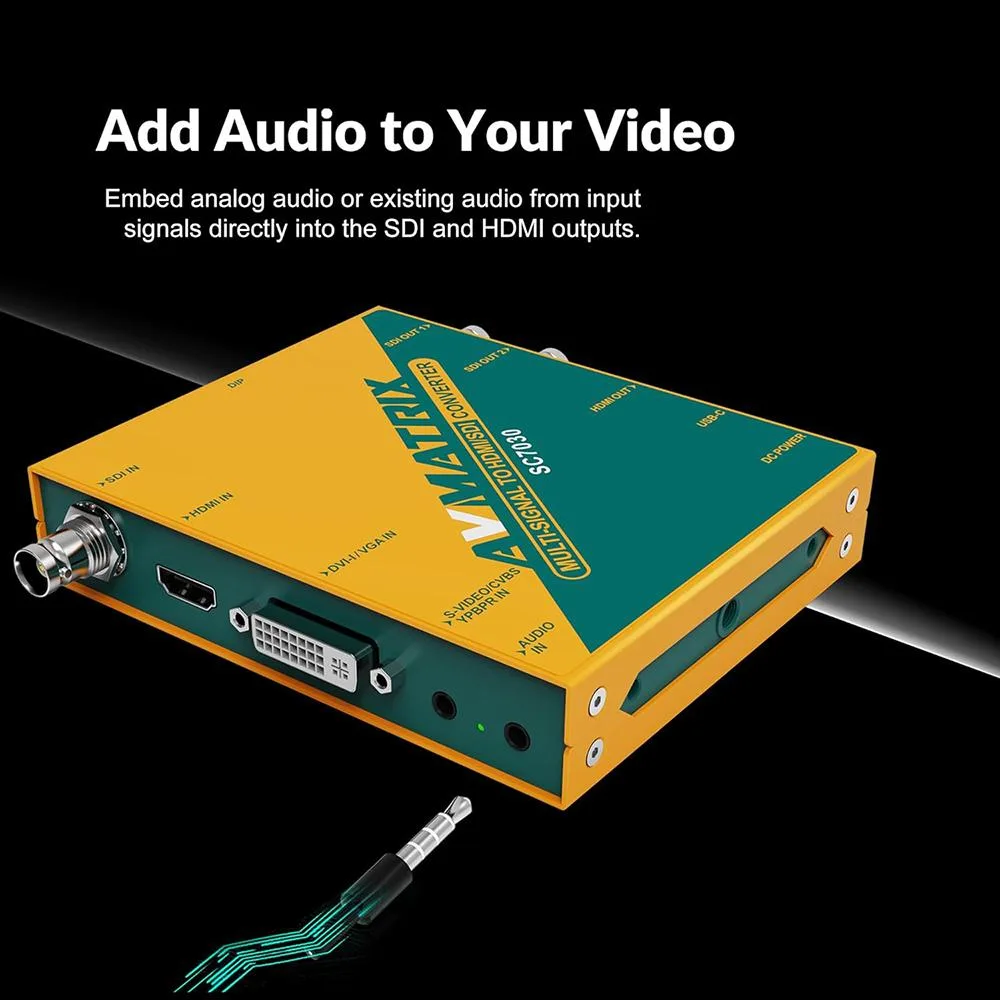

  • Embeds analog audio via 3.5mm jack into SDI or HDMI output
  • Scales and frame-rate converts signals up to 1080p60
  • Dual 3G-SDI plus HDMI outputs distribute the same signal
  • Configured by DIP switches or USB-C PC software control

Multi-Signal Converter SC7030

The AVMatrix SC7030 is a multi-signal to SDI and HDMI cross converter designed for professional video production and system integration. It bridges legacy analogue sources with modern digital broadcast infrastructure. Users working with medical imaging, military equipment or industrial cameras gain a single device to modernise diverse signal types.

Capacity and Headroom

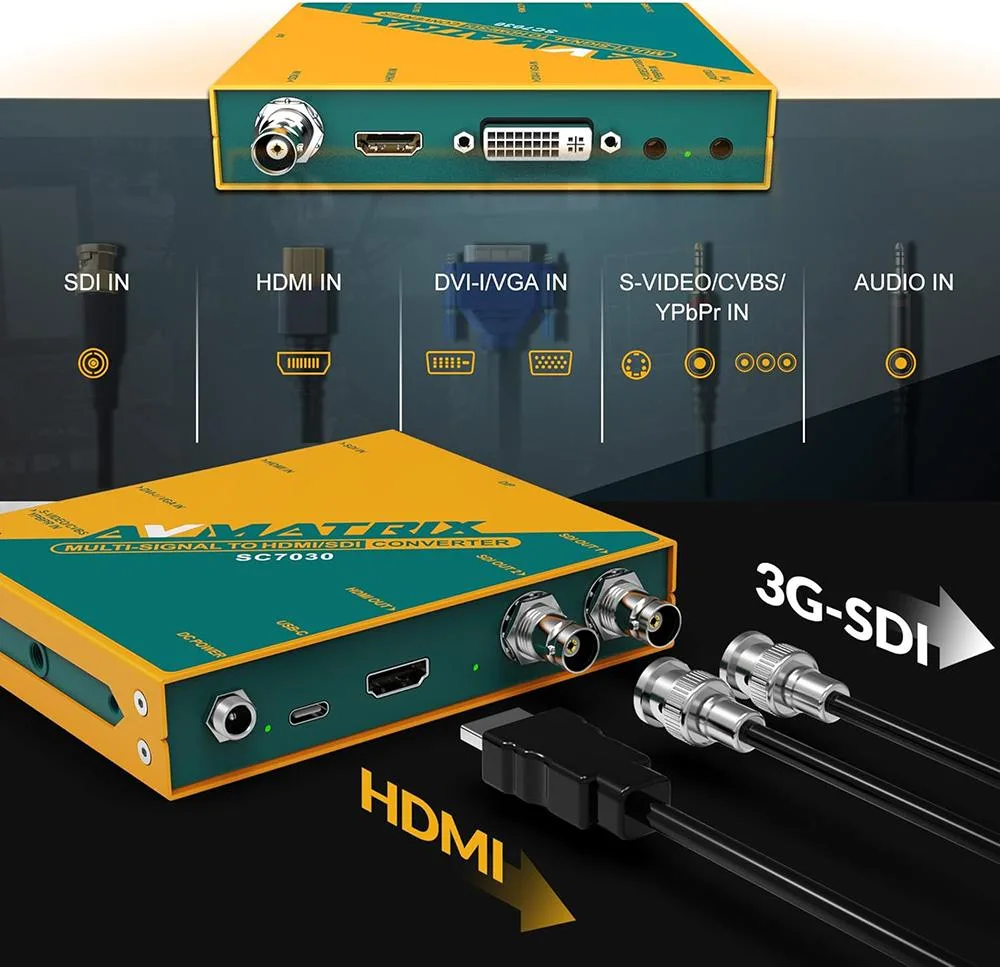

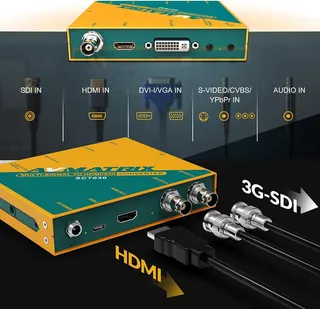

The unit handles format conversion with up/down scaling and frame rate conversion for resolutions up to 1080p60. It accepts SDI, HDMI, DVI-I, VGA, CVBS, S-Video and YPbPr inputs plus a 3.5 mm analogue audio input for embedding. Simultaneous dual 3G-SDI and HDMI outputs distribute the converted signal, though 4K or higher resolutions are not supported.

Build Integration

Configuration is managed via integrated DIP switches or Windows software over the USB-C port, which can also supply power. Dual threaded locking DC connectors allow redundant external power supplies for critical installations. LED indicators display video and power status, while audio de-embedding lets you route sound to external monitoring systems without extra hardware.

Highlights

  • Converts HDMI, SDI, VGA, CVBS, YPbPr and S-Video sources
  • Embeds analog audio via 3.5mm jack into SDI or HDMI output
  • Scales and frame-rate converts signals up to 1080p60
  • Dual 3G-SDI plus HDMI outputs distribute the same signal
  • Configured by DIP switches or USB-C PC software control

Specifications

No published specifications for this item yet.

Questions about this item

Will the SC7030 let me keep using my VGA and CVBS sources while sending a single SDI feed to a modern recorder?

Yes, the SC7030 accepts VGA, CVBS, S-Video and YPbPr inputs and converts them to two simultaneous 3G-SDI outputs plus an HDMI output at up to 1080p60.

How do I confirm the SC7030 is converting my 1080p60 source correctly after I connect it?

The front LED indicators show power and active video status, and the HDMI output lets you monitor the converted picture in real time.

Does the SC7030 ship with the USB-C cable and power supply I need to configure it via the Windows software?

The box includes the SC7030 unit; a USB-C cable and external power supply are not included and must be purchased separately.
