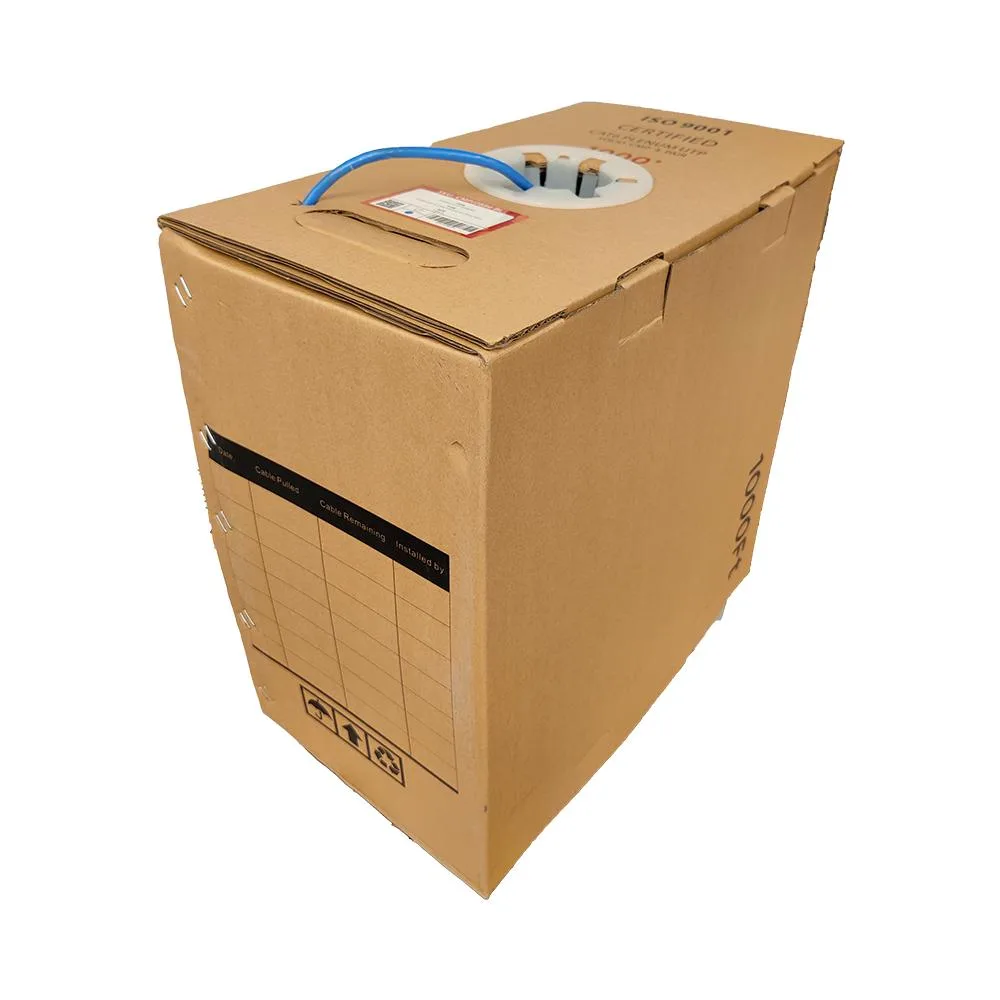

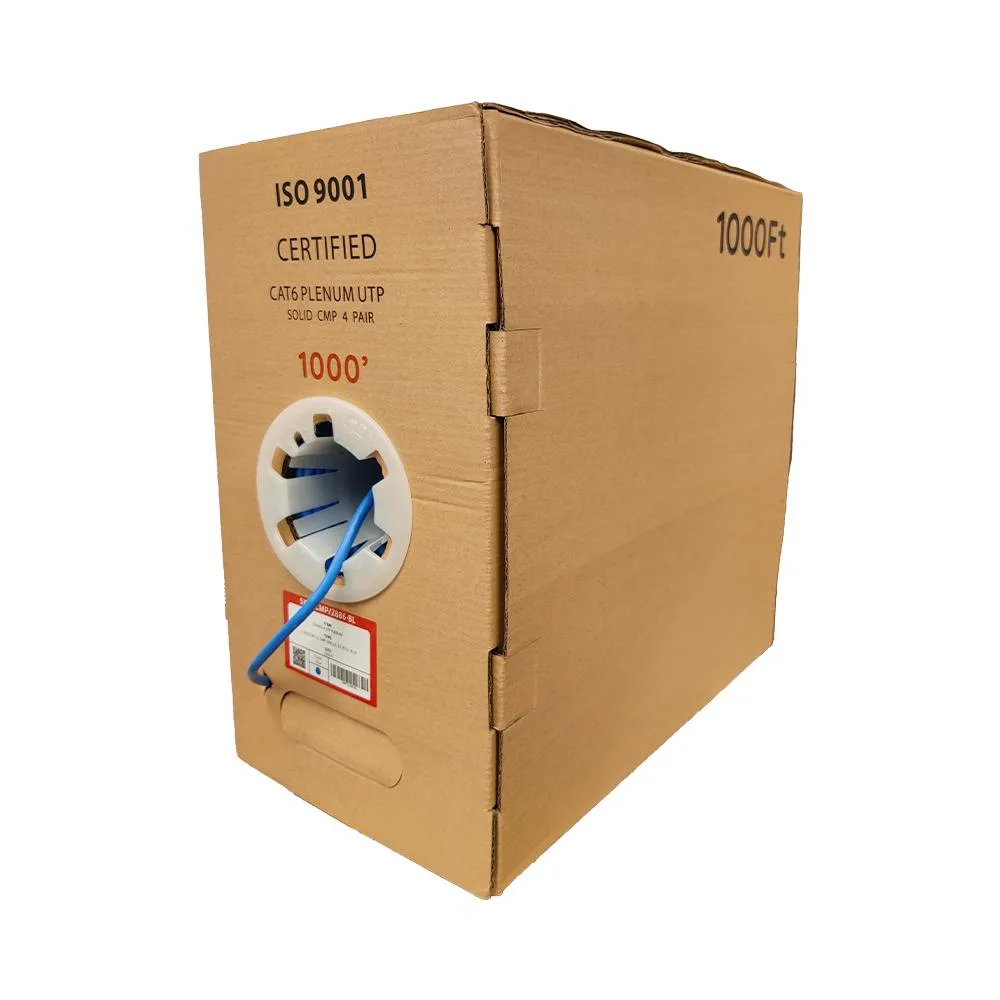

Blue Cat6 plenum cable in 1000ft easy-pull box

ATS Cables

ATS Cables Cat6 Plenum 1000ft 550MHz 23AWG Blue

SKU CH-3QFA-AD98E

Plenum-rated Cat6 bulk cable with 23 AWG solid CCA conductors, 550 MHz bandwidth and 1000 ft pull-box for in-wall installs

  • TypeNetwork Ethernet Cables
  • Cat6
  • Length1000 ft.
  • ColorBlack
  • ShieldedNo

Color Blue

  • Plenum-rated jacket meets fire-safety requirements for air-handling spaces
  • 550 MHz bandwidth supports Fast, Gigabit and 10-Gigabit Ethernet
  • 23 AWG solid conductors with centre spline reduce crosstalk
  • 1000 ft pull-box with sequential foot markings speeds installation
  • Meets TIA/EIA 568-C.2 and RoHS compliance standards

Plenum-rated Cat6 for air-handling spaces

This 1000 ft bulk cable meets CMP fire-safety requirements for installation in plenum ceilings and raised floors. Solid 23 AWG copper-clad aluminium conductors and a centre spline keep pair geometry stable during long pulls. The jacket is low-smoke and non-toxic, satisfying strict building codes for commercial indoor runs. Sequential foot markings simplify length tracking on site.

Upgrade from standard riser or patch cable

When local codes demand plenum rating, this cable replaces non-CMP alternatives without sacrificing bandwidth. The 550 MHz tested bandwidth supports Fast, Gigabit and 10-Gigabit Ethernet over the full 1000 ft length. Installers moving from basic Cat5e or unrated Cat6 gain the fire-performance margin required for insurance and inspection approval. The easy-pull box reduces snagging compared with loose coils or reels.

Capacity headroom for structured wiring

Four twisted pairs handle typical voice, data and PoE loads across the 1000 ft run at up to 550 MHz. CCA conductors keep material cost lower than solid copper while still passing TIA/EIA 568-C.2 channel tests for the supported speeds. The spline limits crosstalk, but the aluminium core raises DC resistance, so very long PoE runs or extreme bundle densities may exceed voltage-drop limits. Buyers needing full copper conductivity for maximum PoE distance or dense cable trays should specify solid copper instead.

Highlights

  • Plenum-rated jacket meets fire-safety requirements for air-handling spaces
  • 550 MHz bandwidth supports Fast, Gigabit and 10-Gigabit Ethernet
  • 23 AWG solid conductors with centre spline reduce crosstalk
  • 1000 ft pull-box with sequential foot markings speeds installation
  • Meets TIA/EIA 568-C.2 and RoHS compliance standards

Specifications

BrandATS Cables
ModelCategory 6 UTP
TypeNetwork Ethernet Cables
Cat6
Length1000 ft.
ColorBlack
ShieldedNo

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 1000 ft plenum-rated jacket fit through standard ceiling conduit?

The CMP-rated jacket is designed for air-handling spaces above suspended ceilings or below raised floors and meets fire-safety requirements for those installations.

What is the most common mistake when pulling the 23 AWG solid conductors from the easy-pull box?

Pulling too fast can kink the solid conductors; the integrated center spline helps prevent twists, so feed the cable steadily and use the sequential foot markings to measure runs.

How often should the CCA conductors be inspected or replaced in a permanent plenum run?

CCA solid-core conductors are intended for permanent installation; no routine replacement is needed, but verify continuity and crosstalk performance if the cable is ever disturbed or re-terminated.
