ASUS RS720A-E13-RS8G-32KW10G-EPYC-9655 barebone server EPYC 9655 96-core 2.60 GHz 256GB DDR5 960GB SSD
A 2U rackmount barebones server with a 96-core AMD EPYC 9655 at 2.60 GHz, 256GB DDR5 memory and a 960GB SSD
- Form Factor2U Rackmount
- WorkloadGeneral Purpose Server
- CPU TypeAMD EPYC 9005 Series
- CPU SocketSocket SP5
- NameEPYC 9654
- Max Processors2
- 96-core EPYC 9655 at 2.60 GHz powers heavy parallel workloads
- 256 GB DDR5 6400/5600 RDIMM across 24 slots enables large datasets
- 960 GB SSD provides fast boot and application storage

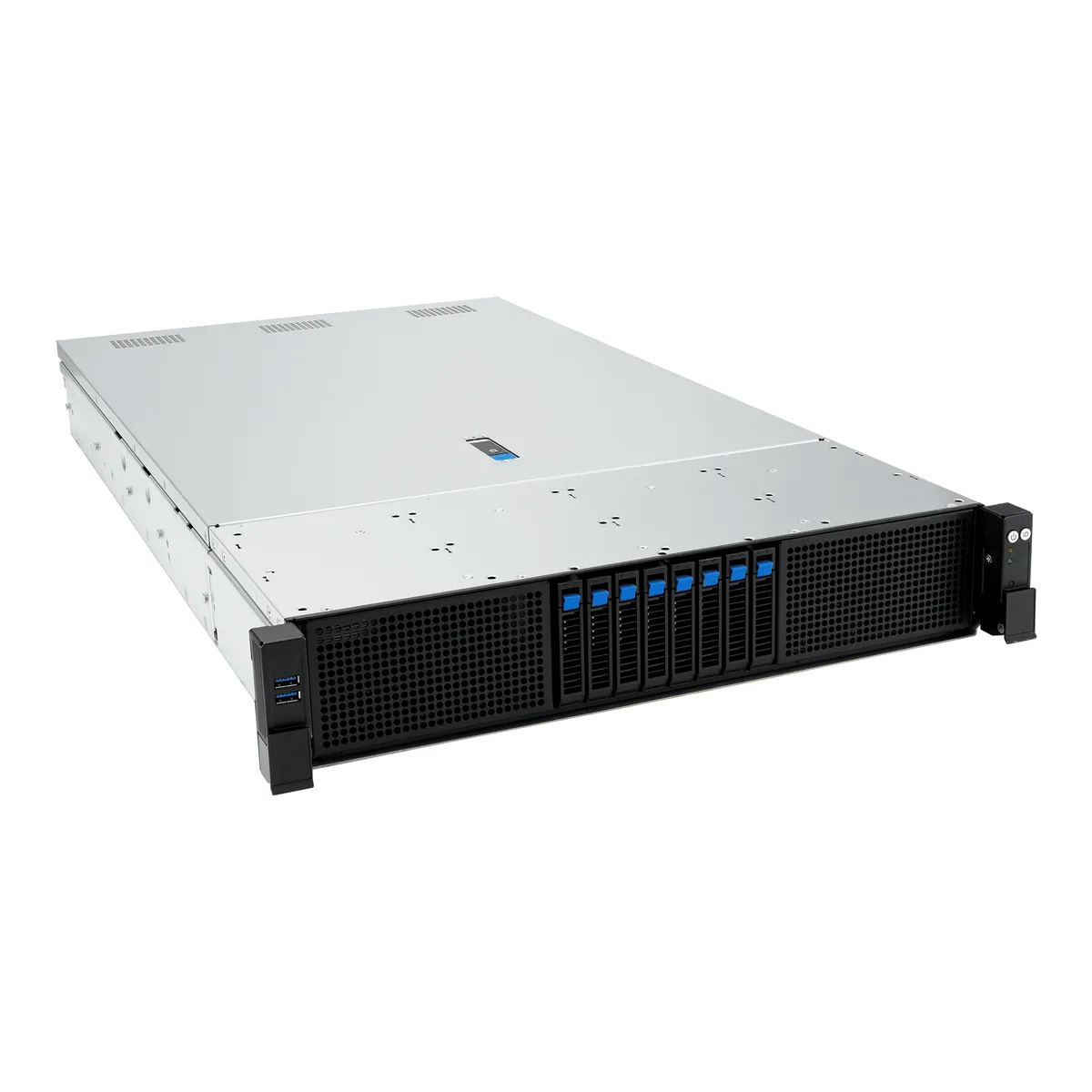

- 2U rackmount with 8 hot-swap 2.5" bays simplifies drive maintenance
- 12-channel memory and PCIe Gen5 slots deliver high I/O bandwidth
2U barebone for dense compute
The ASUS RS720A-E13-RS8G-32KW10G-EPYC-9655 is a 2U rackmount barebone server built around an AMD EPYC 9655 processor with 96 cores and 192 threads at 2.60 GHz. It targets organisations that need high core density in a compact chassis for virtualisation, database or HPC workloads.
96-core EPYC 9655 with 12-channel DDR5
The single specification that decides fit is the pre-installed EPYC 9655 delivering 96 cores and 192 threads on Socket SP5 with 12 memory channels. The system ships with 256 GB of DDR5 6400/5600 RDIMM across 24 slots and supports up to 3 TB, so memory bandwidth scales directly with the processor you already have.
256 GB DDR5 and 960 GB SSD headroom
The 256 GB of installed DDR5 handles large in-memory datasets and heavy virtualisation comfortably, while the 960 GB SSD provides fast boot and scratch space. Eight 2.5-inch hot-swap bays allow storage expansion without downtime, but the barebone includes no additional drives, so buyers needing multi-terabyte capacity must supply their own.
Highlights
- 96-core EPYC 9655 at 2.60 GHz powers heavy parallel workloads
- 256 GB DDR5 6400/5600 RDIMM across 24 slots enables large datasets
- 960 GB SSD provides fast boot and application storage
- 2U rackmount with 8 hot-swap 2.5" bays simplifies drive maintenance
- 12-channel memory and PCIe Gen5 slots deliver high I/O bandwidth
Specifications
| Brand | ASUS |
|---|---|
| Model | RS720A-E13-RS8G-32KW10G-EPYC-9655 |
| Form Factor | 2U Rackmount |
| Workload | General Purpose Server |
| CPU Type | AMD EPYC 9005 Series |
| CPU Socket | Socket SP5 |
| Name | EPYC 9654 |
| Max Processors | 2 |
| CPU Features | 96-Core, 192-Thread |
| Memory Slots | 24 x 288Pin |
| Installed Memory Size | 256GB |
| Max Memory Supported | 3TB |
| Memory Type Supported | Memory Type : DDR5 6400/5600 RDIMM/ 3DS RDIMM |
| Channel Supported | 12 Channel |
| Installed HDD | No Storage Installed |
| GPU/VPU | Aspeed AST2600 |
| Video Memory | 64MB |
| PCI Express | 6 x PCIE Gen5 x8 or 3 x PCIE Gen5 x16 (FHFL) 2 x PCIE Gen5 x16 (FHHL) 2 x OCP3.0 Gen5 x16 (SFF) |
| Hot-Swap Bays | 8 x 2.5" hot-swap drive bays |
| LEDs | Front Switch/LED: 1 x Power Switch w/ LED 1 x Reset Switch 1 x Location Switch w/ LED 1 x HDD Access LED 1 x Message LED Rear Switch/LED: 1 x Power Switch w/ LED 1 x Location Switch w/LED 1 x Message LED |
| Front USB | 2 x USB 3.2 Gen1 ports |
| DisplayPort | 1 x Mini-DP port |
| Rear USB | 2 x USB 3.2 Gen1 ports |
| RJ45 | 1 x RJ-45 Management LAN port |
| Other Ports | 1 x Debug port |
| Max. Power | 1+1 Redundant 80 PLUS 3200W Titanium PSU |
| Fans | 6 |
| Temperature | Operation temperature: 10°C ~ 35°C Non operation temperature: -40°C ~ 60°C |
| Humidity | Non operation humidity: 20% ~ 90% (Non condensing) |
| Dimensions | 3.44" x 19.08" x 32.37" |
| Weight | 39.29 lbs. |
| Shipping weight | 20.41 kg |
| Package size | 889 × 559 × 152 mm |
Questions about this item
What does the 96-core EPYC 9655 deliver in a live 2U rackmount server?
The installed EPYC 9655 provides 96 cores and 192 threads at 2.60 GHz, giving dense multi-threaded throughput for virtualization, databases or HPC workloads inside a 2U chassis.
How do the PCIe Gen5 slots and OCP 3.0 ports limit add-in card bandwidth?
Six PCIe Gen5 x8 or three x16 full-height full-length slots plus two x16 full-height half-length slots and two OCP 3.0 x16 SFF bays all share Gen5 lanes, capping each device at its configured lane width.
What physical space and rails does the 2U barebones need to mount in a rack?
The unit occupies 2U of rack height and uses standard 2U rackmount rails; eight 2.5-inch hot-swap bays fill the front, while power supplies and rear I/O sit at the back.
