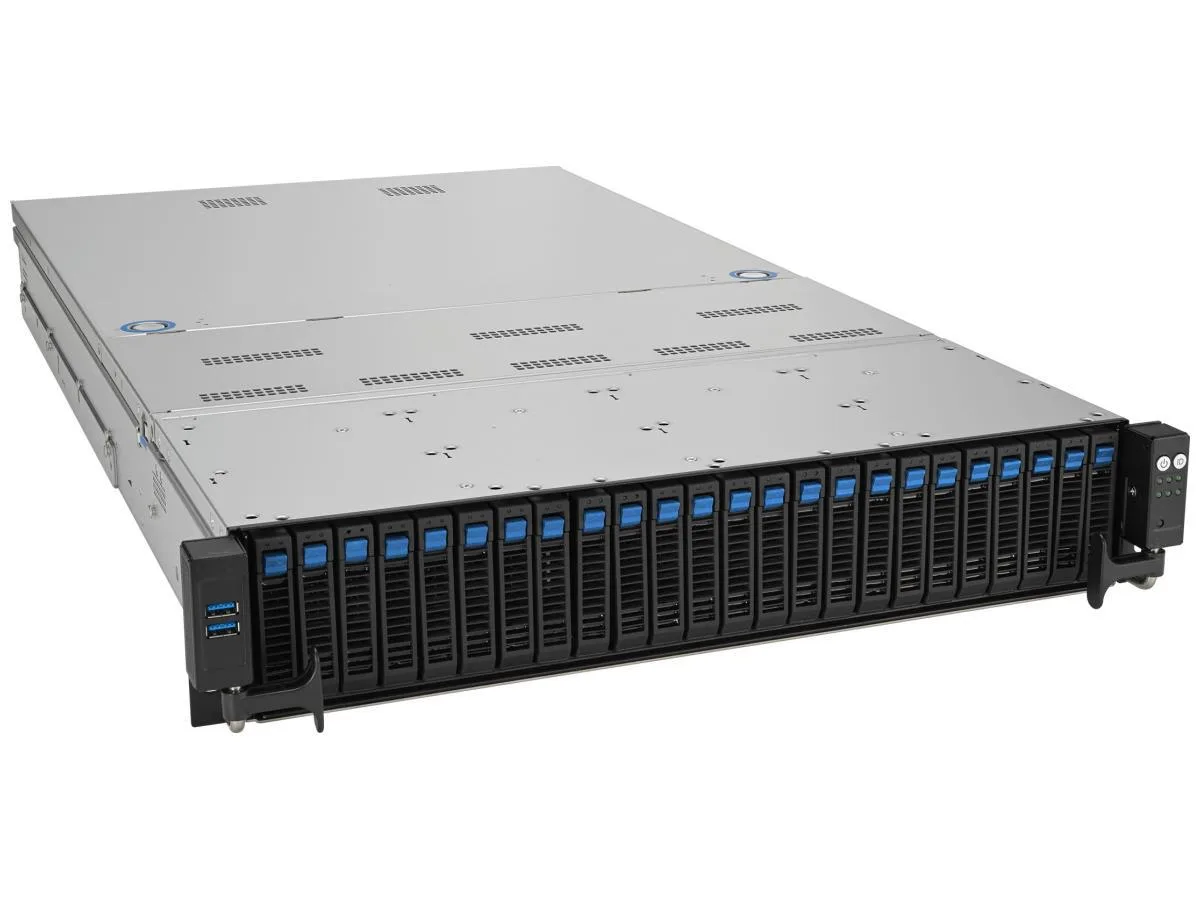

Silver 2U rackmount barebone server, 24 front hot-swap drive bays, redundant power supplies

ASUS

ASUS RS720-E11-RS24U-20WGP10G 2U barebone server

SKU CH-JABF-PEQCP MPN RS720-E11-RS24U-20WGP10G

2U rackmount barebone supports dual Xeon CPUs, 32 DDR5 DIMMs, 24 NVMe bays and four PCIe 5.0 slots

  • Form Factor2U Rackmount
  • CPU TypeIntel Xeon Processor Scalable Family
  • CPU SocketLGA 4677
  • Installed CPUNo CPU Installed
  • North BridgeIntel C741
  • Memory Slots32 x 288Pin
  • Supports dual 5th Gen Intel Xeon Scalable processors via LGA 4677 sockets
  • 32 DDR5 288-pin slots for up to 4800 MT/s memory bandwidth
  • 24 hot-swap 2.5-inch bays with 12 NVMe plus 12 NVMe/SATA/SAS support
  • Four PCIe 5.0 slots plus OCP 3.0 for GPU and networking expansion
  • 2000 W 1+1 redundant 80 Plus Platinum power supply included

2U dual-socket barebone for Xeon Scalable

The ASUS RS720-E11-RS24U-20WGP10G is a 2U rackmount server barebone designed for dual Intel Xeon Scalable processors using the LGA 4677 socket. It targets organisations building high-density compute or storage nodes that require extensive NVMe capacity and PCIe 5.0 expansion. The chassis arrives without CPUs, memory or drives installed.

Sustained load behaviour with 2000W redundant power

Dual 2000W 80 Plus Platinum power supplies in 1+1 redundancy feed the platform, while an enhanced volume air cooling (EVAC) heatsink handles processors with higher TDP during prolonged AI, HPC or database workloads. Four PCIe 5.0 slots — including two x8 links or one x16 link, one low-profile x16 slot and an OCP 3.0 module — maintain full bandwidth for accelerators and networking under continuous utilisation.

Compatibility checks before ordering

Verify that your chosen Xeon Scalable processors match the LGA 4677 socket and that DDR5 modules operate at 4800 MT/s for 1DPC or 4400 MT/s for 2DPC across the 32 DIMM slots. Storage planning must account for 24 front 2.5-inch hot-swap bays supporting NVMe plus NVMe/SATA/SAS (SAS requires an HBA/RAID card), two M.2 slots and the need for a GPU no wider than a dual-slot form factor.

Highlights

  • Supports dual 5th Gen Intel Xeon Scalable processors via LGA 4677 sockets
  • 32 DDR5 288-pin slots for up to 4800 MT/s memory bandwidth
  • 24 hot-swap 2.5-inch bays with 12 NVMe plus 12 NVMe/SATA/SAS support
  • Four PCIe 5.0 slots plus OCP 3.0 for GPU and networking expansion
  • 2000 W 1+1 redundant 80 Plus Platinum power supply included

Specifications

BrandASUS
ModelRS720-E11-RS24U-20WGP10G
Form Factor2U Rackmount
CPU TypeIntel Xeon Processor Scalable Family
CPU SocketLGA 4677
Installed CPUNo CPU Installed
North BridgeIntel C741
Memory Slots32 x 288Pin
Installed Memory SizeNo Memory Installed
Memory Type SupportedDDR5 4800(1DPC)/4400(2DPC)
Installed HDDNo Storage Installed
Serial ATA12 x NVMe + 12 x NVMe/SATA/SAS*
(*HBA/RAID card is required to support SAS hard drives) EDIT
M.22
PCI ExpressUp to 4 slots
2 x PCIe G5 x8 link or 1 x PCIe G5 x16 link (FHFL or FHHL)
1 x OCP 3.0
1 x PCIe G5 x16, LP
First LANIntel I710-AT2
Max. LAN Speed10 Gigabit
2.5" Bays24 x 2.5" hot-swap bay
Front USB2 x USB 3.2 Gen1
VGA1 x VGA (Rear)
Rear USB2 x USB 3.2 Gen1
RJ452 x 10GbE LAN ports (RJ45)
Other Ports1 x RJ-45 Management LAN port
Max. Power2000W Redundant 1+1, 80 Plus Platinum
Dimensions33.07" x 17.6" x 3.46"
Weight79.37 lbs.
Shipping weight28.12 kg
Package size1113 × 595 × 380 mm

Questions about this item

How much power can the 2000W redundant 1+1 80 Plus Platinum supply handle when the RS720-E11-RS24U runs fully populated all day?

The 2000W redundant 1+1 80 Plus Platinum units deliver up to 2000W total, so the chassis can sustain a fully loaded dual-socket Xeon configuration with 24 NVMe drives and a dual-slot GPU continuously.

Which components must I already own or buy separately to make this barebone server operational?

You need two LGA 4677 Xeon Scalable CPUs, DDR5 4800/4400 ECC RDIMMs for the 32 slots, 2.5" NVMe/SATA/SAS drives for the 24 hot-swap bays, an HBA/RAID card if you use SAS, and an OS licence.

Will my existing PCIe 3.0 or 4.0 add-in cards work in the four PCIe 5.0 slots without slowing the new Xeon platform?

Yes, the four PCIe 5.0 slots (two x8 or one x16, one x16 low-profile, one OCP 3.0) are backward compatible, so older PCIe 3.0/4.0 cards will function at their native speeds.
