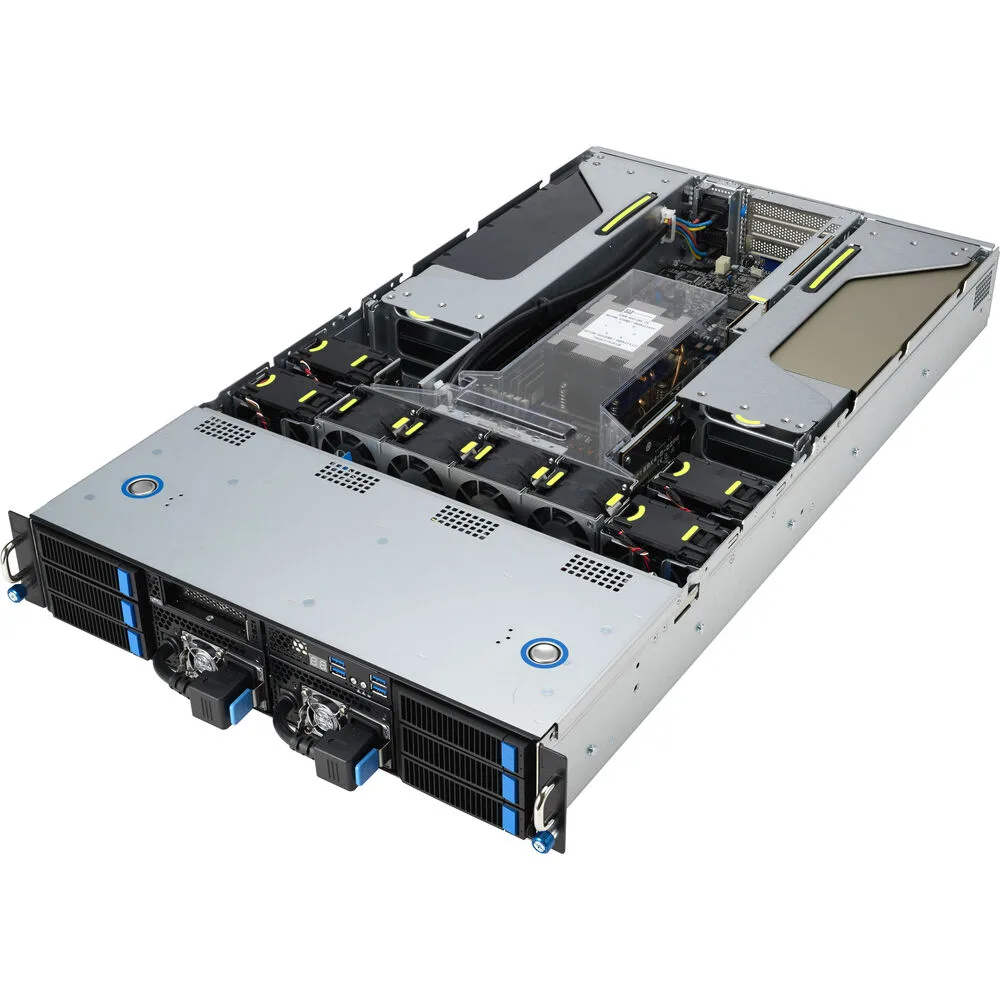

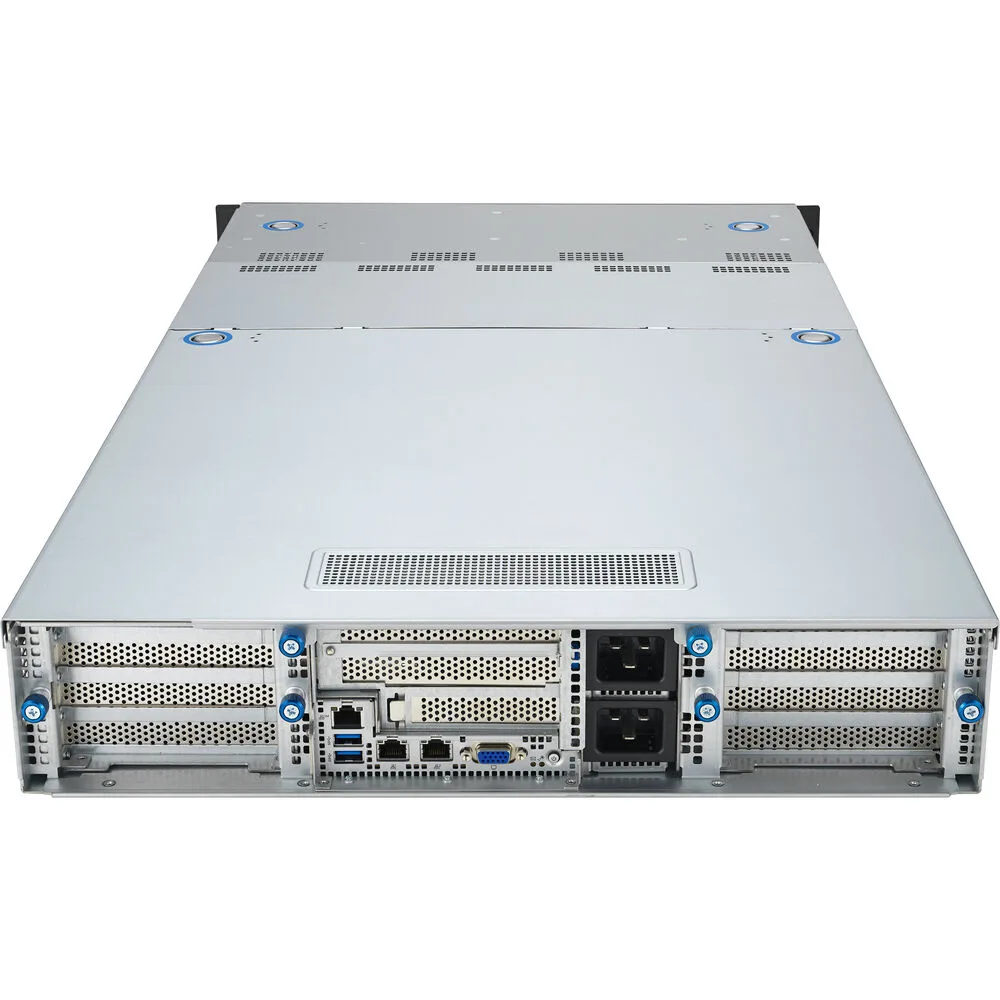

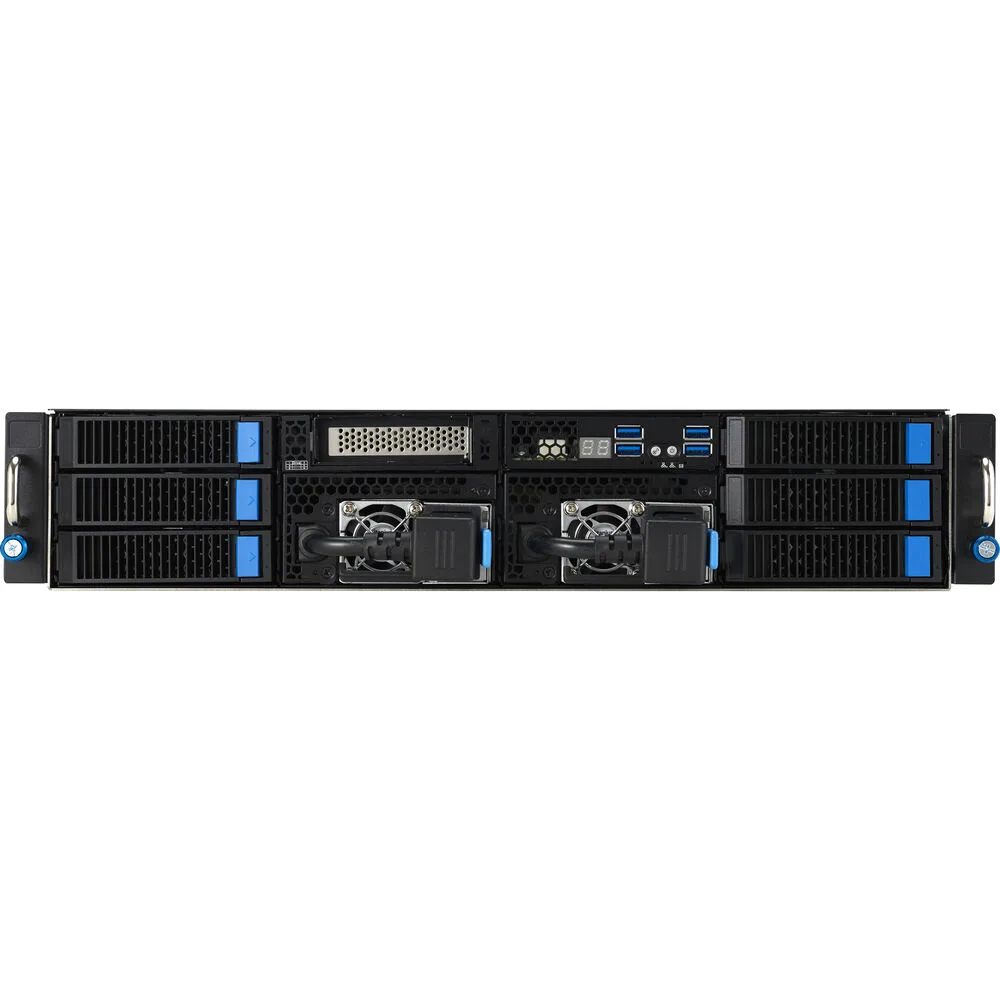

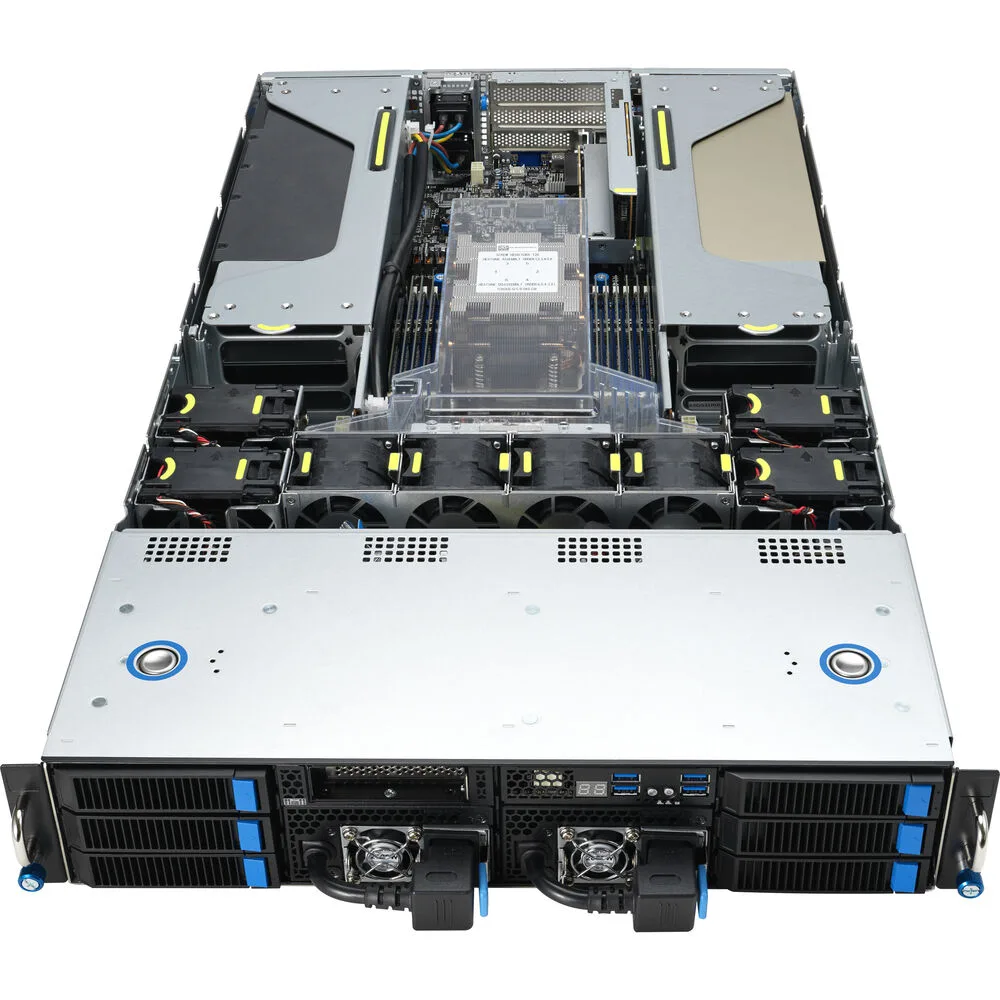

ASUS ESC4000A-E12 2U rackmount server barebone, silver metal chassis with front drive bays and rear expansion slots

ASUS

ASUS ESC4000A-E12-26WGP 2U barebone server 12 DDR5 slots 2600W redundant

SKU CH-NAHQ-BX4NH MPN ESC4000A-E12-26WGP

2U rackmount barebone for AMD EPYC 9004 with 12 DDR5 slots, eight PCIe 5.0 slots and 2600W redundant power

  • Form Factor2U Rackmount
  • WorkloadAI/ML/HPC
  • CPU TypeAMD EPYC 9004 series (up to 400W)
  • CPU SocketSocket SP5
  • Installed CPUNo CPU Installed
  • Max Processors1
  • Supports up to 3 TB DDR5 memory across 12 channels
  • Four dual-slot GPUs fit in eight PCIe 5.0 slots
  • Redundant 2600 W 80 Plus Titanium power supplies
  • Liquid or enhanced air cooling for up to 400 W CPU
  • Six front bays for NVMe, SATA and SAS drives

2U GPU server barebone for AI and HPC workloads

This ASUS ESC4000A-E12-26WGP is a 2U rackmount barebone designed for AI, ML and HPC tasks. It accommodates a single AMD EPYC 9004 series processor and up to four dual-slot GPUs. The chassis targets builders who need dense GPU compute in a standard rack form factor.

Single Socket SP5 processor

The board provides one Socket SP5 for 4th Generation AMD EPYC 9004 CPUs up to 400W TDP. Twelve 288-pin DDR5 slots support 4800 or 4400 MHz RDIMM and 3DS modules across 12 channels for a maximum of 3TB. Buyers who require dual-socket scaling cannot use this platform.

Independent CPU and GPU airflow tunnels with 2600W

Separate airflow tunnels isolate CPU and GPU thermals for air or liquid cooling. Two 2600W 80 Plus Titanium redundant supplies deliver uninterrupted power. No installed CPU, memory or storage means thermal and acoustic behaviour depends entirely on the components selected.

Highlights

  • Supports up to 3 TB DDR5 memory across 12 channels
  • Four dual-slot GPUs fit in eight PCIe 5.0 slots
  • Redundant 2600 W 80 Plus Titanium power supplies
  • Liquid or enhanced air cooling for up to 400 W CPU
  • Six front bays for NVMe, SATA and SAS drives

Specifications

BrandASUS
ModelESC4000A-E12-26WGP
Form Factor2U Rackmount
WorkloadAI/ML/HPC
CPU TypeAMD EPYC 9004 series (up to 400W)
CPU SocketSocket SP5
Installed CPUNo CPU Installed
Max Processors1
CPU Features4th Generation AMD EPYC Processorswith AMD 3D V-Cache technology
Memory Slots12 x 288Pin
Installed Memory SizeNo Memory Installed
Max Memory Supported3TB
Memory Type SupportedDDR5 4800/4400 RDIMM/RDIMM 3DS
Channel Supported12 Channel
Installed HDDNo Storage Installed
PCI ExpressRear:
- 8 x PCIe x16 slots (Gen5 x8 link, FH,FL) for single-slot GPU cards
- 1 x PCIe x16 slots (Gen5 x16 link, FH, HL)
- 1 x PCIe x16 slot (Gen5 x16/x8 link, FH, HL)
- 1 x PCIe x8 slot (Gen5 x0/x8 link, LP, HL)
Front: 1 x PCIe x8 slot (Gen5 x8 link, LP, HL)
First LANIntel I350-AM2
Max. LAN Speed1 Gigabit
2.5" Bays2
3.5" Bays4
Front USB4 x USB 3.2 Gen1
VGA1 x VGA (Rear)
Rear USB2 x USB 3.2 Gen1
RJ452 x Gigabit LAN ports
Other Ports1 x Management port
Max. Power2600W Redundant 80 Plus
TemperatureOperation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
HumidityNon operation humidity: 20% ~ 90% ( Non condensing)
Dimensions31.50" x 17.30" x 3.50"
Weight52.91 lbs.
Shipping weight8.17 kg
Package size1113 × 594 × 260 mm

Questions about this item

What does the 400 W CPU rating mean once the processor is installed in this server?

The single SP5 socket accepts one AMD EPYC 9004 series processor with a maximum TDP of 400 W, and the cooling design provides independent airflow tunnels for that thermal envelope.

How does the PCIe 5.0 interface cap GPU bandwidth in this chassis?

Eight rear slots run at Gen5 x8 electrical for single-slot GPUs, while two additional slots provide Gen5 x16 links for dual-slot cards or other expansion.

What physical space and mounting does this 2U barebone require?

It fits a standard 2U rackmount bay, supports up to four dual-slot GPUs, and includes front bays for two 2.5-inch and four 3.5-inch drives.
