ASUS
ASUS ESC4000-E11-26WGP 2U barebone server, dual Xeon, 16 DDR5 DIMM, 6 NVMe, 2600W redundant PSU
2U dual-socket barebone server supporting 16 DDR5 DIMM slots, six NVMe bays and four dual-slot GPUs with dual 2600W Titanium redundant power supplies
- Form Factor2U Rackmount
- CPU Type4th Gen Intel Xeon Scalable processors (Up to 350W)
- Installed CPUNo CPU Installed
- North BridgeIntel C741
- Memory Slots16 x 288Pin
- Installed Memory SizeNo Memory Installed
- Dual 5th Gen Xeon sockets deliver up to 21% better performance per watt
- Six front NVMe/SATA/SAS bays plus M.2 give flexible high-speed storage
- 16 DDR5 4800 ECC slots support large AI model loading
- Four dual-slot GPU capacity with NVLink bridge enables training scaling
- Dual 2600W Titanium redundant PSUs and split airflow keep system running
2U dual-socket GPU barebone
The ASUS ESC4000-E11-26WGP is a 2U rackmount barebone designed for dual 5th Gen Intel Xeon Scalable processors. It provides 16 DDR5 DIMM slots running at 4800 or 4400 MT/s and supports up to four dual-slot GPUs with NVLink bridge capability. Six front drive bays accept Tri-Mode NVMe, SATA or SAS storage for high-throughput workloads.

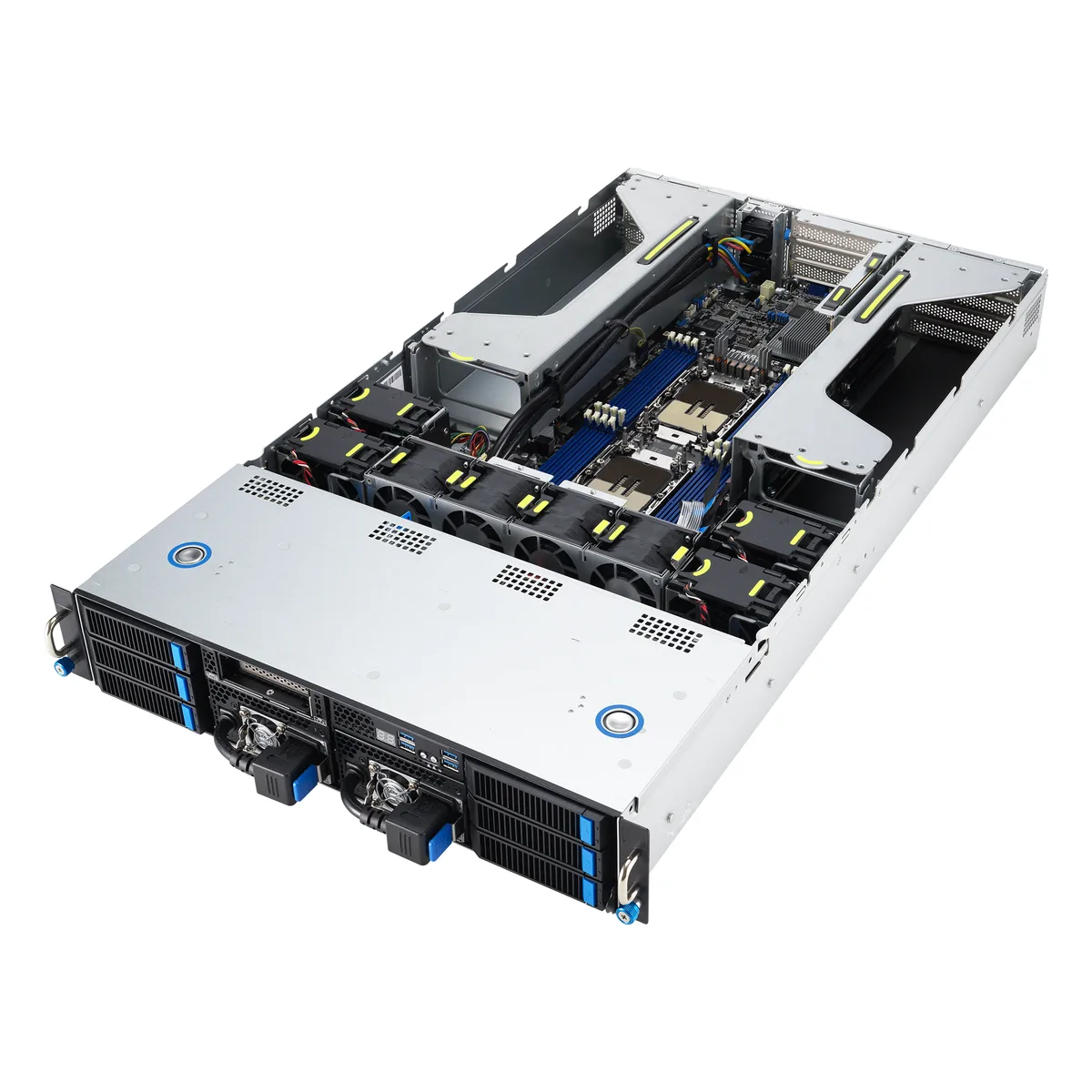

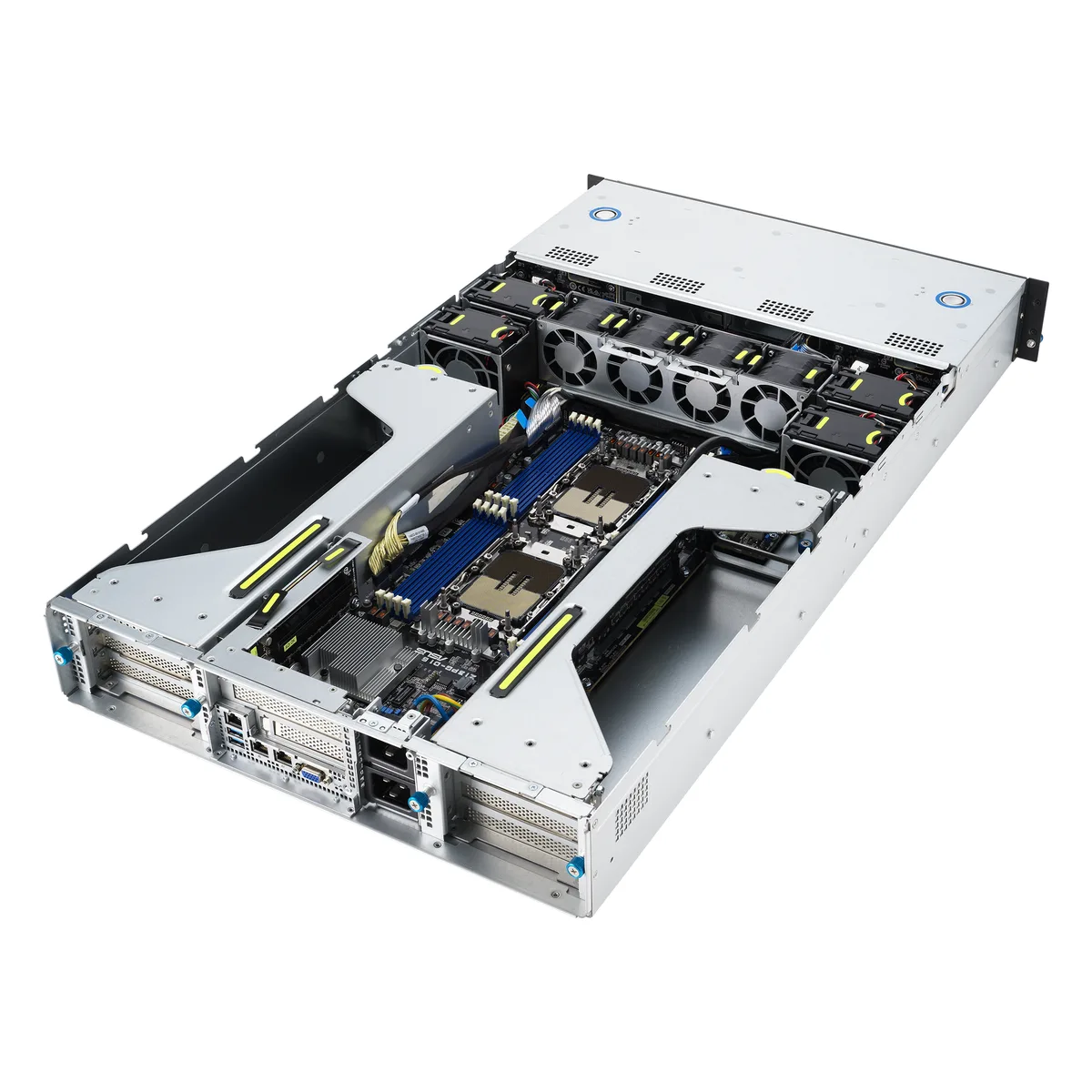

Independent airflow tunnels and Titanium PSU
Separate CPU and GPU airflow tunnels optimise thermal performance under sustained AI and HPC loads. Two 2600W 80 Plus Titanium redundant power supplies deliver uninterrupted operation. The design targets power-efficient operation while handling processors rated up to 350W and multiple high-power accelerators.
Remote management and expansion flexibility
The ASMB11-iKVM module with ASPEED AST2600 enables out-of-band control and hardware-level security. A rear PCIe 5.0 slot accommodates high-speed networking modules, and ASUS Control Center software simplifies infrastructure management. Buyers needing more than four GPUs or more than six NVMe bays will require a larger platform.
Highlights
- Dual 5th Gen Xeon sockets deliver up to 21% better performance per watt
- Six front NVMe/SATA/SAS bays plus M.2 give flexible high-speed storage
- 16 DDR5 4800 ECC slots support large AI model loading
- Four dual-slot GPU capacity with NVLink bridge enables training scaling
- Dual 2600W Titanium redundant PSUs and split airflow keep system running
Specifications
| Brand | ASUS |
|---|---|
| Model | ESC4000-E11-26WGP |
| Form Factor | 2U Rackmount |
| CPU Type | 4th Gen Intel Xeon Scalable processors (Up to 350W) |
| Installed CPU | No CPU Installed |
| North Bridge | Intel C741 |
| Memory Slots | 16 x 288Pin |
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | DDR5 4800(1DPC)/4400(2DPC) |
| Installed HDD | No Storage Installed |
| M.2 | 1 x M.2 socket (Gen3 x4 link PCIe mode, up to 2280) |
| First LAN | Intel I350 |
| Max. LAN Speed | 1 Gigabit |
| 2.5" Bays | 2 |
| 3.5" Bays | 4 |
| Front USB | 4 x USB 3.2 Gen1 |
| VGA | 1 x VGA (Rear) |
| Rear USB | 2 x USB 3.2 Gen1 |
| RJ45 | 2 x Gigabit LAN ports (RJ45) |
| Other Ports | 1 x Management port (RJ45) |
| Max. Power | 2600W Redundant 1+1 Titanium |
| Temperature | Operation temperature: 10°C ~ 35°C Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
| Dimensions | 31.50" x 17.30" x 3.50" |
| Weight | 57.32 lbs. |
| Shipping weight | 37.85 kg |
| Package size | 1113 × 595 × 260 mm |
Questions about this item
How do I install CPUs and memory in the ESC4000-E11-26WGP, and which step is most often missed?
Fit both 5th Gen Xeon processors first, then populate the 16 DDR5 288-pin slots following the silkscreen channel order; the step most often missed is enabling the correct memory speed — 4800 MT/s at 1 DPC or 4400 MT/s at 2 DPC — in the BIOS after the first boot.
What maintenance or replacement will the ESC4000-E11-26WGP need over time?
The dual 2600W Titanium power supplies are hot-swap redundant; plan to replace a failed unit without downtime. System fans and the front NVMe/SATA/SAS drive bays are also field-replaceable, while the ASPEED AST2600 BMC firmware should be updated periodically via the management port.
What limit appears first when the ESC4000-E11-26WGP runs sustained AI workloads?
Thermal headroom for up to four dual-slot GPUs is the first constraint; the independent CPU and GPU airflow tunnels and dual 2600W PSUs are designed for continuous operation, but GPU power draw and case temperature will throttle clocks before the power supplies or PCIe 5.0 bandwidth are saturated.
