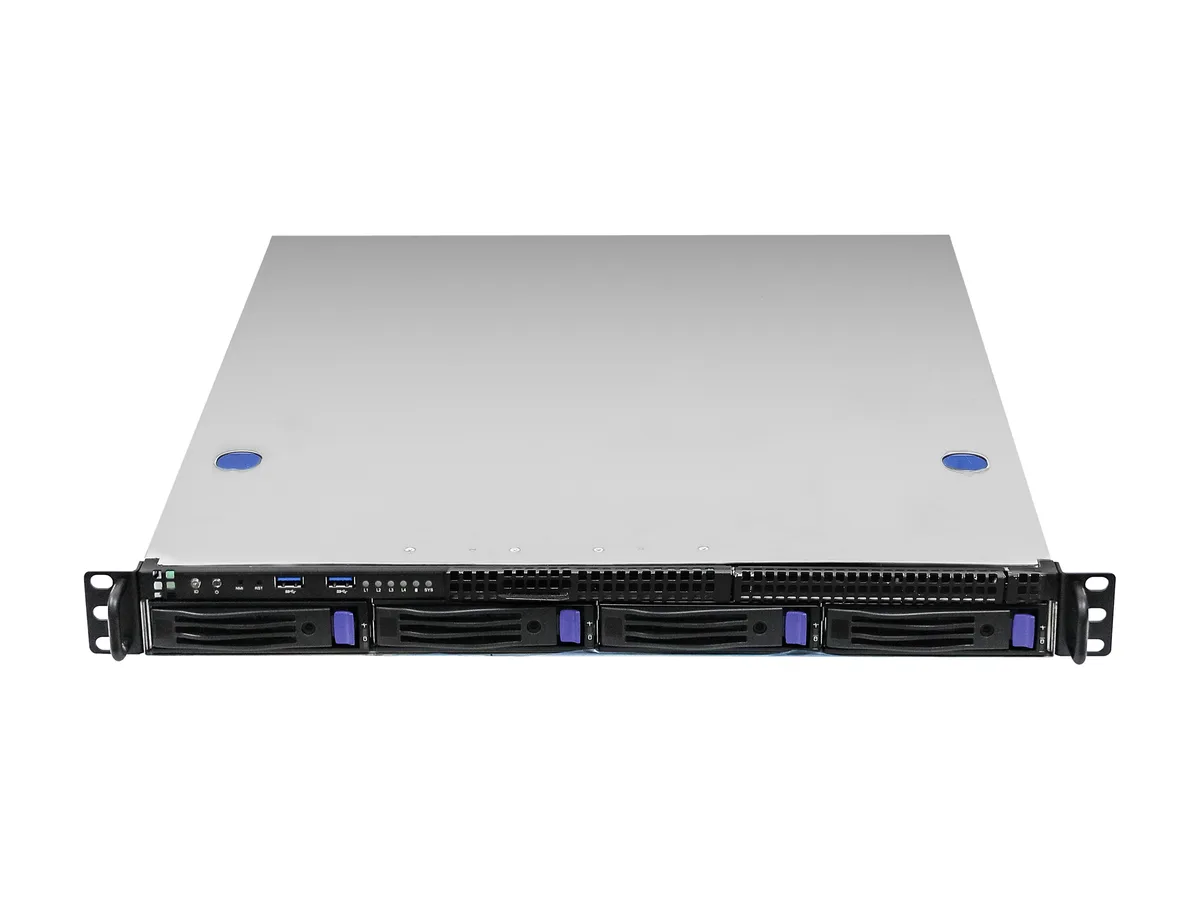

Silver 1U rackmount server chassis with front drive bays and ports

ASRock Rack

ASRock Rack 1U4LW-ICX/2T 1U barebone server

SKU CH-TXW1-M03P7 MPN 1U4LW-ICX/2T

A 1U rackmount barebone supporting one third-generation Xeon Scalable processor, eight DDR4 DIMM slots, four hot-swap 3.5" SATA bays, three fixed 2.5" SATA bays and dual 10 Gigabit LAN

  • Form Factor1U Rackmount
  • WorkloadGeneral Purpose Server
  • CPU TypeSupports 3rd Gen Intel Xeon Scalable processors
  • CPU SocketLGA 4189
  • Installed CPUNo CPU Installed
  • Max Processors1
  • Supports 3rd Gen Intel Xeon Scalable processors via LGA 4189 socket
  • Eight DDR4 3200 DIMM slots in 1DPC layout for high memory capacity
  • Dual 10 Gigabit Ethernet ports driven by Intel X710-AT2 controller
  • Four hot-swap 3.5" SATA bays plus three fixed 2.5" SATA bays for flexible storage
  • 600 W 80-PLUS Platinum single PSU with 100-240 V auto-ranging input

1U Rackmount Barebone Server

This 1U rackmount barebone server is built for general-purpose workloads in a standard rack environment. It arrives without a CPU or memory installed, so integrators choose their own 3rd Gen Intel Xeon Scalable processor and DDR4 3200 modules. The chassis fits a single processor and provides front-access drive bays for quick maintenance.

LGA 4189 Socket and Intel C621A Chipset

The board uses the LGA 4189 socket paired with the Intel C621A chipset, accepting one 3rd Gen Intel Xeon Scalable processor. This socket and chipset combination is the single specification that determines processor compatibility; no other CPU generation will fit. Builders must source a matching Xeon processor to complete the system.

Memory and Storage Headroom

Eight DIMM slots support DDR4 3200 in a 1DPC configuration, giving ample memory capacity for virtualisation or database tasks. Storage options include three fixed 2.5-inch SATA bays and four hot-swap 3.5-inch SATA bays, allowing a mix of boot and high-capacity drives. Expansion is limited to one full-height PCIe 4.0 x16 slot, so additional controllers or accelerators cannot be added beyond that single card.

Highlights

  • Supports 3rd Gen Intel Xeon Scalable processors via LGA 4189 socket
  • Eight DDR4 3200 DIMM slots in 1DPC layout for high memory capacity
  • Dual 10 Gigabit Ethernet ports driven by Intel X710-AT2 controller
  • Four hot-swap 3.5" SATA bays plus three fixed 2.5" SATA bays for flexible storage
  • 600 W 80-PLUS Platinum single PSU with 100-240 V auto-ranging input

Specifications

BrandASRock Rack
Model1U4LW-ICX/2T
Form Factor1U Rackmount
WorkloadGeneral Purpose Server
CPU TypeSupports 3rd Gen Intel Xeon Scalable processors
CPU SocketLGA 4189
Installed CPUNo CPU Installed
Max Processors1
North BridgeIntel C621A
Memory Slots8 DIMM slots (1DPC)
Installed Memory SizeNo Memory Installed
Memory Type SupportedDDR4 3200
Installed HDDNo Storage Installed
PCI ExpressRear: 1 FHHL PCIe4.0 x16
First LANIntel X710-AT2
Max. LAN Speed10 Gigabit
3.5" Bays3 x Fixed 2.5" SATA drive bays
Hot-Swap Bays4 x Hot-swap 3.5" SATA drive bays
Front USB2 x USB3.0
VGA1
Rear USB2 x USB 3.2 Gen 1 Type A
Max. PowerSingle PSU, 600W, 80-PLUS Platinum, 100-240V, 50-60Hz

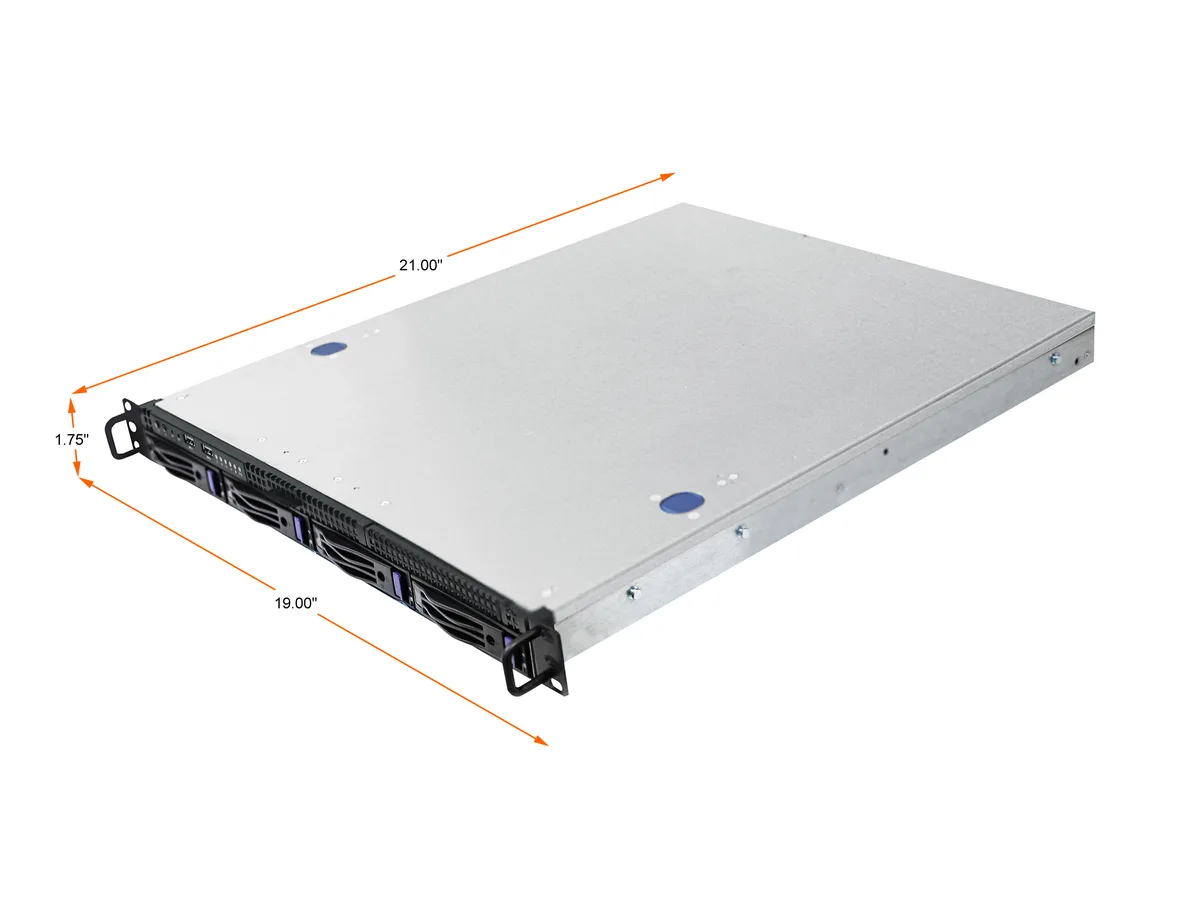

Dimensions1.75" x 19.00" x 21.00"
Shipping weight16.33 kg
Package size762 × 635 × 229 mm

Questions about this item

What does the single PCIe 4.0 x16 slot allow me to install?

One full-height, half-length expansion card such as a GPU, NIC or RAID controller running at PCIe 4.0 speeds.

How does the Intel X710-AT2 controller limit network throughput?

It provides two 10 Gigabit Ethernet ports over copper, capping each link at 10 Gbps.

Which drive sizes fit the fixed and hot-swap bays?

Three fixed 2.5" SATA drives and four hot-swap 3.5" SATA drives can be installed simultaneously.
