Silver 1U rackmount server chassis with eight front drive bays

ASRock Rack

ASRock Rack 1U4L4E-ROME/2T 1U barebone server 4 NVMe 4 SATA bays

SKU CH-TPH2-E0Z1D MPN 1U4L4E-ROME/2T

A 1U rackmount barebone supporting AMD EPYC 7002/7003 processors with eight DDR4 slots, four 2.5-inch NVMe/SATA bays, four 3.5-inch SATA bays, dual 10GbE and redundant 750W platinum PSUs

  • Form Factor1U Rackmount
  • WorkloadGeneral Purpose Server
  • CPU TypeSupports AMD EPYC 7003 (with AMD 3D V-Cache Technology*)/700
  • CPU SocketSocket SP3
  • Installed CPUNo CPU Installed
  • Max Processors1
  • 1U rackmount saves rack space while delivering server-class performance
  • Dual redundant Platinum 750 W power supplies keep the system running if one unit fails
  • Supports AMD EPYC 7003 and 7002 processors for flexible CPU choice
  • Eight DDR4 DIMM slots accept RDIMM, LRDIMM and 3DS modules up to 1 DPC
  • Four 2.5" NVMe bays and four 3.5" SATA bays provide mixed high-speed and capacity storage

General-purpose 1U server barebone

The ASRock Rack 1U4L4E-ROME/2T is a 1U rackmount barebone designed for general-purpose server workloads. It targets system integrators and IT teams building custom AMD EPYC 7002 or 7003 platforms. No CPU or memory is installed, so buyers select processors and DDR4 RDIMM, LRDIMM or 3DS modules to match their performance and budget targets.

Storage capacity and headroom

Eight hot-swap bays provide flexible density: four 2.5-inch slots accept NVMe PCIe3.0 x4 or SATA drives, while four 3.5-inch slots take SATA drives. The single M.2 socket adds a PCIe4.0 x4 or SATA 6Gb/s boot or cache device. Builds needing more than eight front drives or multiple GPU accelerators will exceed the internal space and the single FHHL PCIe4.0 x16 slot.

Build quality and daily connectivity

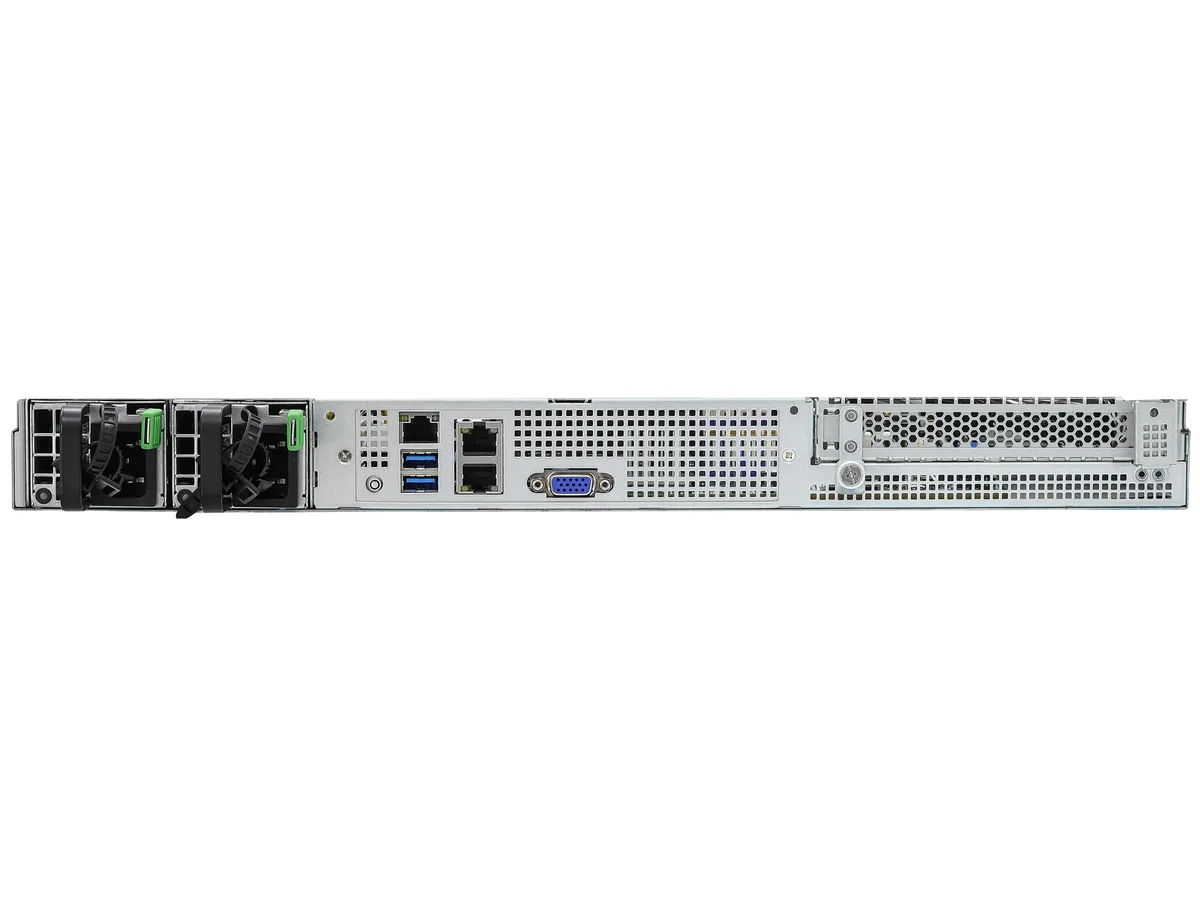

A redundant 1+1 Platinum 750W slim power supply supports continuous operation in rack environments. Dual 10GbE RJ45 ports from the Intel X710-AT2 controller handle high-throughput traffic, and a dedicated IPMI port enables out-of-band management. Rear I/O includes VGA and two USB 3.2 Gen 1 Type-A ports for local console access and peripheral attachment.

Highlights

  • 1U rackmount saves rack space while delivering server-class performance
  • Dual redundant Platinum 750 W power supplies keep the system running if one unit fails
  • Supports AMD EPYC 7003 and 7002 processors for flexible CPU choice
  • Eight DDR4 DIMM slots accept RDIMM, LRDIMM and 3DS modules up to 1 DPC
  • Four 2.5" NVMe bays and four 3.5" SATA bays provide mixed high-speed and capacity storage

Specifications

BrandASRock Rack
Model1U4L4E-ROME/2T
Form Factor1U Rackmount
WorkloadGeneral Purpose Server
CPU TypeSupports AMD EPYC 7003 (with AMD 3D V-Cache Technology*)/7002 Series Processors
CPU SocketSocket SP3
Installed CPUNo CPU Installed
Max Processors1
CPU Features*A BIOS update is required to support AMD EPYC 7003 series processors with AMD 3D V-Cache Technology
Memory Slots8 x 288Pin
Installed Memory SizeNo Memory Installed
Memory Type SupportedSupports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS
Installed HDDNo Storage Installed
GPU/VPUAspeed AST2500
PCI Express1 FHHL PCIe4.0 x16 via RB1UX16_G4
First LANIntel X710-AT2
Max. LAN Speed10 Gigabit
Hot-Swap Bays4 Hot-swap 2.5" NVMe (PCIe3.0 x4)/SATA drive bays, 4 Hot-swap 3.5" SATA drive bays
VGA1
Rear USB2 x USB 3.2 Gen 1 Type-A
RJ452 x RJ45 (10GbE), 1 dedicated IPMI
Max. Power1+1 Platinum 750W Slim PSU
TemperatureOperation temperature: 10°C ~ 35°C
Non operation temperature: -40°C ~ 70°C
HumidityNon operation humidity: 20% ~ 90% ( Non condensing)
Dimensions26.63" x 17.24" x 1.71"
Shipping weight22.45 kg
Package size980 × 635 × 230 mm

Questions about this item

Will my existing DDR4 RDIMM modules fit the 288-pin slots in this barebone?

Yes, the board accepts DDR4 288-pin RDIMM, LRDIMM and 3DS modules across eight slots, so standard DDR4 RDIMMs you already own will install directly.

How can I confirm the dual 10 GbE ports from the Intel X710-AT2 are active after assembly?

Check the IPMI interface or BIOS for link lights on the two RJ45 ports; both should show 10 GbE connection once cables are seated and drivers load.

Does the chassis include drive caddies for the 2.5-inch NVMe and 3.5-inch SATA bays, or must I buy them separately?

The barebone ships with caddies for all four 2.5-inch NVMe/SATA bays and all four 3.5-inch SATA bays; no extra caddies are required.
