ASRock Rack
ASRock Rack 1U2N2G-AM5/2T barebone server 1U dual-node AM5 1600W
A 1U dual-node barebone chassis with redundant 1600 W power, each node supporting one AM5 processor up to 120 W, four DDR5 5600 ECC slots, a PCIe 5.0 x16 slot, M.2 2280, and dual 10 GbE
- Form Factor1U Rackmount
- WorkloadGeneral Purpose Server
- CPU TypeSupports AMD EPYC 4005/4004 and AMD Ryzen 9000/8000/7000 Ser
- Installed CPUNo CPU Installed
- Max Processors1
- CPU FeaturesThermal Design Power Up to 120W
- Dual-node density in 1U saves rack space
- Redundant 1600W Platinum CRPS keeps systems running
- Supports EPYC 4004, 4005 and Ryzen 7000, 8000, 9000 CPUs
- Four DDR5-5600 ECC slots per node up to 192GB
- Dual 10GbE Broadcom BCM57416 plus PCIe 5.0 x16 per node
Dual-node density in 1U

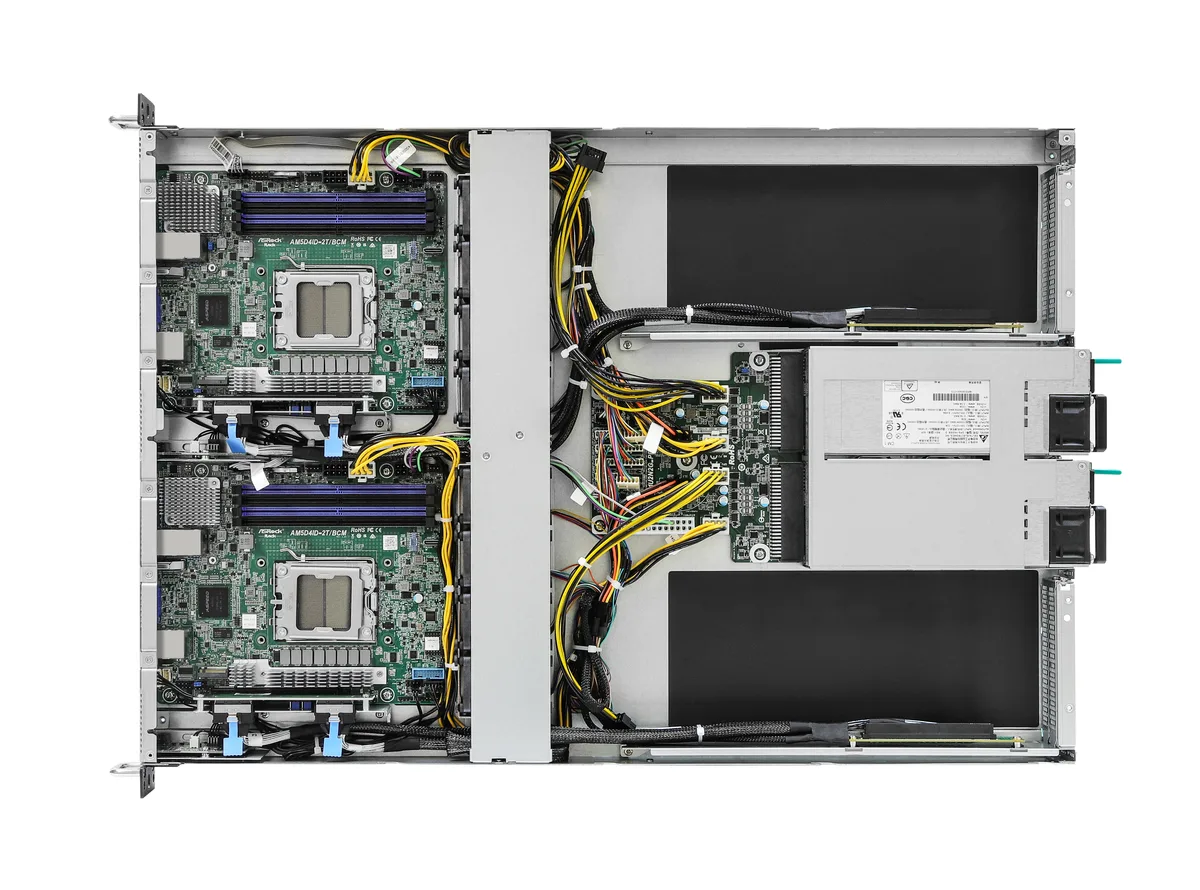

The ASRock Rack 1U2N2G-AM5/2T fits two independent server nodes into a single 1U rackmount chassis. Each node accepts one AM5 socket processor from the AMD EPYC 4005 or 4004 series, or from the Ryzen 9000, 8000 and 7000 families, with a thermal ceiling of 120 W. The platform targets general-purpose workloads that benefit from high compute density.
PCIe 5.0 expansion and DDR5 5600 memory limits
Each node provides one full-height full-length dual-slot PCIe 5.0 x16 slot that can bifurcate into two single-slot x8 links, and one M-key M.2 slot wired for PCIe 4.0 x4 in the 2280 form factor. Memory capacity stops at 192 GB across four 288-pin DDR5 5600 UDIMM slots with ECC support, so configurations needing more memory or faster DRAM speeds cannot be satisfied.
Redundant CRPS power and front I/O

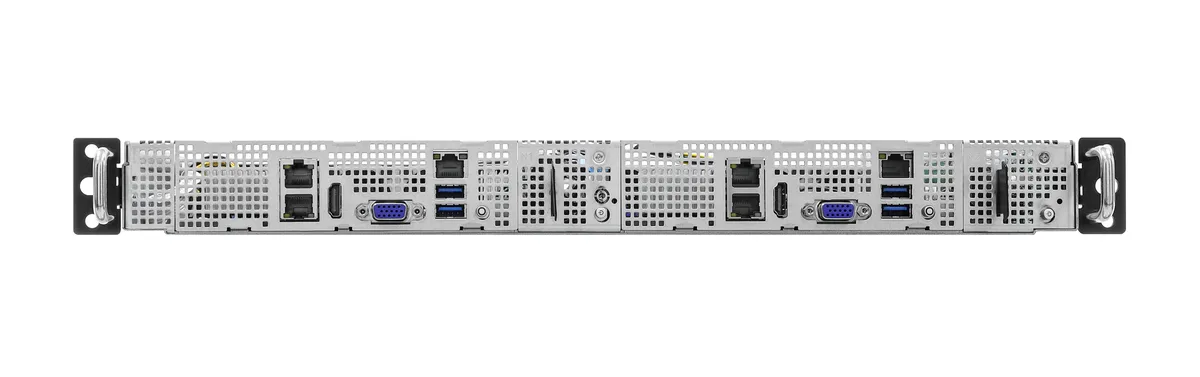

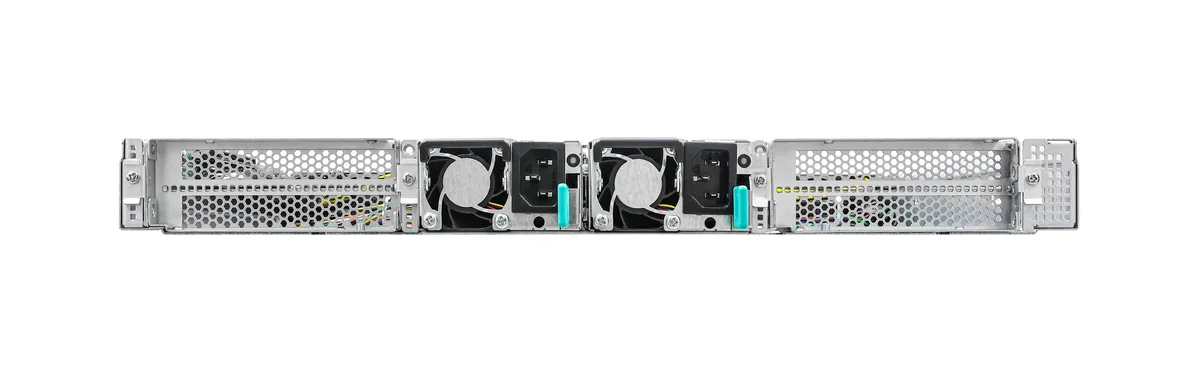

A 1+1 CRPS power supply delivers 1600 W at 200–240 V input or 1000 W at 100–127 V, with 80 PLUS Platinum efficiency. Front access includes two USB 3.2 Gen 1 ports and a VGA connector per node, while dual RJ45 ports driven by a Broadcom BCM57416 controller provide 10 Gigabit Ethernet. Eight hot-swap PWM fans handle cooling, and IPMI remote management is built in.
Highlights
- Dual-node density in 1U saves rack space
- Redundant 1600W Platinum CRPS keeps systems running
- Supports EPYC 4004, 4005 and Ryzen 7000, 8000, 9000 CPUs
- Four DDR5-5600 ECC slots per node up to 192GB
- Dual 10GbE Broadcom BCM57416 plus PCIe 5.0 x16 per node
Specifications
| Brand | ASRock Rack |
|---|---|
| Model | 1U2N2G-AM5/2T |
| Form Factor | 1U Rackmount |
| Workload | General Purpose Server |
| CPU Type | Supports AMD EPYC 4005/4004 and AMD Ryzen 9000/8000/7000 Series Processors |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| CPU Features | Thermal Design Power Up to 120W |
| Memory Slots | 4 x 288Pin |
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 192GB |
| Memory Type Supported | DDR5 5600 |
| ECC Supported | Yes |
| Installed HDD | No Storage Installed |
| M.2 | 1 M-key (PCIe4.0 x4), supports 2280 form factor [CPU] |
| PCI Express | 1 FHFL dual-slot PCIe5.0 x16 or 2 FHFL single-slot PCIe5.0 x8 |
| First LAN | Broadcom BCM57416 |
| Max. LAN Speed | 10 Gigabit |
| Front USB | 2 x USB 3.2 Gen 1 |
| VGA | 1 |
| RJ45 | 2 |
| Max. Power | 1+1 CRPS 1000W @100-127Vac input / 1600W @200-240Vac input |
| BIOS Features | AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM Plug and Play, ACPI 5.1 compliance wake up events, SMBIOS 2.3 |
| Fans | 8 PWM Hot-swap 40x56 mm fans |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
| Dimensions | 1.7" x 25.6" x 17.2" |
| Shipping weight | 20.91 kg |
| Package size | 869 × 622 × 231 mm |
Questions about this item
Should I pick an EPYC 4005/4004 or a Ryzen 9000/8000/7000 CPU for this AM5 barebone?
Choose EPYC 4005/4004 for server-grade features and validated ECC support, or Ryzen 9000/8000/7000 for higher clock speeds and core counts in single-threaded workloads; both fit the LGA 1718 socket and stay within the 120 W TDP limit.
What does the 120 W TDP ceiling mean for CPU choice in a 1U dual-node chassis?
It limits you to processors rated at or below 120 W; any EPYC 4005/4004 or compatible Ryzen 9000/8000/7000 part within that envelope will run without throttling, provided the 1+1 CRPS supply delivers 1600 W at 200-240 V input.
How does the PCIe 5.0 x16 slot perform when split into two x8 links for GPU or accelerator cards?
The slot operates as one full-height full-length dual-slot PCIe 5.0 x16 or bifurcates to two single-slot x8 links, each delivering 5.0 GT/s per lane directly from the CPU for low-latency accelerator or storage add-in cards.
