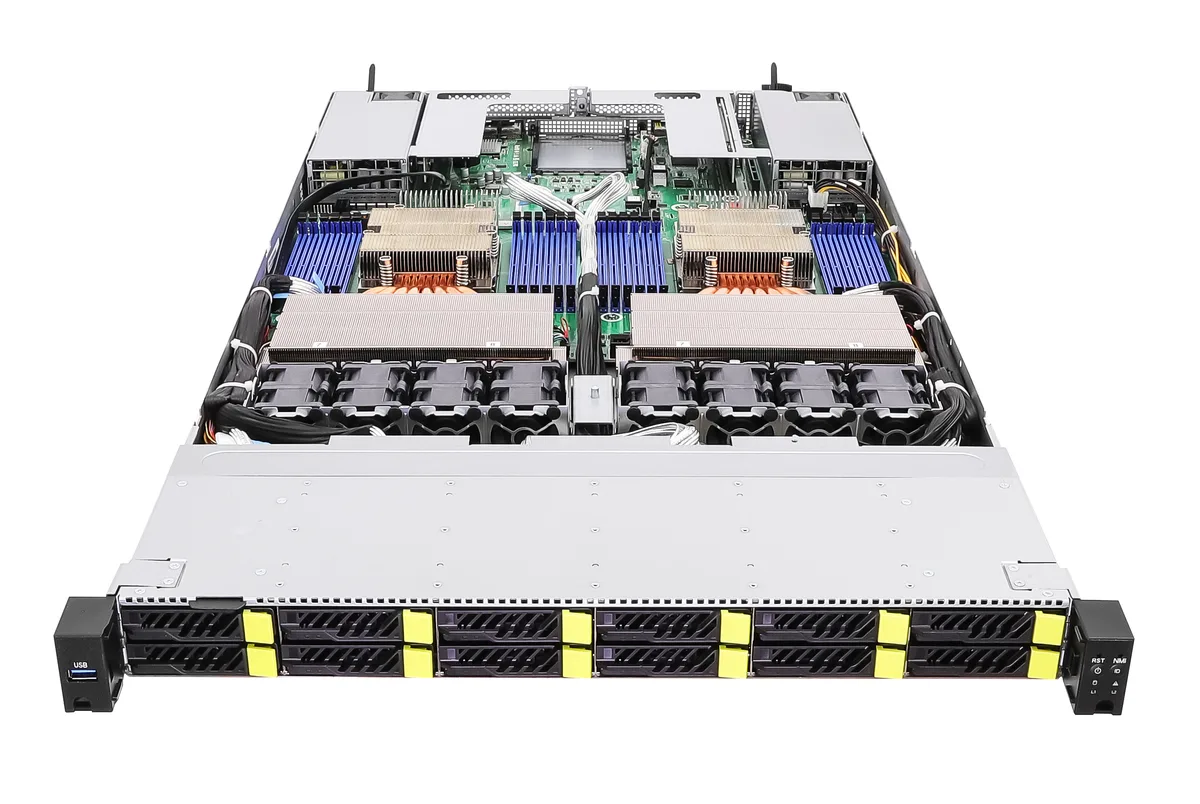

ASRock Rack 1U12E-TURIN2/EVAC barebone server 1U dual SP5 24 DDR5 12 NVMe 2.5 2000W
1U rackmount barebone for dual AMD EPYC SP5 CPUs with 24 DDR5 slots, 12 hot-swap NVMe bays and 2000W redundant power
- Form Factor1U Rackmount
- WorkloadGeneral Purpose Server
- CPU TypeAMD EPYC 9005 & 9004 Series
- CPU SocketSocket SP5
- Installed CPUNo CPU Installed
- Max Processors2
- Dual AMD EPYC sockets scale to 360W TDP for dense compute
- 24 DDR5 6400 RDIMM slots deliver 12 TB maximum memory capacity
- 12 hot-swap 2.5" NVMe bays at PCIe5.0 x4 each for fast storage density
- 2000W 80-PLUS Platinum 1+1 CRPS redundancy protects uptime
- 2 FHHL PCIe5.0 x16 slots plus OCP NIC 3.0 enable flexible acceleration
1U Dual-Socket SP5 Barebone Server
The ASRock Rack 1U12E-TURIN2/EVAC is a 1U rackmount barebone server designed for dual AMD EPYC 9005 and 9004 series processors. It supports up to two CPUs with a thermal design power of up to 360W each, conditionally supported. The platform targets general-purpose server workloads requiring high core density and memory capacity.
Suits high-density compute, not GPU-heavy builds
This server suits deployments needing twelve hot-swap 2.5-inch NVMe drive bays and twenty-four DDR5 6400 RDIMM slots in a 1U form factor. It is not for buyers who need more than two full-height PCIe 5.0 x16 expansion slots or onboard networking faster than 1 Gigabit Ethernet. The Aspeed AST2600 provides basic graphics only.
Twelve PCIe 5.0 NVMe bays set storage density
The single specification that decides fit is the twelve hot-swap 2.5-inch drive bays wired for PCIe 5.0 x4 NVMe. This density defines the storage ceiling for the chassis. Buyers needing more bays or different drive interfaces must choose a different platform.
Highlights
- Dual AMD EPYC sockets scale to 360W TDP for dense compute
- 24 DDR5 6400 RDIMM slots deliver 12 TB maximum memory capacity
- 12 hot-swap 2.5" NVMe bays at PCIe5.0 x4 each for fast storage density
- 2000W 80-PLUS Platinum 1+1 CRPS redundancy protects uptime
- 2 FHHL PCIe5.0 x16 slots plus OCP NIC 3.0 enable flexible acceleration
Specifications
| Brand | ASRock Rack |
|---|---|
| Model | 1U12E-TURIN2/EVAC |
| Form Factor | 1U Rackmount |
| Workload | General Purpose Server |
| CPU Type | AMD EPYC 9005 & 9004 Series |
| CPU Socket | Socket SP5 |
| Installed CPU | No CPU Installed |
| Max Processors | 2 |
| CPU Features | Thermal Design Power Up to 360W* *360W is conditionally supported |
| Memory Slots | 24 x 288Pin |
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 12TB |
| Memory Type Supported | DDR5 6400 |
| Registered | Yes |
| Installed HDD | No Storage Installed |
| M.2 | 1 M-key (PCIe3.0 x4), supports 2280/2260/2242/2230 form factor [CPU0] 1 M-key (PCIe3.0 x4), supports 2280/2242 form factor [CPU1] |
| GPU/VPU | Aspeed AST2600 |
| PCI Express | Rear: 2 FHHL PCIe5.0 x16 [CPU0][CPU1] |
| First LAN | Intel I350 |
| Max. LAN Speed | 1 Gigabit |
| Hot-Swap Bays | 12 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays |
| Buttons | Power button w/ LED, ID button w/ LED, System reset |
| LEDs | HDD Activity, LAN 1/2, System fault |
| Front USB | 2 x USB 3.2 Gen 1 |
| COM | 1 |
| VGA | 1 |
| Rear USB | 2 x USB 3.2 Gen 1 |
| RJ45 | 2 |
| Max. Power | 1+1 CRPS 1000W @100-127Vac input / 2000W @200-240Vac input |
| BIOS Features | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM ASRock Rack Instant Flash, ACPI 6.4 and abouve compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Fans | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Hardware Monitor | CPU, MB, Card side Temperature Sensing |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
| Shipping weight | 27.22 kg |
| Package size | 1067 × 635 × 305 mm |
Questions about this item
Does the 1U12E-TURIN2/EVAC ship with any CPUs, memory or drives, and what must I add to make it run?
The barebone arrives without any CPUs, DDR5 6400 RDIMMs or NVMe drives. You must supply up to two AMD EPYC 9005 or 9004 processors, registered DDR5 6400 memory for the 24 DIMM slots, and NVMe SSDs for the 12 hot-swap 2.5-inch bays. The 2000W redundant power supply and Aspeed AST2600 management GPU are already installed.
Which AMD EPYC 9005 or 9004 models fit the dual SP5 sockets and the 360W TDP limit?
Both sockets accept any AMD EPYC 9005 or 9004 series processor, including 3D V-Cache variants, provided each CPU does not exceed the conditionally supported 360W TDP. Choose core counts and clock speeds that match your workload while staying within that thermal envelope.
What usable throughput can I expect from the 12 NVMe bays wired for PCIe 5.0 x4 once the server is populated?
Each of the 12 front 2.5-inch bays delivers a full PCIe 5.0 x4 link to the CPU, so every installed NVMe SSD can run at its rated PCIe 5.0 x4 speed without sharing bandwidth with other bays.
