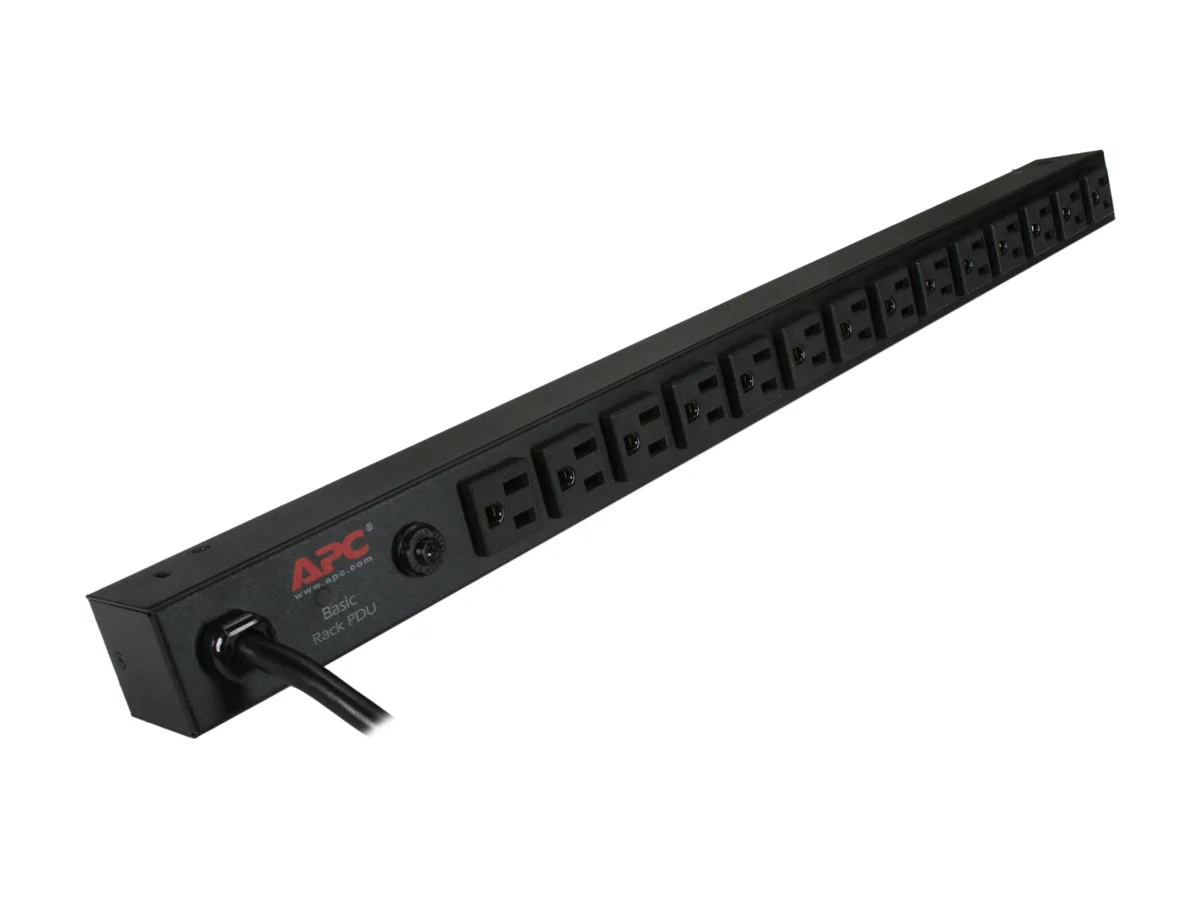

Black vertical PDU with fourteen NEMA 5-15R outlets and a NEMA 5-15P plug on a 12 ft cord

APC

APC AP9567 PDU Basic 100V-120V 15A 14 Outlets 0U Vertical

SKU CH-M145-1WW8T MPN AP9567

Distributes 120 V power to fourteen NEMA 5-15R outlets from a single 15 A NEMA 5-15P input in a zero-U vertical rackmount form factor

  • TypeBasic
  • CertificationscUL Recognized,CSA,METI Denan,UL 1363,UL Recognized
  • Input Voltage100V,120V
  • Input Frequency50/60 Hz
  • Maximum Input Current15A
  • Regulatory Derated Input Current12A
  • 14 outlets distribute power to multiple rack devices
  • 0U vertical mounting saves horizontal rack space
  • 12 ft cord reaches distant power sources
  • cUL, CSA, METI Denan and UL 1363 certifications confirm safety compliance
  • 8 kVA capacity supports up to 15 A input current

Purpose-built rack power

The APC AP9567 is a basic vertical power distribution unit designed for 100V-120V environments. It delivers 14 NEMA 5-15R outlets from a single NEMA 5-15P input plug rated at 15A maximum input current. The 0U form factor mounts in the zero-U space of a standard rack, preserving rack units for IT equipment.

Included mounting hardware changes installation

The package supplies rack mounting brackets, a toolless mounting kit and an installation guide. These accessories enable vertical mounting without consuming rack units and without requiring tools. The 11.8 ft input cord provides reach to distant wall or floor outlets, while the black finish matches typical rack aesthetics.

15A derated input decides fit

Regulatory derating limits continuous draw to 12A, yielding 1.4 kW usable capacity despite the 1.8 kVA rating. Builders whose gear exceeds 12A continuous must choose a higher-rated PDU. The unit carries cUL Recognized, CSA, METI Denan, UL 1363 and UL Recognized certifications for code compliance.

Highlights

  • 14 outlets distribute power to multiple rack devices
  • 0U vertical mounting saves horizontal rack space
  • 12 ft cord reaches distant power sources
  • cUL, CSA, METI Denan and UL 1363 certifications confirm safety compliance
  • 8 kVA capacity supports up to 15 A input current

Specifications

BrandAPC
ModelAP9567
TypeBasic
CertificationscUL Recognized,CSA,METI Denan,UL 1363,UL Recognized
Input Voltage100V,120V
Input Frequency50/60 Hz
Maximum Input Current15A
Regulatory Derated Input Current12A
Input Connector(s)NEMA 5-15P
Cord Length12 ft
Output Voltage100V,120V
Output Watts (VA)1800 VA
Output Connector(s)(14) NEMA 5-15R
FeaturesAPC Basic Rack 1.8kVA PDU - 14 x NEMA 5-15R - 1.8kVA - Zero U Rack-mountable
Dimensions7.000
Weight5.9
Shipping weight6.49 kg
Package size660 × 508 × 229 mm

Questions about this item

Does the AP9567 have any user-serviceable parts or filters that will need replacement over time?

The AP9567 is a basic power distribution unit with no user-serviceable parts, internal filters, or replaceable components. It provides 14 NEMA 5-15R outlets from a single NEMA 5-15P input.

What is the sustained current limit before the 15 A input trips under continuous load?

The regulatory derated input current is 12 A for continuous operation. The unit supports up to 1.4 kW input and 1.8 kVA output across all 14 outlets.

How much heat or noise does the AP9567 generate when running all day?

As a passive basic PDU with no fans or active electronics, the AP9567 produces no audible noise and negligible heat beyond normal conductor losses at up to 12 A continuous load.
