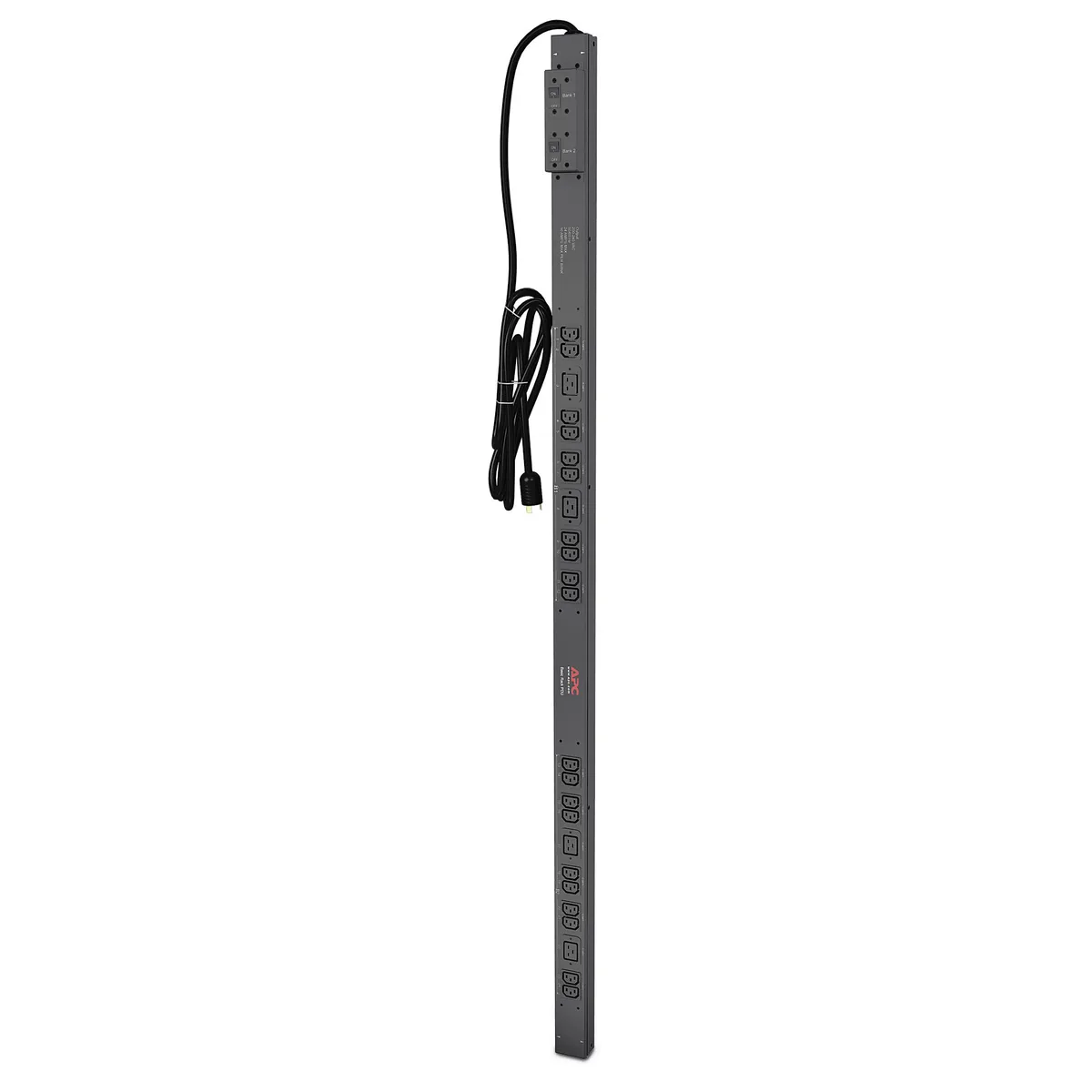

Black vertical metal strip with twenty C13 and four C19 outlets plus a NEMA L6-30P plug on a ten foot cord

APC

APC AP7541 Basic PDU 200-230V 30A 20×C13 4×C19 0U

SKU CH-SHVJ-S1TZ4 MPN AP7541

Distributes 200–230 V power through twenty C13 and four C19 outlets from a single NEMA L6-30P input in a zero-U vertical rackmount form factor

  • TypeBasic
  • CertificationscUL Listed,CSA C22.2 No. 60950-1-03,METI Denan,UL 60950-1,UL
  • ROHSRoHS 7b Exemption
  • Input Voltage200V,208V,230V
  • Input Frequency50/60 Hz
  • Maximum Input Current30A
  • Delivers 4.99 kVA capacity with 30 A maximum input current
  • Supplies 20 C13 and 4 C19 outlets for dense rack equipment
  • Vertical 0U mounting saves horizontal rack space
  • 10 ft cord with NEMA L6-30P plug reaches distant power sources
  • Certified to UL 60950-1 and CSA C22.2 No. 60950-1-03 standards

30 A Vertical PDU for High-Density Racks

The APC AP7541 is a zero-U basic power distribution unit built for 200 V to 230 V three-phase environments. It mounts vertically in a server cabinet to supply up to 24 outlets without consuming horizontal rack space. This unit targets administrators who need dense C13 and C19 receptacle counts for network and compute gear.

24 A Derated Limit on a NEMA L6-30P Feed

The input cord uses a NEMA L6-30P plug rated for 30 A, yet regulatory derating restricts continuous draw to 24 A. At 208 V this yields a practical ceiling of roughly 4.99 kVA across all outlets. The 9.8 ft cord length sets the maximum reach from the branch circuit to the rack.

Twenty C13 and Four C19 Outlets Define Compatibility

The outlet mix of twenty IEC 320 C13 and four IEC 320 C19 sockets decides which devices can connect directly. Equipment requiring other connector types or a higher per-outlet rating will need adapter cables or a different PDU model.

Highlights

  • Delivers 4.99 kVA capacity with 30 A maximum input current
  • Supplies 20 C13 and 4 C19 outlets for dense rack equipment
  • Vertical 0U mounting saves horizontal rack space
  • 10 ft cord with NEMA L6-30P plug reaches distant power sources
  • Certified to UL 60950-1 and CSA C22.2 No. 60950-1-03 standards

Specifications

BrandAPC
ModelAP7541
TypeBasic
CertificationscUL Listed,CSA C22.2 No. 60950-1-03,METI Denan,UL 60950-1,UL Listed
ROHSRoHS 7b Exemption
Input Voltage200V,208V,230V
Input Frequency50/60 Hz
Maximum Input Current30A
Regulatory Derated Input Current24A
Input Connector(s)NEMA L6-30P
Cord Length10 ft
Output Voltage200V,208V
Output Watts (VA)4992 VA
Output Connector(s)(20) IEC 320 C13
(4) IEC 320 C19
FeaturesAPC Basic Rack 4.992kVA PDU - 20 x IEC 320-C13, 4 x IEC 320-C19 - 4.99kVA - Zero U Rack-mountable
Dimensions4.000
Weight12.3
Shipping weight10.14 kg
Package size2134 × 152 × 127 mm

Questions about this item

Should I choose the C13 or C19 outlets for my servers?

The PDU supplies twenty C13 outlets and four C19 outlets; use C13 for standard server power cords and C19 for equipment that needs a higher-current inlet.

What does the 4.992 kVA rating mean for my rack?

It delivers up to 4.992 kVA at 200-208 V output, which equals the 30 A input derated to 24 A continuous per regulatory limits.

How does the NEMA L6-30P input affect installation?

The 30 A locking plug requires a matching 200-230 V 30 A receptacle on your UPS or wall circuit; the 9.8 ft cord reaches most rack positions.
