Silver metal 172x55mm AC axial case fan with two wires

Zyvpee

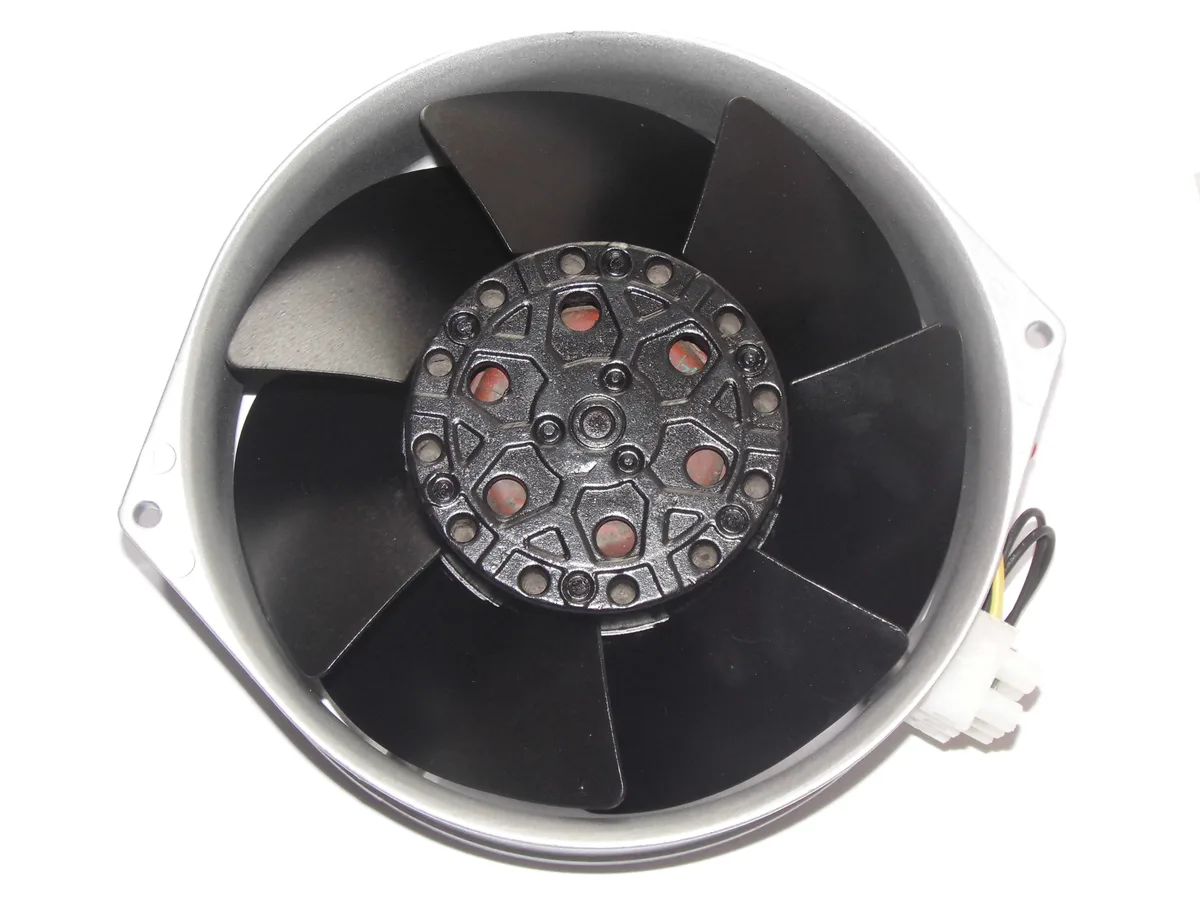

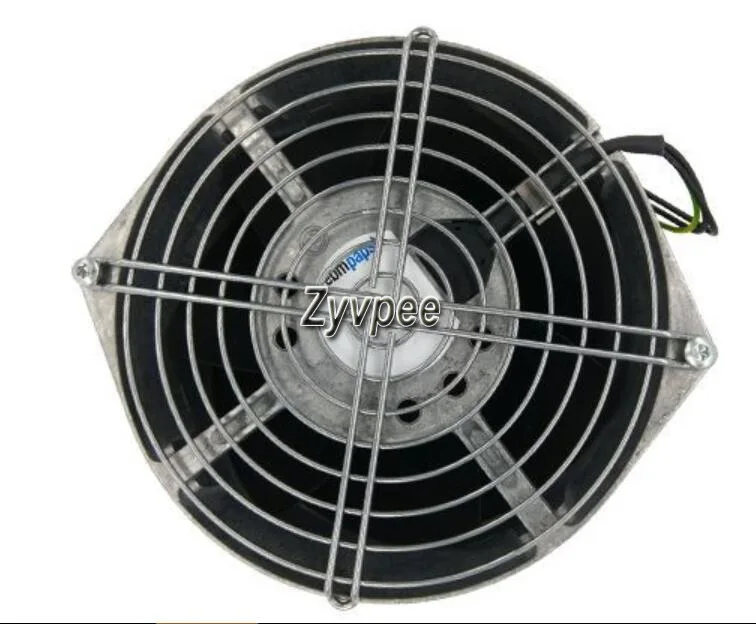

Zyvpee W2S130-AA03-71 172*55mm 230V AC case fan

SKU CH-0H30-W5NYP

A 172 mm AC axial case fan running at 2800 to 3250 RPM with over 80 CFM airflow on a two-wire 230 V connection

  • TypeCase Fan
  • CompatibilityAC axial fan
  • Fan Size170mm
  • RPM2500-2999 RPM
  • Air Flow>80 CFM
  • Power Connector2 Wires
  • Delivers over 80 CFM airflow for effective case cooling
  • Runs at 2800 RPM on 50 Hz or 3250 RPM on 60 Hz
  • Consumes 45 W at 50 Hz and 39 W at 60 Hz
  • IP20 rating protects internal parts from solid objects over 12 mm
  • Compact 172 mm by 55 mm frame fits standard 170 mm mounts

Industrial-grade 172 mm AC axial fan

The Zyvpee W2S130-AA03-71 is a 172 mm by 55 mm AC axial fan designed for 230 V mains operation. It targets system integrators and maintenance engineers who need direct line-voltage cooling in server chassis, industrial enclosures or telecom cabinets. The two-wire connection simplifies wiring where a DC power supply is absent or impractical.

Replaces legacy 170 mm frame fans

This unit serves as a drop-in replacement for older 170 mm frame AC fans that have reached end of life or run out of spec. The upgrade is worthwhile when the existing fan can no longer deliver the rated airflow above 80 CFM or when bearing noise exceeds acceptable thresholds for the installation environment.

Fits 172 mm cut-outs with two-wire mains feed

The 172 mm by 55 mm footprint matches standard 170 mm mounting patterns, while the IP20 rating confirms protection against solid objects over 12 mm. No external driver or DC converter is required, freeing up internal space that a separate power supply would otherwise occupy. The silver metal frame provides structural rigidity in high-vibration racks.

Highlights

  • Delivers over 80 CFM airflow for effective case cooling
  • Runs at 2800 RPM on 50 Hz or 3250 RPM on 60 Hz
  • Consumes 45 W at 50 Hz and 39 W at 60 Hz
  • IP20 rating protects internal parts from solid objects over 12 mm
  • Compact 172 mm by 55 mm frame fits standard 170 mm mounts

Specifications

SeriesW2S130-AA03-71
ModelW2S130-AA03-71
TypeCase Fan
CompatibilityAC axial fan
Fan Size170mm
RPM2500-2999 RPM
Air Flow>80 CFM
Power Connector2 Wires
ColorSilver
LEDNon-LED
FeaturesAC Axial Fan
Dimensions172*55mm

Questions about this item

Will the 172 mm by 55 mm frame fit my 170 mm fan opening?

The housing measures 172 mm square by 55 mm deep, matching standard 170 mm mounting holes.

How do I wire the two leads to 230 V AC mains safely?

Connect the two wires to a 230 V 50/60 Hz supply; the fan draws 45 W at 50 Hz and 39 W at 60 Hz.

When should I plan to replace the sleeve bearings?

Expect bearing wear after several years of continuous 2800–3250 RPM operation; monitor for noise or speed drop.
