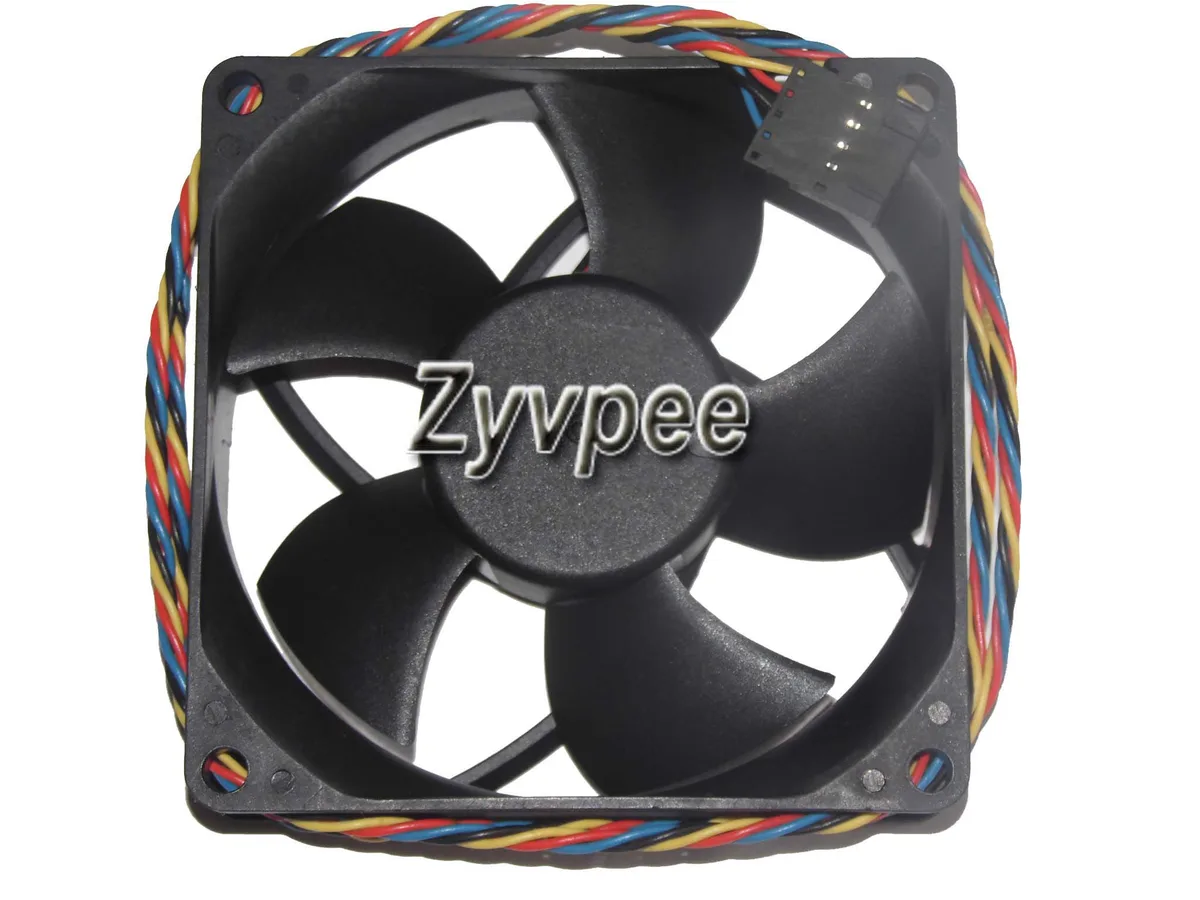

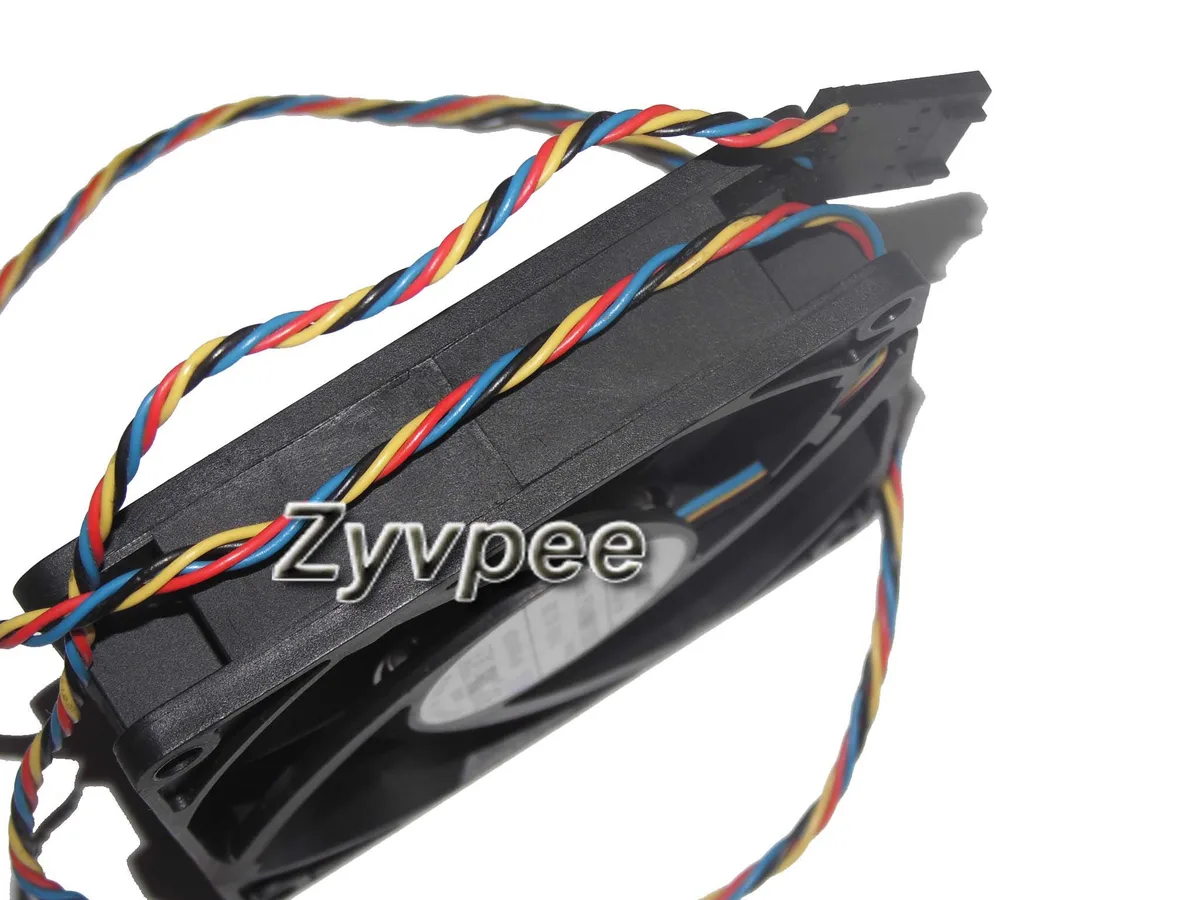

Black 80mm square case fan, 20mm thick, 4-pin connector

Zyvpee

Zyvpee PVA080F12H -P02-AE 80*20mm 12V 0.36A 45CFM case fan

SKU CH-Q32N-75AKA

An 80 mm ball-bearing case fan delivering 45 CFM airflow at 12 V with a 4-pin PWM connector

  • TypeCase Fan
  • CompatibilityCase
  • Bearing TypeBall
  • Power Connector4 Pin
  • ColorBlack
  • LEDNon-LED
  • 80 mm square frame fits tight case spaces
  • 45 CFM airflow moves heat through restricted vents
  • Ball bearing design resists wear in continuous server duty
  • 4-pin PWM connector enables precise speed control
  • 12 V 0.36 A draw keeps power load low

Compact 80 mm server fan

The Zyvpee PVA080F12H -P02-AE is an 80*20 mm case fan built for servers and compact chassis. It runs on 12 V and draws 0.36 A through a 4-pin power connector. Ball-bearing construction and a black non-LED frame keep the focus on airflow rather than lighting.

Replaces noisy 2-wire units

This model upgrades older 2-wire fans that lack speed feedback, adding PWM control so the system can regulate RPM under changing loads. The jump is worth it when a rack or small-form-factor build needs precise, automatic cooling without manual voltage tweaks.

Steady 45 CFM under load

Rated at 45 CFM, the fan maintains consistent airflow during sustained workloads instead of spiking only in short bursts. Ball bearings resist wear from continuous operation, and the 4-wire interface lets the motherboard keep speeds stable when temperatures climb.

Highlights

  • 80 mm square frame fits tight case spaces
  • 45 CFM airflow moves heat through restricted vents
  • Ball bearing design resists wear in continuous server duty
  • 4-pin PWM connector enables precise speed control
  • 12 V 0.36 A draw keeps power load low

Specifications

SeriesPVA080F12H
ModelPVA080F12H
TypeCase Fan
CompatibilityCase
Bearing TypeBall
Power Connector4 Pin
ColorBlack
LEDNon-LED
FeaturesDC square Cooler
Dimensions80*80*20mm

Questions about this item

Will the 80mm square frame with 20mm thickness fit my case's 80mm mounting holes?

The fan measures 80 by 80 by 20mm so it matches standard 80mm case mounts with four screw holes on the corners.

How do I connect the 4-pin PWM connector to my motherboard?

Plug the 4-pin header into a 4-pin fan header on the board; the extra pin carries the PWM signal for speed control.

When should I expect to replace the ball-bearing fan?

Ball bearings typically last years of continuous use; replace the fan if noise increases or airflow drops below the rated 45CFM.
