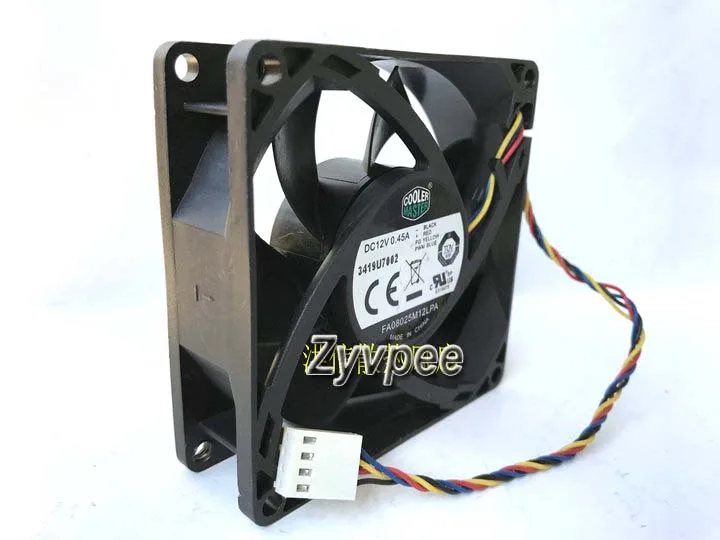

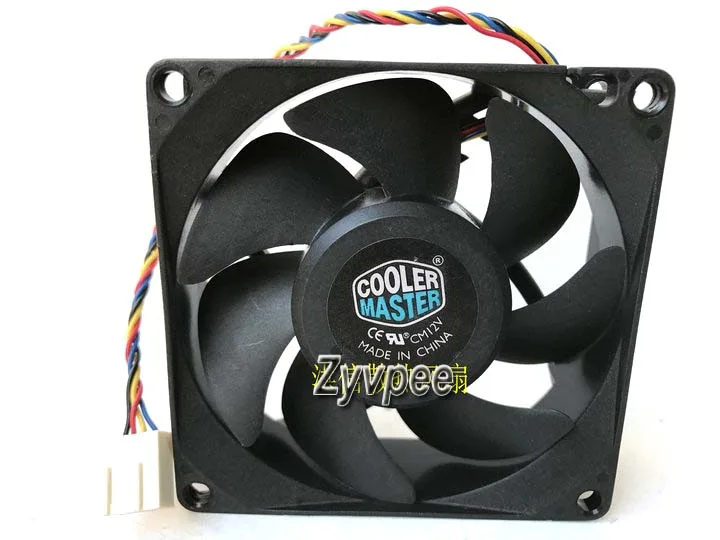

Black 80mm square PWM case fan with four-pin connector

Zyvpee

Zyvpee FA08025M12LPA 80*25mm 4 Pin PWM case fan

SKU CH-B2HB-TWXMT

An 80 mm square case fan with 4-pin PWM control and ball bearing for 12 V systems

  • TypeCase Fan
  • CompatibilityCase
  • Bearing TypeBall
  • Power Connector4 Pin
  • ColorBlack
  • LEDNon-LED
  • 4-pin PWM connector enables precise speed control
  • 80 mm square frame fits standard case mounts
  • 25 mm thickness suits slim chassis builds
  • Ball bearing design supports continuous operation
  • 12 V 0.45 A rating matches typical motherboard headers

Zyvpee 80 mm PWM case fan

The Zyvpee FA08025M12LPA is an 80 mm square frame case fan with a 25 mm thickness. It runs on 12 V DC at 0.45 A and uses a 4-pin PWM connector for speed control. The black non-LED housing uses a ball bearing for rotation.

Suits builds with 80 mm mounts and 4-pin headers

This fan fits cases or coolers designed for the 80×80 mm footprint and a 4-pin PWM header. Builds that only offer 3-pin voltage control cannot use the PWM function. Systems needing a larger frame or different mounting pattern cannot use this unit directly.

80×80×25 mm frame with 4-pin PWM

The physical dimensions of 80 mm by 80 mm by 25 mm and the 4-pin PWM power connector are the single specification that decides fit. Verify the case or cooler accepts this exact frame size and connector before purchase.

Highlights

  • 4-pin PWM connector enables precise speed control
  • 80 mm square frame fits standard case mounts
  • 25 mm thickness suits slim chassis builds
  • Ball bearing design supports continuous operation
  • 12 V 0.45 A rating matches typical motherboard headers

Specifications

SeriesFA08025M12LPA
ModelFA08025M12LPA
TypeCase Fan
CompatibilityCase
Bearing TypeBall
Power Connector4 Pin
ColorBlack
LEDNon-LED
FeaturesDC square Cooler
Dimensions80*80*25mm

Questions about this item

Which 80*25mm version should I pick for my case?

The FA08025M12LPA is the single 80*25mm model listed; it uses a 4-pin PWM connector and ball bearing, so choose it if your motherboard has a 4-pin fan header and you want speed control.

What does the 12 V 0.45 A rating mean once the fan is installed?

It draws 0.45 A from a 12 V rail, so the motherboard header must supply at least that current for reliable start-up and full-speed operation.

How does the 4-pin PWM interface limit fan control in practice?

The 4-pin PWM header lets the motherboard vary speed via duty cycle; the fan will not spin below the motherboard’s minimum duty setting and cannot be voltage-controlled on a 3-pin header.
