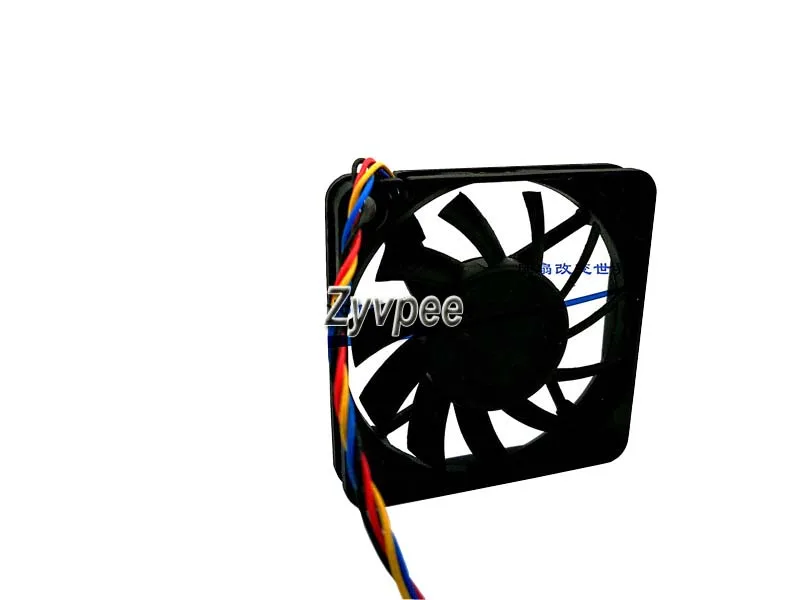

Black 60mm square case fan 10mm thick with 4-pin PWM connector

Zyvpee

Zyvpee EFB0612HHA 60mm 10mm PWM case fan

SKU CH-6SY8-JVRH0

A 60 mm PWM case fan with ball bearing and four-pin control for compact cooling

  • TypeCase Fan
  • CompatibilityCase
  • Bearing TypeBall
  • Power Connector4 Pin
  • ColorBlack
  • LEDNon-LED
  • PWM control adjusts speed precisely via 4-pin connector
  • Ball bearing ensures durable rotation for long service life
  • Compact 60x10mm frame fits tight case spaces
  • 12V 0.25A draw keeps power consumption low
  • Non-LED black design suits stealth builds without distraction

Compact 60 mm PWM case fan

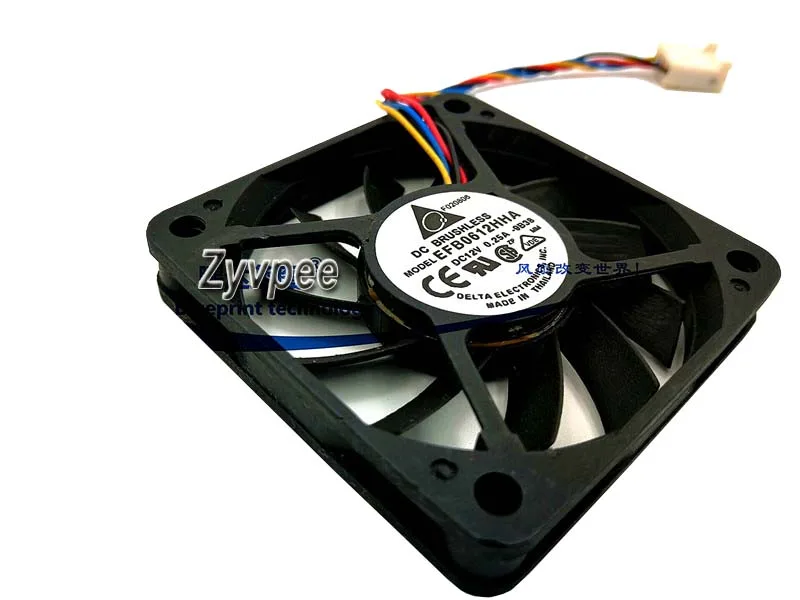

The Zyvpee EFB0612HHA is a 60 mm square frame fan with a 10 mm thickness designed for tight chassis spaces. Its four-pin PWM connector allows the motherboard to regulate speed automatically based on temperature. The unit runs on 12 V DC and draws 0.25 A, making it suitable for small-form-factor builds or targeted component cooling.

Sustained-load behaviour with ball bearing

A ball bearing supports continuous rotation with consistent friction characteristics over long operating periods. The PWM control maintains airflow during extended workloads without the voltage drop-off seen in fixed-speed alternatives. DC square cooler geometry directs air across restricted pathways such as drive cages or voltage-regulator heatsinks.

Black non-LED frame and four-pin mounting

The all-black plastic housing carries no illumination, keeping the interior neutral for any colour scheme. Four corner holes accept standard 60 mm screw patterns for straightforward installation. The 4-wire lead reaches most board headers in compact layouts, and the ball bearing construction resists dust ingress in filtered or positive-pressure cases.

Highlights

  • PWM control adjusts speed precisely via 4-pin connector
  • Ball bearing ensures durable rotation for long service life
  • Compact 60x10mm frame fits tight case spaces
  • 12V 0.25A draw keeps power consumption low
  • Non-LED black design suits stealth builds without distraction

Specifications

SeriesEFB0612HHA
ModelEFB0612HHA
TypeCase Fan
CompatibilityCase
Bearing TypeBall
Power Connector4 Pin
ColorBlack
LEDNon-LED
FeaturesDC square Cooler
Dimensions60*60*10mm

Questions about this item

How much noise and heat does the EFB0612HHA produce when running continuously at 12 V and 0.25 A?

The fan draws 0.25 A at 12 V through its 4-pin PWM connector, so sustained power is about 3 W; the ball bearing keeps mechanical noise low at constant speed.

What must my system already have to install this 60 mm PWM fan?

A 4-pin PWM header on the motherboard or fan controller and a 60 mm mounting grid with 10 mm clearance for the frame.

Will the 4-pin PWM control on this Delta unit work with an older 3-pin voltage-controlled header?

The 4-pin plug fits a 3-pin header, but speed will then be regulated by voltage only, losing PWM precision.
