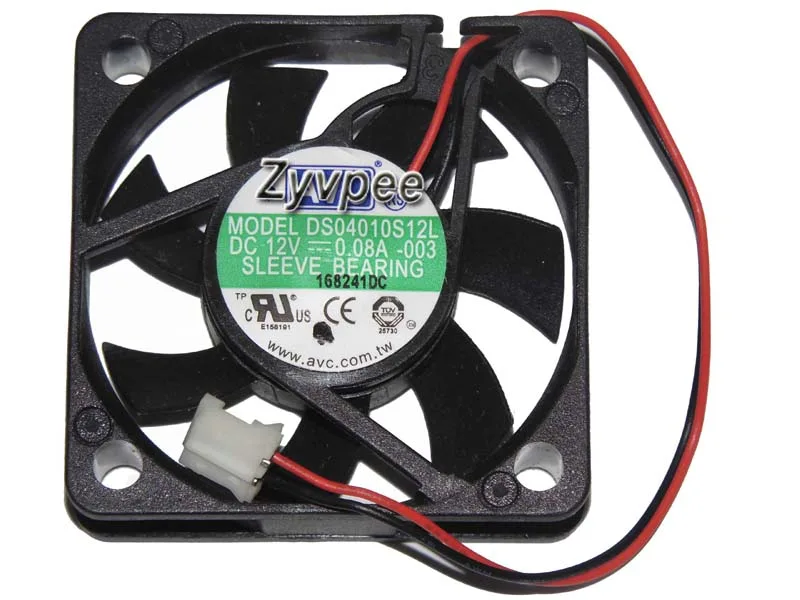

Small black 40mm square case fan with two wires and no LED lighting

Zyvpee

Zyvpee DS04010S12L -003 40mm 4010 12V .08A 2-pin case fan

SKU CH-R6KQ-HYVYR

A 40 mm sleeve-bearing case fan running at up to 1600 RPM on 12 V DC with a two-pin connector

  • TypeCPU Cooler Fan
  • Bearing TypeSleeve Bearing
  • RPM<1600 RPM
  • Power Connector2 Pin
  • ColorBlack
  • LEDNon-LED
  • Compact 40 mm frame fits tight chassis spaces
  • Sleeve bearing keeps noise low at under 1600 RPM
  • 12 V 0.08 A draw minimises power load
  • Two-pin connector simplifies motherboard hook-up
  • Non-LED black design suits stealth builds

Compact 40 mm case fan

The Zyvpee DS04010S12L -003 is a 40 mm square frame fan with a 10 mm thickness designed for tight spaces in PC cases or networking gear. It runs on 12 V DC and draws 0.08 A through a simple two-pin power connector. The black sleeve-bearing unit has no LEDs and spins at under 1600 RPM.

12 V two-pin power connector

The fan uses a standard two-pin header supplying 12 V DC at 0.08 A, so it plugs directly into most motherboard or controller headers without PWM control. Voltage and connector type are the only electrical interface; there is no four-pin or Molex option in this model. Verify that your header matches before ordering.

Suits small-form-factor and router cooling

Builders fitting a 40 mm mount in a mini-ITX chassis, a home-router enclosure or a compact CPU cooler will find the dimensions and voltage a direct match. Buyers who need PWM speed control, higher static pressure or a larger frame should look at other form factors.

Highlights

  • Compact 40 mm frame fits tight chassis spaces
  • Sleeve bearing keeps noise low at under 1600 RPM
  • 12 V 0.08 A draw minimises power load
  • Two-pin connector simplifies motherboard hook-up
  • Non-LED black design suits stealth builds

Specifications

Brand3ccooler.com
SeriesDS04010S12L -003
ModelDS04010S12L
TypeCPU Cooler Fan
Bearing TypeSleeve Bearing
RPM<1600 RPM
Power Connector2 Pin
ColorBlack
LEDNon-LED
FeaturesRouter Cooling
Dimensions40*10mm

Questions about this item

What does the sub-1600 RPM figure mean for actual airflow in a tight chassis?

At under 1600 RPM the 40 mm sleeve-bearing fan moves a modest air volume suited to spot-cooling a router board or small heatsink rather than high-static-pressure case airflow.

How does the 2-pin 12 V 0.08 A connector limit speed control options?

The two-pin header supplies fixed 12 V power so the fan runs at its rated speed; voltage regulation or PWM control is not possible without an external controller.

What physical clearance does the 40 x 10 mm frame need to mount?

The fan occupies a 40 mm square footprint and 10 mm depth, so the mounting surface must provide at least that much flat area with two screw holes on 4010 centres.
