Small black square 50mm frame 10mm thick two-wire fan

Zyvpee

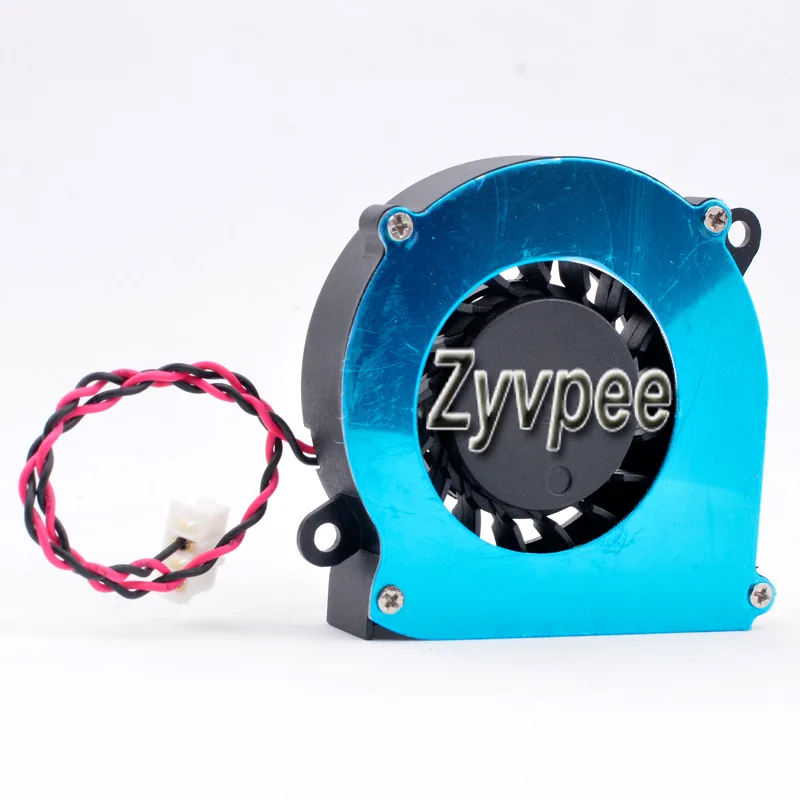

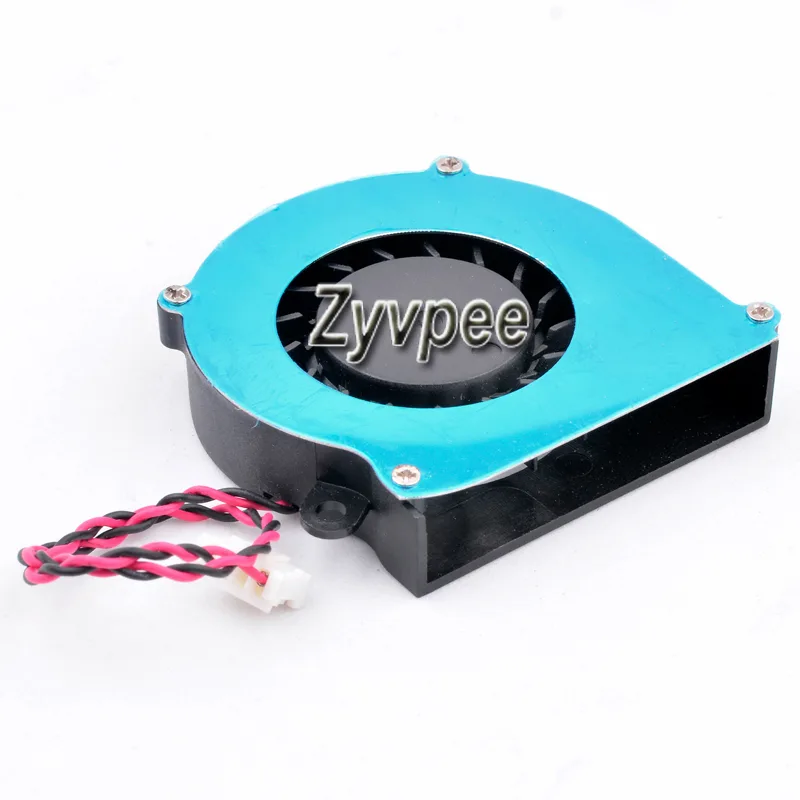

Zyvpee DFB501012M 50mm 12V 0.8W 2-pin case fan

SKU CH-J02Y-DCAR8

Compact 50×10 mm case fan with ball bearing runs on 12 V at .8 W using a 2-pin connector

  • TypeCPU Cooler Fan
  • Bearing TypeBall
  • Power Connector2 Pin
  • ColorBlack
  • LEDNon-LED
  • FeaturesProjector Cooling
  • Compact 50mm frame fits tight projector builds
  • Ball bearing runs quietly for longer life
  • 12V 0.8W draw keeps power use low
  • Two-pin connector plugs straight into board
  • Non-LED black finish stays discreet inside chassis

50 mm 12 V case fan

The Zyvpee DFB501012M is a 50 mm square frame fan with a 10 mm thickness designed for tight cooling spaces. It draws 0.8 W at 12 V and uses a two-wire power connector. The ball bearing and black non-LED housing suit industrial or compact PC projects.

Two-pin 12 V power connector

The single specification that decides fit is the two-pin 12 V power connector. It supplies fixed voltage without PWM speed control or tachometer feedback. Builders needing variable speed or motherboard monitoring must choose a different fan.

Fits 50 mm mounting holes

The fan mounts in any 50 mm square hole pattern and clears 10 mm of depth. It requires a 12 V source capable of 0.8 W and a two-pin header or adapter. The fixed-speed design frees the builder from fan-curve tuning but offers no automatic thermal response.

Highlights

  • Compact 50mm frame fits tight projector builds
  • Ball bearing runs quietly for longer life
  • 12V 0.8W draw keeps power use low
  • Two-pin connector plugs straight into board
  • Non-LED black finish stays discreet inside chassis

Specifications

Brand3ccooler.com
SeriesDFB501012M
ModelDFB501012M
TypeCPU Cooler Fan
Bearing TypeBall
Power Connector2 Pin
ColorBlack
LEDNon-LED
FeaturesProjector Cooling
Dimensions50*10mm

Questions about this item

What does the 0.8W power draw mean for my system's 12V rail?

It draws a small current from the 12V line, so it adds very little load to the power supply and suits low-power builds or projector cooling.

What does the 2-pin connector allow me to control?

The 2-pin connector provides constant 12V power with no PWM or voltage speed control; the fan runs at full speed whenever powered.

Will the 50mm by 10mm frame fit my 5010 mounting holes?

Yes, the 50mm square frame and 10mm thickness match the standard 5010 mounting pattern used in many small coolers and projectors.
