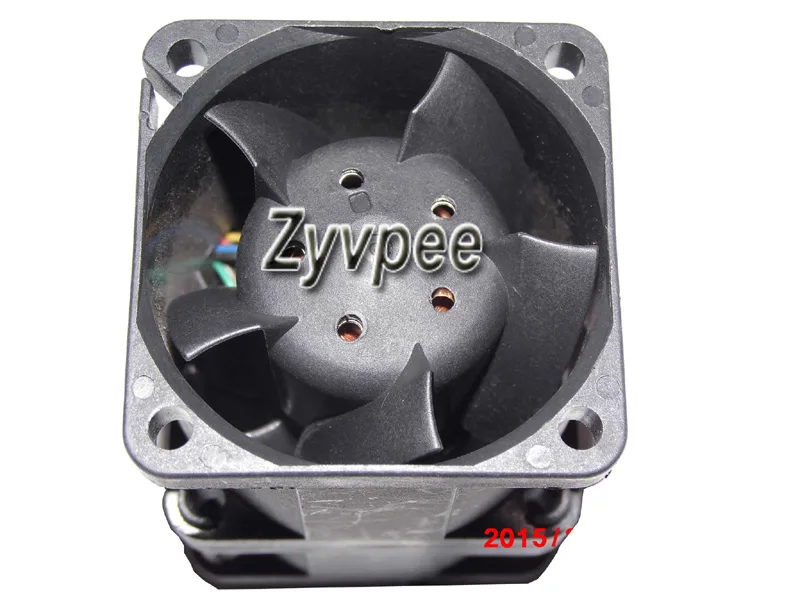

Black rectangular 40 by 56 mm case fan with eight wires and five pins

Zyvpee

Zyvpee DF04056B12U P014 40x56mm case fan

SKU CH-E2EH-5TH9Q

40 by 56 millimetre case fan with dual ball bearing, 12 volt 1.88 amp operation and eight-wire five-pin connector for server cooling

  • TypeCase Fan
  • Bearing Type2 Ball
  • Power Connector8 Wires
  • ColorBlack
  • LEDNon-LED
  • Dimensions40*56mm
  • Dual ball bearing extends service life
  • 12 V DC input with 1.88 A draw
  • Eight-wire, five-pin connector enables advanced control
  • Compact 40 × 56 mm frame fits tight bays
  • Non-LED black design suits professional server builds

Zyvpee DF04056B12U P014 40x56mm Server Fan

This 40 by 56 millimetre case fan is built for server chassis and compact enclosures that require targeted airflow. It suits system integrators and technicians maintaining rack hardware where standard square fans do not fit. The unit ships new with a dual-ball bearing for continuous operation.

DC12V 1.88A Power and 8-Wire Connector

The fan draws 1.88 amps at twelve volts through an eight-wire lead terminating in a five-pin header. This wiring supports advanced speed reporting and control schemes found on server boards. Builders using consumer three-pin or four-pin headers cannot connect this fan without a suitable adapter.

40x56mm Rectangular Form Factor

The forty by fifty-six millimetre frame is the critical specification; it only mounts in slots cut for this exact rectangle. Standard forty millimetre square frames and sixty millimetre frames will not align with the screw holes. Verify the chassis cutout before purchase.

Highlights

  • Dual ball bearing extends service life
  • 12 V DC input with 1.88 A draw
  • Eight-wire, five-pin connector enables advanced control
  • Compact 40 × 56 mm frame fits tight bays
  • Non-LED black design suits professional server builds

Specifications

Brand3ccooler.com
SeriesDF04056B12U P014
ModelDF04056B12U
TypeCase Fan
Bearing Type2 Ball
Power Connector8 Wires
ColorBlack
LEDNon-LED
Dimensions40*56mm

Questions about this item

Will the 40×56 mm frame with its 5-pin connector fit the header on my older 12 V server board?

The fan uses an 8-wire, 5-pin plug that carries 12 V DC at 1.88 A; match the pin-out to your board’s header before connecting.

How can I confirm the 2-ball bearing fan is spinning correctly once installed?

Power the system and verify the fan rotates smoothly at 12 V; the 2-ball bearing should run without grinding or wobble.

Does the DF04056B12U P014 ship with mounting screws or a PWM adapter cable?

The package contains only the 40×56 mm black non-LED fan with its 8-wire 5-pin lead; screws and adapters are not included.
