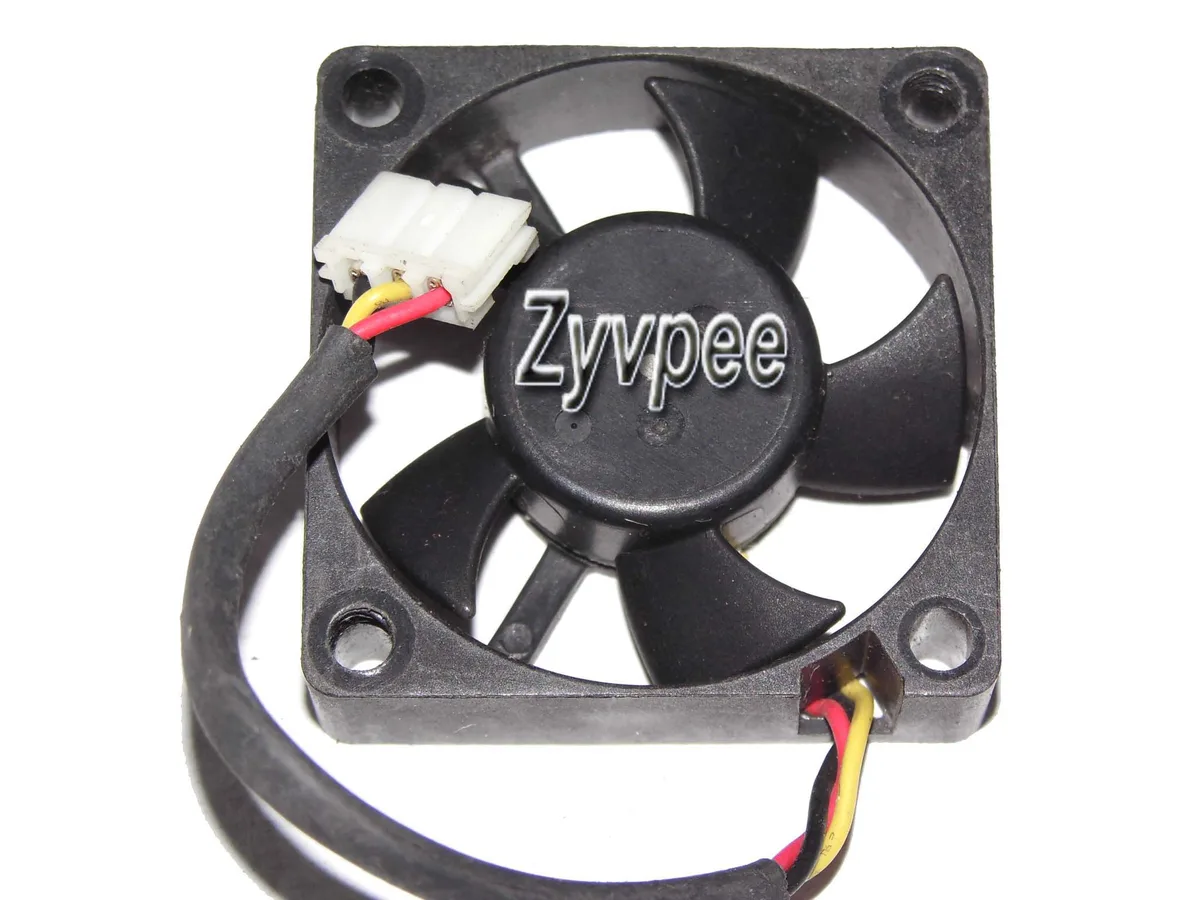

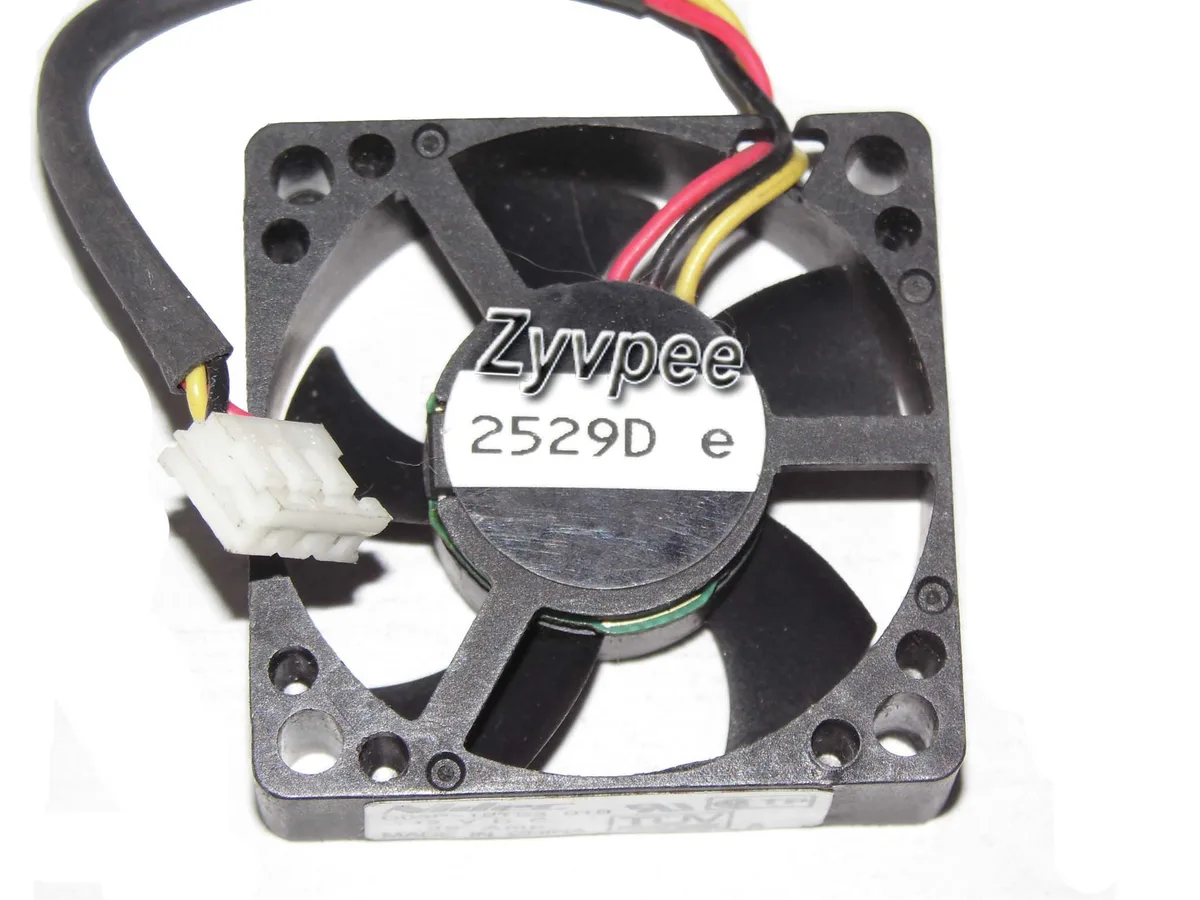

Small black square 35mm DC fan with three-pin connector

Zyvpee

Zyvpee D03P-12TS3 01B 35mm 12V 3-pin case fan

SKU CH-GEB3-0BX0K

A 35 mm DC case fan with dual ball bearings, 3-pin power and 12 V .09 A draw for compact switch or router cooling

  • TypeCase Fan
  • CompatibilityCase
  • Fan Size35mm
  • Bearing Type2 Ball
  • Power Connector3 Pin
  • ColorBlack
  • 35 mm square frame fits tight switch and router chassis
  • 12 V 0.09 A draw keeps power budgets low
  • Dual ball bearings extend operating life
  • Three-pin DC connector enables speed monitoring
  • Non-LED black housing avoids light bleed in dark racks

Compact 35 mm DC fan

The Zyvpee D03P-12TS3 01B is a 35 mm square case fan that runs on 12 V DC and draws 0.09 A through a 3-pin connector. Its two-ball bearing and 10 mm thickness suit tight enclosures such as network switches or small-form-factor chassis. The black, non-LED frame keeps the appearance neutral.

Suited for confined cooling

Builders who need a low-profile airflow source for a router, switch or compact server will find the dimensions match common 3.5 cm mounting holes. The 3-pin lead provides basic speed reporting without PWM control. Buyers who require higher static pressure, larger air volume or 4-pin PWM regulation should look elsewhere.

35 mm mounting footprint

The fan measures 35 mm by 35 mm with a 10 mm depth, so it only fits locations designed for that exact footprint. Verify the screw spacing and available clearance before ordering, as no adapter brackets are included.

Highlights

  • 35 mm square frame fits tight switch and router chassis
  • 12 V 0.09 A draw keeps power budgets low
  • Dual ball bearings extend operating life
  • Three-pin DC connector enables speed monitoring
  • Non-LED black housing avoids light bleed in dark racks

Specifications

SeriesD03P-12TS3 01B
ModelD03P-12TS3
TypeCase Fan
CompatibilityCase
Fan Size35mm
Bearing Type2 Ball
Power Connector3 Pin
ColorBlack
LEDNon-LED
FeaturesDC square Cooler
Dimensions35*35*10mm

Questions about this item

What does the 3-pin DC connector limit for speed control?

The 3-pin DC connector provides voltage-based speed control without PWM precision, so the fan runs at a voltage-dependent RPM rather than a fixed duty cycle.

Will the 35 mm by 10 mm frame fit my device's mounting holes?

The fan measures 35 mm square and 10 mm thick with standard 35 mm hole spacing, so it fits enclosures designed for 35 mm fans such as switches or routers.

How do I connect the three wires without reversing polarity?

Match the red wire to 12 V, the black wire to ground, and the yellow wire to the tachometer pin on the header; reversing red and black will prevent the fan from spinning.
