Black 100mm blower fan with 4-pin PWM connector

Zyvpee

Zyvpee BA10033B12S 100mm 4-pin PWM blower case fan

SKU CH-K7J5-N2VAH

100 mm blower fan with 4-pin PWM control and dual ball bearings for targeted case cooling

  • TypeBlower
  • CompatibilityCase
  • Fan Size100mm
  • Bearing Type2 Ball
  • Power Connector4 Pin
  • ColorBlack
  • 100 mm blower design directs focused airflow through tight chassis
  • 4-pin PWM control adjusts speed automatically to thermal load
  • Dual ball bearing extends operating life under continuous use
  • 12 V 2.85 A rating delivers strong static pressure for dense heatsinks
  • Compact 97 × 33 mm frame fits 1U and small-form-factor cases

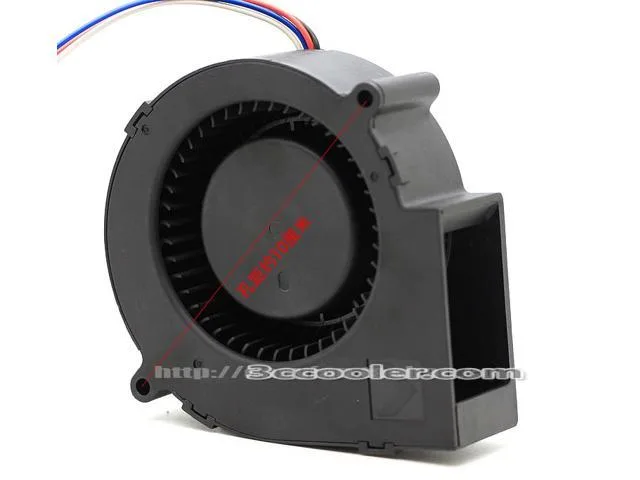

Zyvpee 100 mm blower fan for R510G6

This 100 mm blower-style case fan uses a 4-pin PWM connector and dual ball bearings. It is built for the R510G6 chassis and runs on 12 V at 2.85 A. The 97 x 33 mm frame fits the designated mounting pattern.

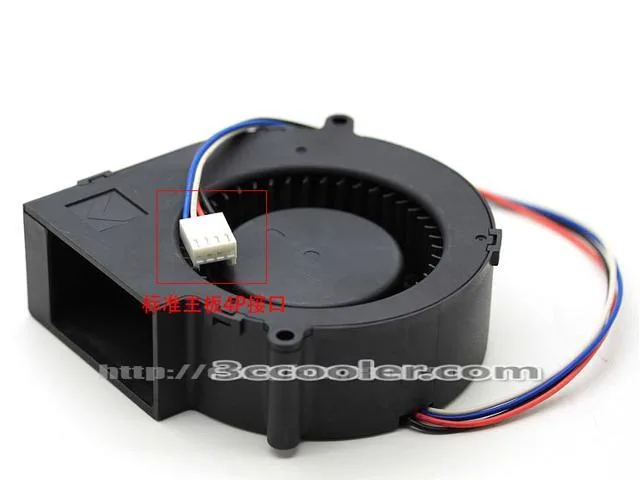

4-pin PWM control limits

The 4-pin PWM interface allows motherboard or controller speed regulation. Voltage is fixed at 12 V and current draw is 2.85 A. The header must supply that current; a weaker header will not run the fan at full speed.

Check R510G6 mount and header before ordering

Verify the chassis has the 97 x 33 mm blower cut-out and a 4-pin PWM header rated for 2.85 A. If your case uses a different mounting pattern or a 3-pin header, this fan will not fit or control correctly.

Highlights

  • 100 mm blower design directs focused airflow through tight chassis
  • 4-pin PWM control adjusts speed automatically to thermal load
  • Dual ball bearing extends operating life under continuous use
  • 12 V 2.85 A rating delivers strong static pressure for dense heatsinks
  • Compact 97 × 33 mm frame fits 1U and small-form-factor cases

Specifications

SeriesBA10033B12S
ModelBA10033B12S
TypeBlower
CompatibilityCase
Fan Size100mm
Bearing Type2 Ball
Power Connector4 Pin
ColorBlack
LEDNon-LED
FeaturesDC square Cooler
Dimensions97*33mm

Questions about this item

Should I choose the 100 mm blower or a standard axial fan for my case?

The 100 mm blower pushes air through its 97*33 mm frame, making it suited for tight channels or GPU coolers where a standard axial fan cannot direct flow effectively.

What does the 2.85 A rating mean once the fan is installed?

At 12 V the fan can draw up to 2.85 A, so the motherboard header or fan controller must supply that current for full PWM speed range.

How does the 4-pin PWM connector limit control in practice?

The 4-pin PWM connector allows the motherboard to vary speed precisely, but the header’s amp rating caps the maximum RPM the fan can reach.
