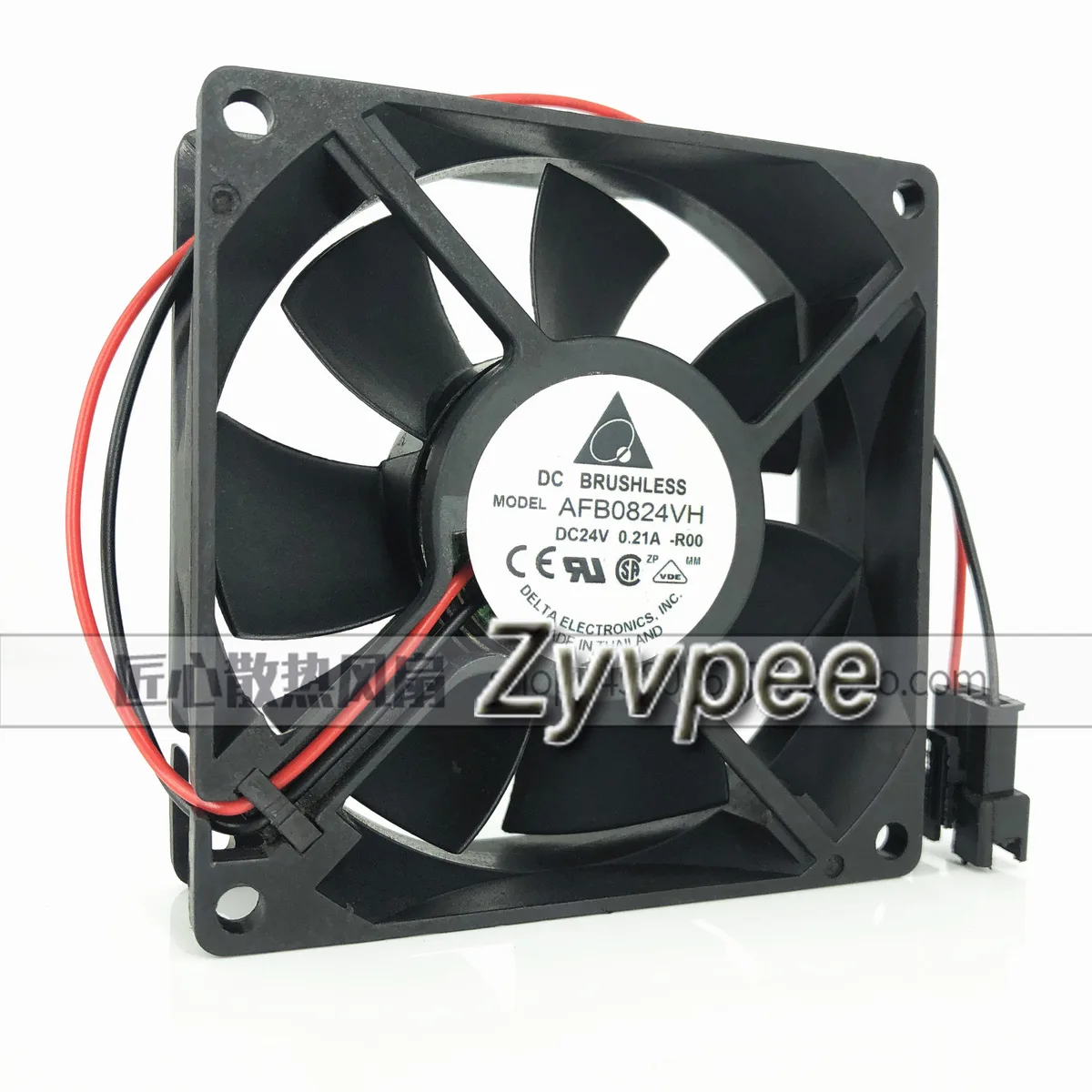

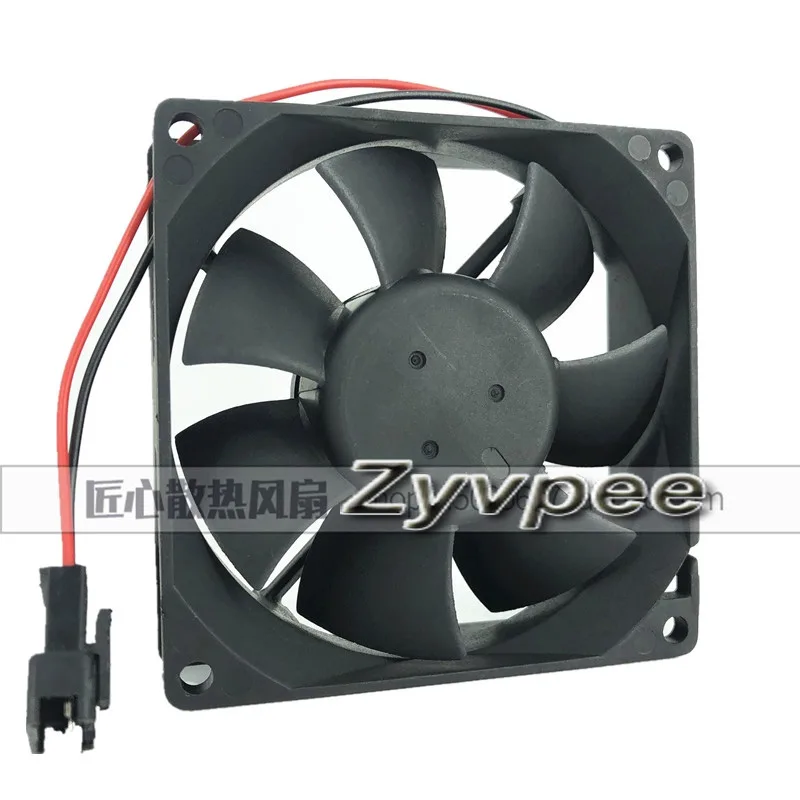

Black 80mm square case fan, 25mm thick, two-pin power connector

Zyvpee

Zyvpee AFB0824VH 80×25mm 24V 0.21A 2-pin case fan

SKU CH-00EE-CTRA4

An 80 mm ball-bearing case fan delivering 40-45 CFM at 3500-3999 RPM with 35-40 dBA noise on 24 V 0.21 A power

  • TypeCase Fan
  • CompatibilityCase
  • Bearing TypeBall
  • RPM3500-3999 RPM
  • Air Flow40-45 CFM
  • Noise Level35 - 40 dBA
  • Delivers 40-45 CFM airflow for efficient case cooling
  • Operates at 35-40 dBA for quiet system operation
  • Ball bearing design extends fan service life
  • 24V 0.21A power draw suits inverter and industrial builds
  • Compact 80x25mm frame fits tight chassis spaces

80 mm 24 V case fan

The Zyvpee AFB0824VH is an 80 by 25 mm case fan that runs on a 24 V DC supply drawing 0.21 A. It uses a two-pin connector and a ball bearing to deliver 40 to 45 CFM at 3500 to 3999 RPM with a noise level of 35 to 40 dBA. The black frame has no LED lighting.

Suited for 24 V industrial or server chassis

This fan suits builds that provide a 24 volt header and need a compact 80 mm cooler with a simple two-wire connection. It is not for systems that only supply a lower voltage header, and it lacks a third wire for speed reporting or PWM control.

Deciding spec: 24 V 0.21 A two-pin power

The single specification that decides fit is the 24 V 0.21 A two-pin power requirement; the motherboard or controller must provide exactly that voltage and connector type.

Highlights

  • Delivers 40-45 CFM airflow for efficient case cooling
  • Operates at 35-40 dBA for quiet system operation
  • Ball bearing design extends fan service life
  • 24V 0.21A power draw suits inverter and industrial builds
  • Compact 80x25mm frame fits tight chassis spaces

Specifications

SeriesAFB0824VH
ModelAFB0824VH
TypeCase Fan
CompatibilityCase
Bearing TypeBall
RPM3500-3999 RPM
Air Flow40-45 CFM
Noise Level35 - 40 dBA
Power Connector2 Pin
ColorBlack
LEDNon-LED
FeaturesDC square Cooler
Dimensions80*80*25mm

Questions about this item

How do I connect the 2-pin 24V connector to my case fan header?

The AFB0824VH uses a 2-pin 24V 0.21A plug; align the keyed connector with the matching header and press firmly until seated — reversing the pins will prevent the fan from spinning.

When will the ball bearing in this 80×25mm fan need replacement?

Ball bearings typically last 50 000+ hours; at 3500–3999 RPM expect several years of continuous use before noise or vibration signals wear.

At what point does the 40–45 CFM airflow become the limiting factor under sustained load?

When case pressure rise exceeds the fan’s static-pressure curve, airflow drops below 40 CFM and component temperatures climb despite 35–40 dBA noise.
