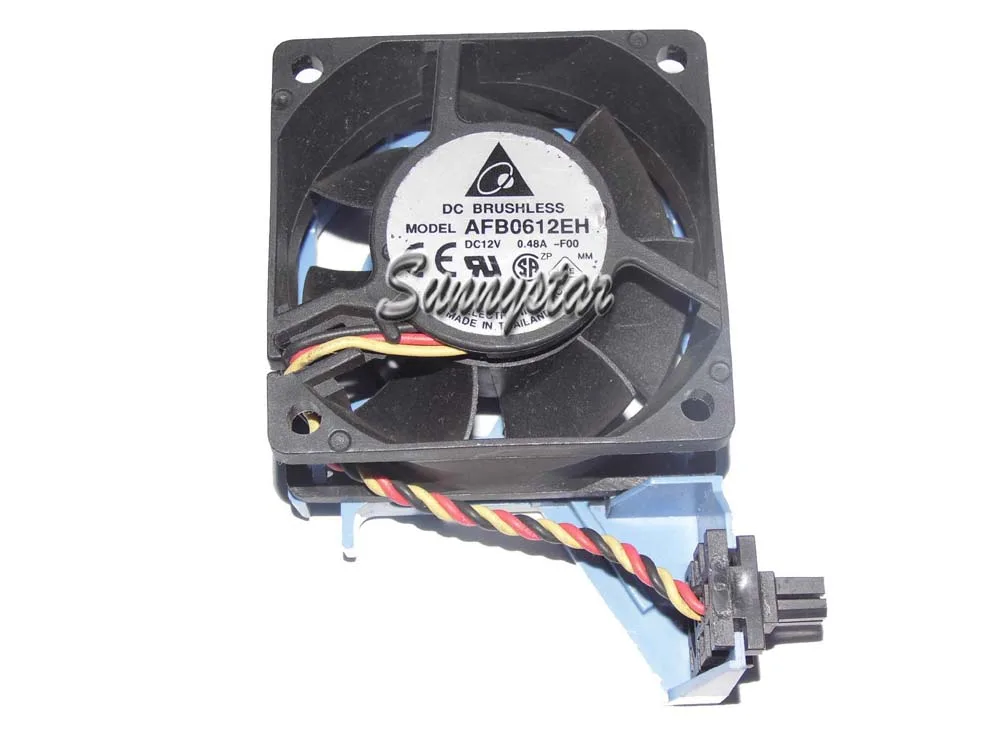

Zyvpee 60 by 25 millimetre black axial case fan with blue bracket and three wires

Zyvpee

Zyvpee AFB0612EH 60*25mm 12V .48A 3-wire blue bracket case fan

SKU CH-BZ5G-5NAJX

A 60 mm by 25 mm DC axial case fan with ball bearing, 12 V 0.48 A draw and a 3-wire blue bracket for server CPU cooling

  • TypeCase Fan
  • CompatibilityCase
  • Bearing TypeBall
  • Power Connector4 Pin
  • ColorBlack
  • LEDNon-LED
  • Compact 60 mm frame fits tight server bays
  • Ball bearing ensures long running life
  • 12 V .48 A draw keeps power use low
  • Three wire lead allows speed monitoring
  • Blue bracket simplifies ASSY 4Y364 CPU mounting

60mm DC axial fan for server assemblies

The Zyvpee AFB0612EH is a 60 by 25 millimetre case fan built for server ASSY 4Y364 CPU cooling. It runs on 12 volts DC and draws 0.48 amps through a three-wire power connector. The ball bearing and non-LED black frame suit continuous operation in rack environments.

0.48A draw and ball bearing headroom

At 0.48 amps the fan delivers steady airflow for dense 1U or blade chassis where space is tight. The ball bearing tolerates higher ambient temperatures than sleeve alternatives, but the 60mm diameter limits static pressure in restrictive heatsink fins. It handles typical server CPU thermal loads within its rated voltage.

Three-wire connector limits speed reporting

The three-wire lead provides power, ground and a tachometer signal for RPM monitoring. It lacks a fourth PWM wire, so the motherboard or fan controller can only vary voltage for speed control. This restricts fine-grained curves and prevents zero-RPM idle modes found on four-pin headers.

Highlights

  • Compact 60 mm frame fits tight server bays
  • Ball bearing ensures long running life
  • 12 V .48 A draw keeps power use low
  • Three wire lead allows speed monitoring
  • Blue bracket simplifies ASSY 4Y364 CPU mounting

Specifications

BrandZyvpee
SeriesAFB0612EH
ModelAFB0612EH
TypeCase Fan
CompatibilityCase
Bearing TypeBall
Power Connector4 Pin
ColorBlack
LEDNon-LED
FeaturesDC axial fan
Dimensions60 * 25mm

Questions about this item

Will this 60mm fan fit the same mounting holes as my existing 60mm cooler?

The unit measures 60 by 25mm with a blue bracket, so it matches standard 60mm mounting patterns used on many server and CPU assemblies.

How do I confirm the ball bearing is spinning correctly after install?

Connect the 3-wire lead to a 12V header; the tach signal will report RPM to the BIOS or monitoring software so you can verify operation.

Does the package include the 4-pin adapter or just the 3-wire plug?

The fan ships with its native 3-wire connector on the blue bracket; a 4-pin adapter is not included and must be sourced separately if your board only has 4-pin headers.
