Small black square case fan, 35 by 10 mm, two wires

Zyvpee

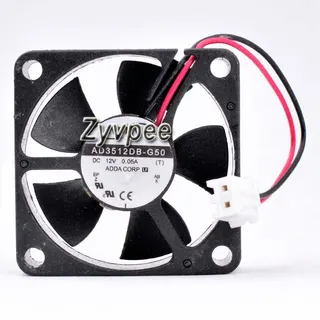

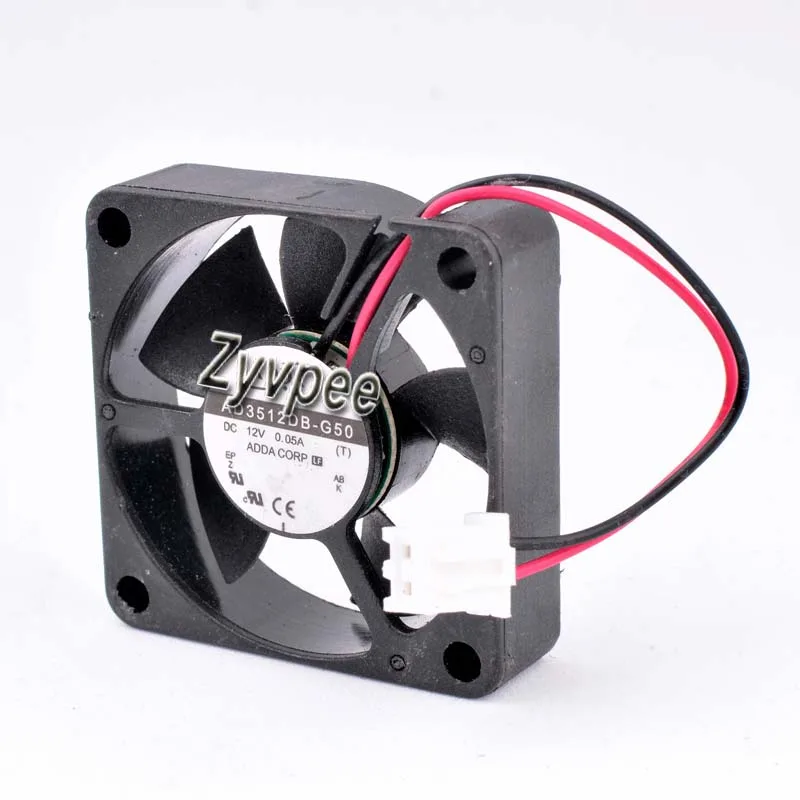

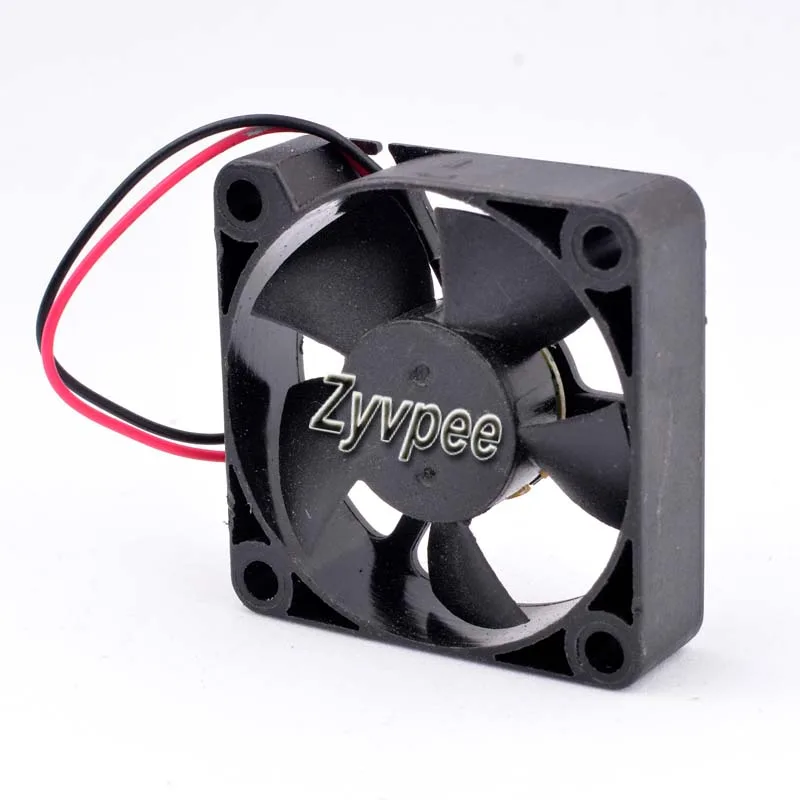

Zyvpee AD3512DB-G50 35x10mm 12V 2-pin case fan

SKU CH-XQ82-HAMSN

Ultra-compact 35 x 10 mm case fan with ball bearing spinning under 1600 RPM on a 12 V two-pin connector

  • TypeCase Fan
  • Bearing TypeBall
  • RPM<1600 RPM
  • Power Connector2 Pin
  • ColorBlack
  • LEDNon-LED
  • Compact 35 × 10 mm frame fits tight spaces
  • Ball bearing rated for long service life
  • 12 V 0.05 A draw keeps power use low
  • Sub-1600 RPM limit reduces audible noise
  • Two-pin connector enables simple motherboard hookup

Compact 35 x 10 mm case fan

The Zyvpee AD3512DB-G50 is a 12 V ball-bearing fan measuring 35 mm by 10 mm. It draws 0.05 A and spins below 1600 RPM through a 2-pin power connector. The non-LED black frame suits tight micro-host chassis or small-form-factor enclosures.

Suited for space-constrained builds.

This fan fits builders who need a slim 35 mm square footprint and simple voltage regulation. It will not work for systems that require 4-pin PWM speed control, higher airflow ratings, or larger frame sizes. Buyers needing adjustable curves or greater static pressure should look elsewhere.

2-pin voltage-only connector decides fit

The 2-pin connector delivers fixed 12 V power without a tachometer or PWM signal. Motherboard headers that expect a 4-pin PWM fan cannot regulate its speed. Verify that your board or fan controller supports 2-pin voltage control before ordering.

Highlights

  • Compact 35 × 10 mm frame fits tight spaces
  • Ball bearing rated for long service life
  • 12 V 0.05 A draw keeps power use low
  • Sub-1600 RPM limit reduces audible noise
  • Two-pin connector enables simple motherboard hookup

Specifications

Brand3ccooler.com
SeriesAD3512DB-G50
ModelAD3512DB-G50
TypeCase Fan
Bearing TypeBall
RPM<1600 RPM
Power Connector2 Pin
ColorBlack
LEDNon-LED
Dimensions35 * 10mm

Questions about this item

Will the 35 mm by 10 mm frame fit my micro chassis mounting holes?

The fan measures 35 mm square and 10 mm thick, matching standard 3510 mounting patterns used in compact enclosures.

How do I connect the 2-pin plug without reversing polarity?

Align the red wire to the 12 V pin and the black wire to ground on the board header; the keyed housing prevents backwards insertion.

When should I expect to replace the ball-bearing fan?

Ball bearings typically run for years at under 1600 RPM; plan a swap if noise rises or rotation becomes uneven.
