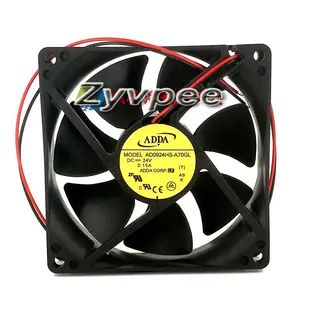

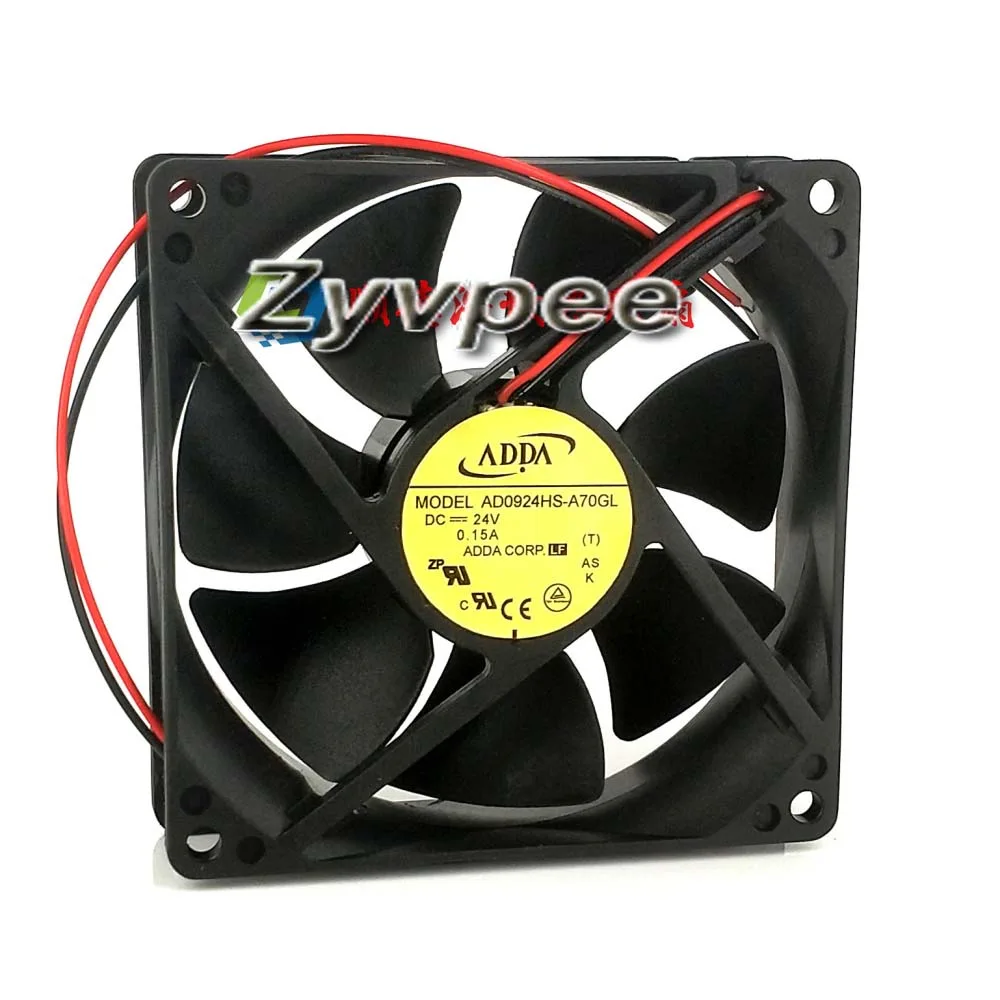

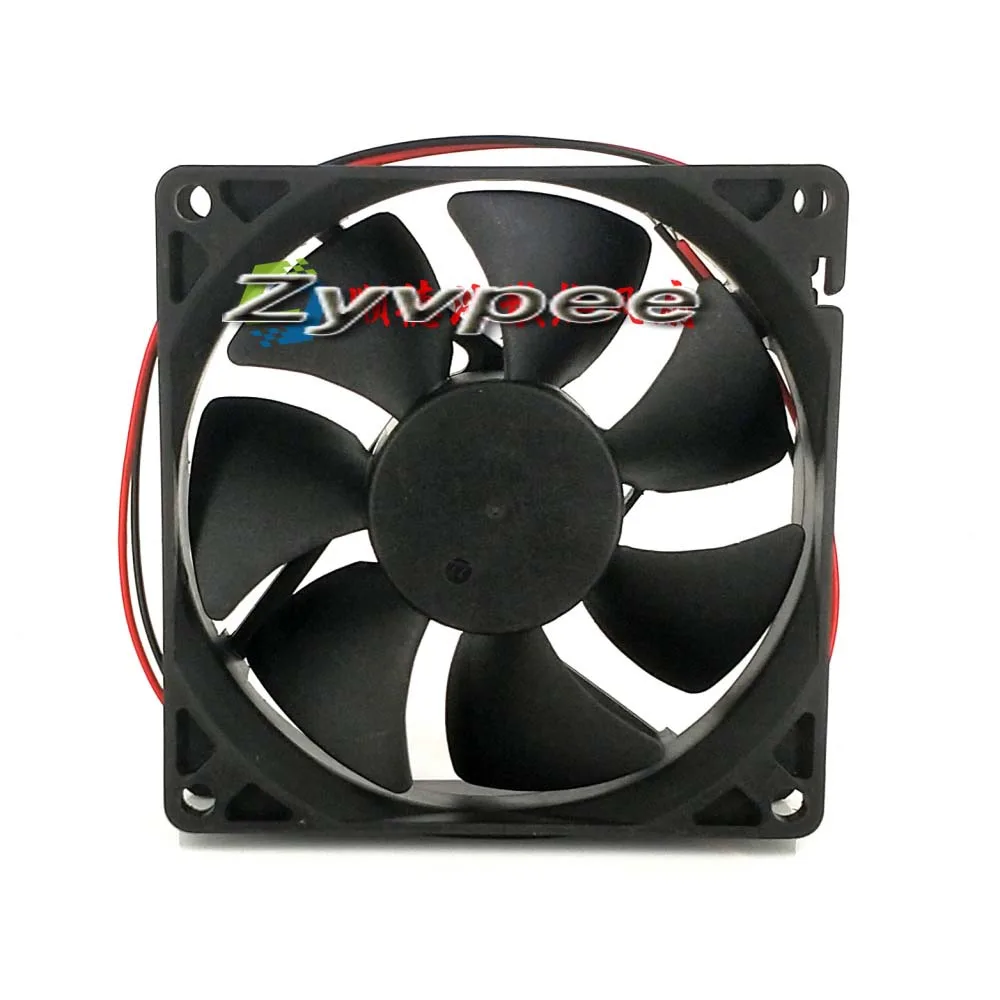

Black 92 mm square axial case fan with black frame and blades, 25 mm thick, two-wire 24 V DC power lead

Zyvpee

Zyvpee AD0924HS-A70GL 92x25mm 24V 0.15A 2-wire case fan

SKU CH-CT3Y-NCQKH

A 92 mm square case fan with sleeve bearing running up to 2499 RPM on a 24 V two-wire supply

  • TypeCase Fan
  • CompatibilityCase
  • Bearing TypeSleeve bearing
  • RPM2000-2499 RPM
  • Power Connector2 Wires
  • ColorBlack
  • 24 V DC power suits inverter and converter applications
  • 92 mm square frame fits standard 92 mm mounting holes
  • 25 mm thickness matches common slim-fan clearances
  • Sleeve bearing keeps acoustic output low at 2 000–2 499 RPM
  • Two-wire connector enables simple polarity-controlled speed regulation

Zyvpee AD0924HS-A70GL 24 V DC axial fan

This 92 mm square, 25 mm thick case fan runs on 24 V DC and draws 0.15 A through a two-wire lead. The sleeve bearing operates between 2000 and 2499 RPM. It is intended for inverter or converter enclosures that require a compact DC axial fan.

Suited for 24 V equipment cabinets.

The fan fits 90 mm mounting holes and a 24 V supply, making it suitable for industrial chassis or power electronics. It is not for builders who need PWM speed control, tachometer feedback or a different voltage header.

Two-wire 24 V power connector decides fit

The only control interface is the two-wire DC input, so the host system must provide 24 V and accept a non-PWM, non-tacho fan. Verify the voltage and connector before ordering.

Highlights

  • 24 V DC power suits inverter and converter applications
  • 92 mm square frame fits standard 92 mm mounting holes
  • 25 mm thickness matches common slim-fan clearances
  • Sleeve bearing keeps acoustic output low at 2 000–2 499 RPM
  • Two-wire connector enables simple polarity-controlled speed regulation

Specifications

SeriesAD0924HS-A70GL
ModelAD0924HS-A70GL
TypeCase Fan
CompatibilityCase
Bearing TypeSleeve bearing
RPM2000-2499 RPM
Power Connector2 Wires
ColorBlack
LEDNon-LED
FeaturesDC axial fan
Dimensions90*90*25mm

Questions about this item

What does the 2000-2499 RPM range mean for airflow inside a case?

The fan spins between 2000 and 2499 revolutions per minute, delivering a steady stream of air through a 92 mm frame to cool components directly in its path.

How does the 2-wire power connector limit speed control?

The 2-wire design supplies 24 V DC at 0.15 A continuously, so the fan runs at full speed whenever powered with no PWM or voltage regulation built in.

Will the 90 mm square by 25 mm thick frame fit standard 92 mm mounting holes?

Yes, the 90 mm by 90 mm by 25 mm dimensions match the common 92 mm fan pattern, using four corner screw holes for case or radiator mounting.
