Small black square 40mm case fan 10mm thick 3-pin

Zyvpee

Zyvpee AD0412DB-G73 40x10mm 12V 0.07A 3-pin case fan

SKU CH-F63X-183ZF

Compact 40×10 mm ball-bearing case fan runs on 12 V at 0.07 A via a 3-pin connector

  • TypeCase Fan
  • CompatibilityCase
  • Bearing TypeBall
  • Power Connector3 Pin
  • ColorBlack
  • LEDNon-LED
  • Compact 40 × 10 mm frame fits tight chassis spaces
  • Ball bearing ensures durable, low-friction rotation
  • 12 V, 0.07 A draw keeps power use minimal
  • Three-pin connector provides simple motherboard control
  • Non-LED black design suits stealth builds

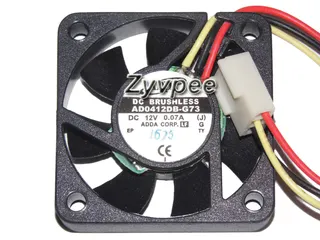

Zyvpee AD0412DB-G73 40 mm case fan

The Zyvpee AD0412DB-G73 is a compact 40 x 40 x 10 mm case fan that runs on 12 V and draws 0.07 A through a standard 3-pin power connector. It uses a ball bearing for reliable rotation and has no LED illumination. The black frame suits general chassis cooling or tight spots in networking gear and storage enclosures.

Suits builds needing a slim 40 mm replacement

This fan fits systems that require a 40 mm square footprint and a 3-pin DC connection, such as small form factor cases, router chassis or hard-drive coolers. It is not for builds that need a larger frame size, PWM speed control via a 4-pin header, addressable lighting or higher static pressure than a basic DC square cooler provides.

3-pin DC connector decides compatibility

The 3-pin power connector delivers fixed-voltage DC control, so the motherboard or controller must supply a 3-pin header for speed regulation. If the target device only offers a 4-pin PWM header without a compatible 3-pin mode, or requires a different voltage, this unit will not function as intended.

Highlights

  • Compact 40 × 10 mm frame fits tight chassis spaces
  • Ball bearing ensures durable, low-friction rotation
  • 12 V, 0.07 A draw keeps power use minimal
  • Three-pin connector provides simple motherboard control
  • Non-LED black design suits stealth builds

Specifications

SeriesAD0412DB-G73
ModelAD0412DB-G73
TypeCase Fan
CompatibilityCase
Bearing TypeBall
Power Connector3 Pin
ColorBlack
LEDNon-LED
FeaturesDC square Cooler
Dimensions40*40*10mm

Questions about this item

What voltage and current does the 3-pin connector supply to the AD0412DB-G73 fan?

The 3-pin connector delivers 12 V at 0.07 A to power the AD0412DB-G73.

What are the exact mounting dimensions for this 40 mm square fan?

The fan measures 40 mm by 40 mm with a 10 mm thickness for standard 40 mm mounting holes.

How do I correctly orient the three wires when plugging the fan into a header?

Align the keyed 3-pin plug so the missing pin slot matches the header tab; reversing it leaves the tachometer wire unconnected.
