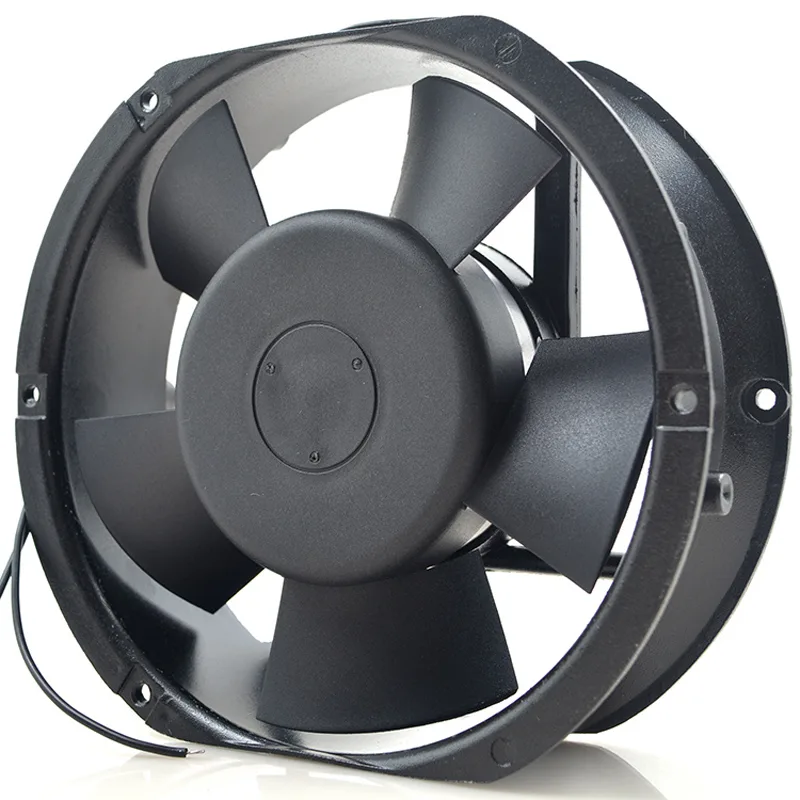

Black 170 mm AC axial case fan with 172 by 51 mm frame and two bare-tinned wires

Zyvpee

Zyvpee AA1752HB-AW 170mm AC axial case fan

SKU CH-35MQ-P662V

170 mm AC axial fan with double ball bearing, 2500–2999 RPM, over 80 CFM airflow and 45–50 dBA noise

  • TypeCase Fan
  • CompatibilityCase
  • Fan Size170mm
  • Bearing Type2 Ball
  • RPM2500-2999 RPM
  • Air Flow>80 CFM
  • High airflow of 117 m³/h keeps components cool
  • Double ball bearings extend service life
  • 170 mm frame fits large chassis openings
  • AC 220/240 V supply needs no extra PSU
  • Quiet 45–50 dBA operation suits quiet builds

170 mm AC axial case fan

The Zyvpee AA1752HB-AW is a 170 mm AC axial fan designed for case ventilation. It runs on 220/240 V mains power at 50/60 Hz and draws 0.27/0.23 A through a two-wire lead. The unit measures 172 by 51 mm and uses a double ball bearing for rotation.

Suits mains-powered chassis cooling

This fan suits builders who need a 170 mm frame that connects directly to AC power without a motherboard header. It is not for systems that require PWM speed control, a standard 3-pin or 4-pin DC connector, or low-noise operation below 45 dBA. Buyers who want addressable lighting or software fan curves should look elsewhere.

Simple two-wire installation

Installation consists of wiring the 270 mm tinned leads into a suitable AC circuit; no motherboard header is involved. The bare-wire ends demand basic electrical knowledge and proper insulation to avoid shorts. The 51 mm thickness may conflict with tight side-panel clearance, so verify internal depth before mounting.

Highlights

  • High airflow of 117 m³/h keeps components cool
  • Double ball bearings extend service life
  • 170 mm frame fits large chassis openings
  • AC 220/240 V supply needs no extra PSU
  • Quiet 45–50 dBA operation suits quiet builds

Specifications

SeriesAA1752HB-AW
ModelAA1752HB-AW
TypeCase Fan
CompatibilityCase
Fan Size170mm
Bearing Type2 Ball
RPM2500-2999 RPM
Air Flow>80 CFM
Noise Level45 - 50 dBA
Power Connector2 Wires
ColorBlack
LEDNon-LED
FeaturesAC Axial Fan
Dimensions172*51mm

Questions about this item

What power source must I already have available to run this 220/240V AC axial fan?

You need a mains-voltage supply of 220–240 V at 50/60 Hz single-phase; the fan draws 0.27 A at 50 Hz or 0.23 A at 60 Hz and terminates in two bare-tinned wires 0.5 cm long after a 270 mm lead.

Will this 172 × 51 mm frame fit the same mounting holes as my existing 170 mm DC fans?

The housing measures 172 mm square by 51 mm deep, so hole spacing matches common 170 mm patterns, but the 2-wire AC connection cannot plug into a standard motherboard fan header used by DC fans.

How can I confirm the fan is operating correctly once wired to mains?

At full voltage the motor should spin at roughly 3000 RPM, move about 117 m³/h of air and produce approximately 50 dBA of noise, with the double ball bearings running smoothly.
