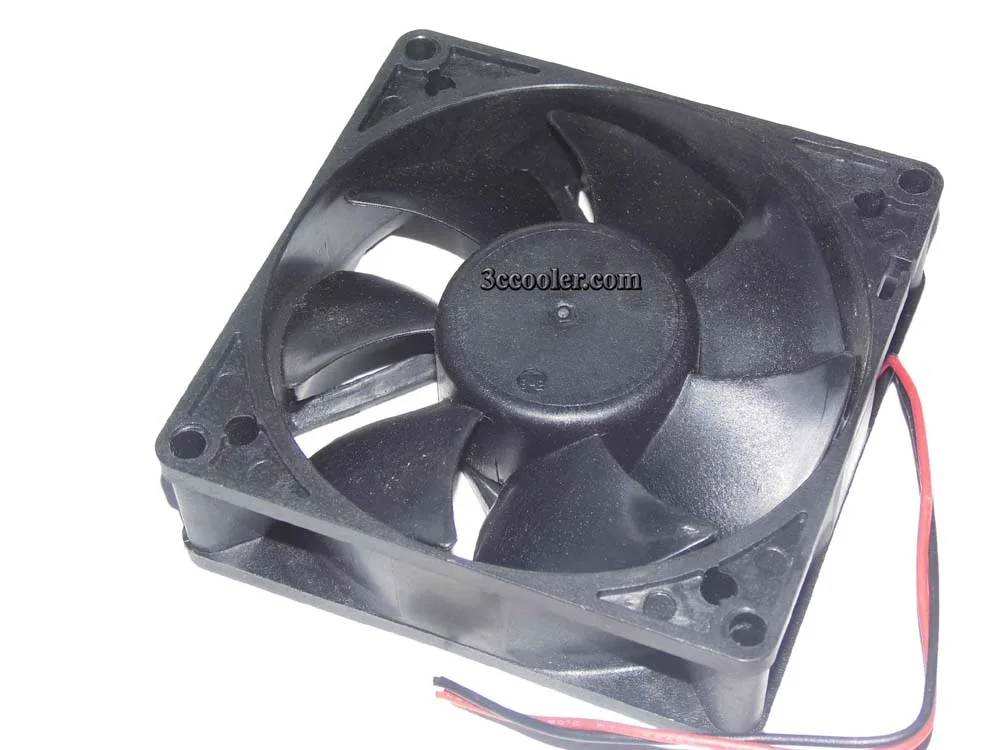

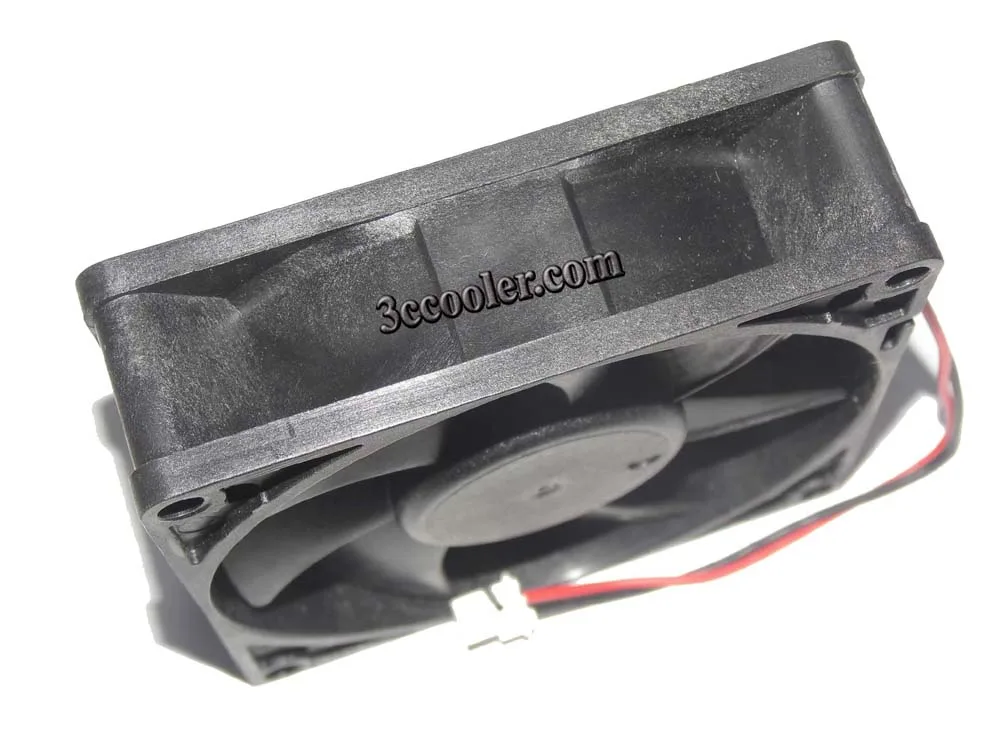

Black 80mm square case fan with ball bearing and two-wire power connector

Zyvpee

Zyvpee A8025M12D CG 80mm case fan

SKU CH-QR33-66FQ7

An 80 mm case fan with ball-bearing motor running at 12 V and 0.13 A on a two-wire connector

  • TypeCase Fan
  • CompatibilityCase
  • Bearing TypeBall
  • Power Connector2 Wires
  • ColorBlack
  • LEDNon-LED
  • Compact 80 mm frame fits tight case spaces
  • Ball bearing design extends operational lifespan
  • 12 V 0.13 A draw keeps power use low
  • Two-wire connector simplifies motherboard hookup
  • Non-LED black finish suits stealth builds

Compact 80 mm case fan

The Zyvpee A8025M12D CG is an 80 mm square frame fan built for standard case mounting points. It targets builders who need a straightforward DC cooler for tight layouts or legacy chassis. The two-wire power connector supplies 12 V at 0.13 A without PWM control. No LED lighting is fitted, keeping the appearance neutral.

8025 frame with ball bearing

The 8025 designation confirms an 80 mm width and 25 mm thickness, a common slim profile for restricted bays. Ball-bearing construction supports continuous rotation at the rated voltage. Headroom is limited to the fixed 12 V input; the fan cannot be speed-controlled via motherboard headers. It runs out of adjustment range in builds that demand variable airflow curves.

Two-wire DC integration

A two-wire plug connects directly to a 12 V header or molex adapter, drawing 0.13 A per unit. The lack of a tachometer or PWM wire means the motherboard cannot monitor or regulate speed. This frees the builder from fan-curve tuning but removes automatic thermal response. Buyers who want speed reporting or PWM control should look for three- or four-wire alternatives.

Highlights

  • Compact 80 mm frame fits tight case spaces
  • Ball bearing design extends operational lifespan
  • 12 V 0.13 A draw keeps power use low
  • Two-wire connector simplifies motherboard hookup
  • Non-LED black finish suits stealth builds

Specifications

BrandZyvpee
SeriesA8025M12D
ModelA8025M12D
TypeCase Fan
CompatibilityCase
Bearing TypeBall
Power Connector2 Wires
ColorBlack
LEDNon-LED
FeaturesDC Case Fan
Dimensions80*25mm

Questions about this item

Will the 80 mm frame and 25 mm depth fit the same mounting holes as my existing 80 mm fan?

Yes, the 80*25 mm dimensions match the standard 80 mm fan footprint, so it uses the same four screw holes as your current unit.

How can I confirm the ball bearing is running correctly once installed?

Power the fan at 12 V and listen for smooth, steady rotation without rattling; the 0.13 A draw should produce consistent airflow.

Does the package include mounting screws or a 3-pin adapter for the 2-wire lead?

The fan ships with the 2-wire DC motor only; screws and any connector adapters must be sourced separately.
