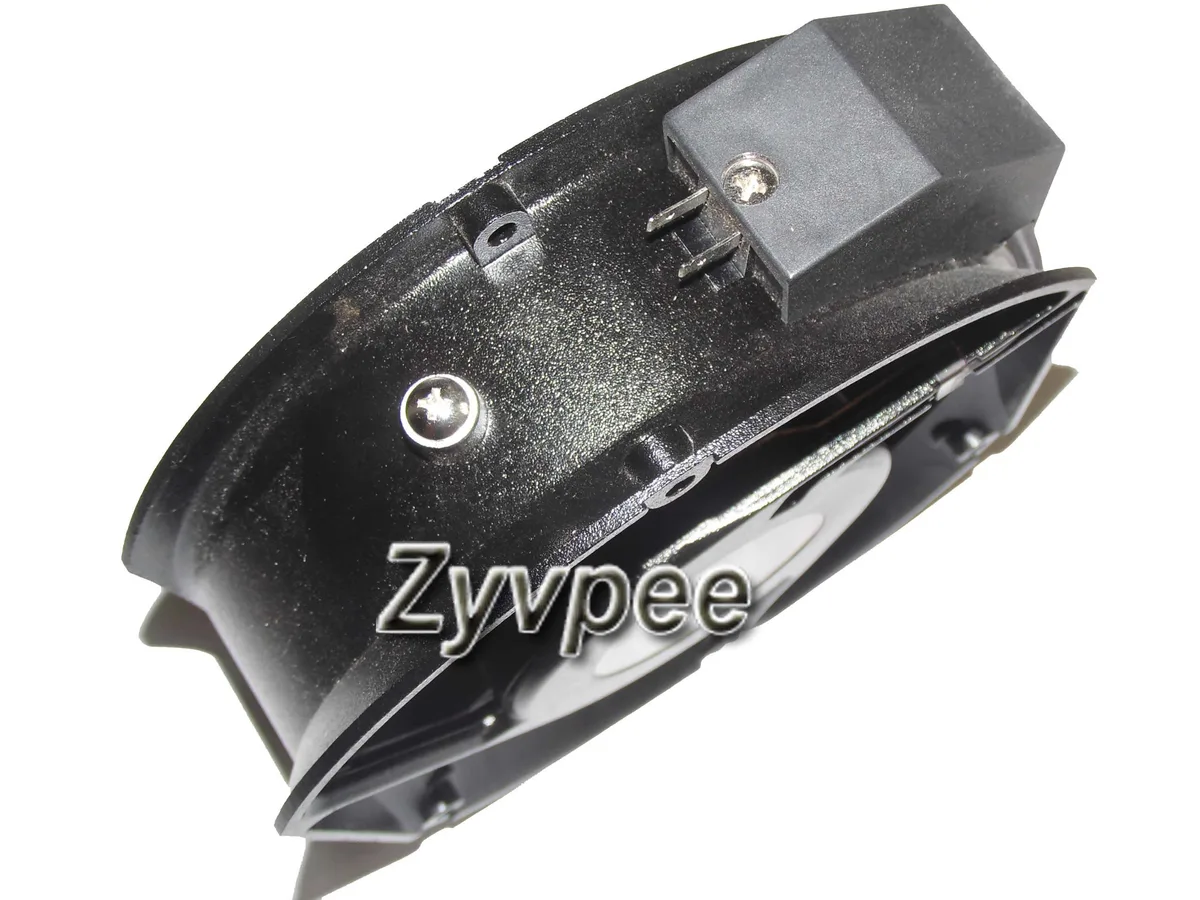

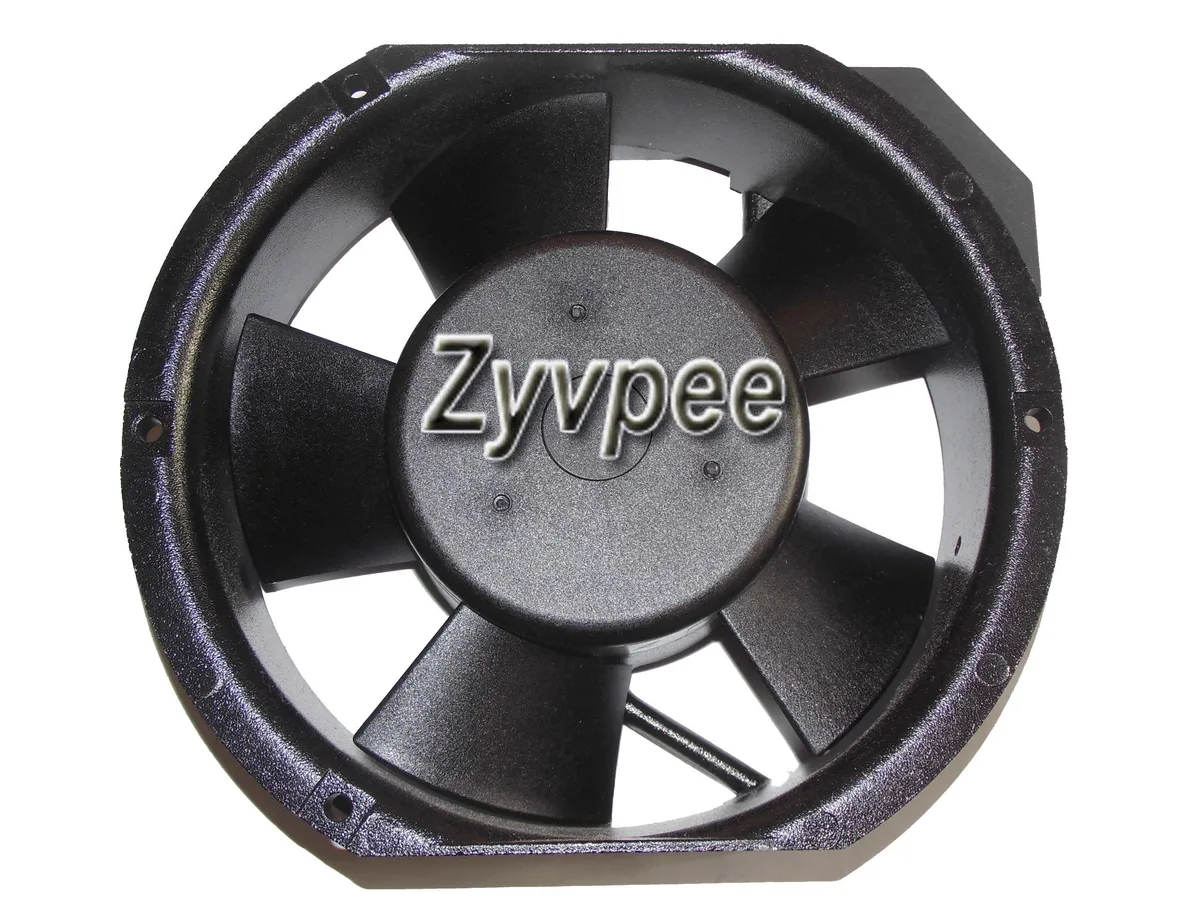

Black 170mm AC axial case fan, 172 by 55mm, two-wire power, non-LED, dual ball bearing

Zyvpee

Zyvpee A2175-HBL TC.GN 170mm AC Case Fan

SKU CH-SFYW-W5PBB

170 mm AC axial case fan with dual-ball bearing runs at 2800–3200 RPM on 220–240 V power

  • TypeCase Fan
  • CompatibilityCase
  • Fan Size170mm
  • Bearing Type2 Ball
  • Power Connector2 wires
  • ColorBlack
  • High airflow at 2800–3200 RPM for efficient case cooling
  • Dual ball bearing ensures long-lasting, reliable operation
  • 170 mm frame fits standard large-fan mounting points
  • Runs on 220–240 V AC mains power without a separate supply
  • Low 9.5–13.5 W draw keeps energy costs down

170 mm AC case fan for mains-powered cooling

The Zyvpee A2175-HBL TC.GN is a 170 mm axial fan that connects directly to a 220-240 V 50-60 Hz supply. It draws between 9.5 W and 13.5 W at a rated 25-26 W maximum and spins at 2800-3200 RPM. The unit is built for chassis ventilation where an AC source is preferred over a motherboard header.

Mains voltage limits connector choice

Because the fan runs on alternating current it uses a two-wire lead instead of a PWM or voltage-regulated header. Speed is fixed by the line frequency and motor design, so there is no software or BIOS adjustment. Builders must provide a switched mains circuit or an inline switch rather than relying on fan-curve software.

Dual-ball bearing and 172 x 55 mm frame suit

The 2-ball bearing is rated for continuous operation at Class B insulation, and the black 172 x 55 mm housing fits standard 170 mm mounting holes. The two-wire cable requires a secure mains connection, so cable routing and strain relief should be planned during installation. No LED lighting means the fan stays visually neutral in any build.

Highlights

  • High airflow at 2800–3200 RPM for efficient case cooling
  • Dual ball bearing ensures long-lasting, reliable operation
  • 170 mm frame fits standard large-fan mounting points
  • Runs on 220–240 V AC mains power without a separate supply
  • Low 9.5–13.5 W draw keeps energy costs down

Specifications

SeriesA2175-HBL
ModelA2175-HBL TC.GN
TypeCase Fan
CompatibilityCase
Fan Size170mm
Bearing Type2 Ball
Power Connector2 wires
ColorBlack
LEDNon-LED
FeaturesAC Axial Fan
Dimensions172*55mm

Questions about this item

What does the 170 mm fan size mean for case compatibility?

The 170 mm measurement matches the fan frame diameter, so the unit fits standard 170 mm mounting holes with a 172 mm overall width and 55 mm depth.

How do the 2800–3200 RPM speeds translate to actual airflow in a system?

At 2800–3200 RPM the AC axial fan moves a high volume of air through the case, suited for dense component layouts or restricted venting.

What does the 220–240 V AC rating mean for connecting the fan?

The fan runs directly from mains voltage via its two-wire lead; no motherboard header or DC converter is required, but wiring must follow local electrical codes.
