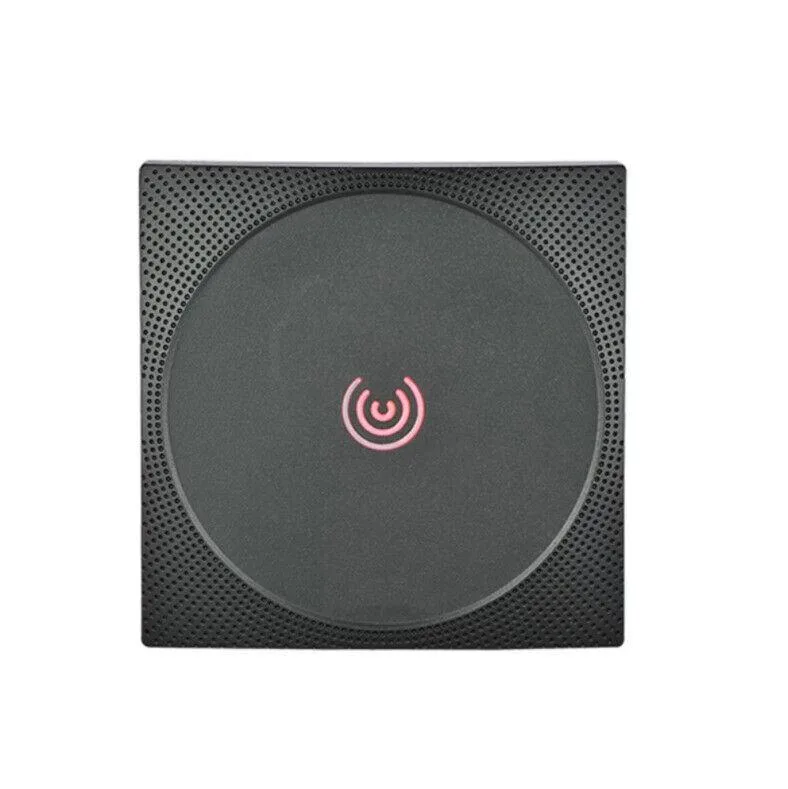

Black rectangular RFID card reader with textured ABS+PC finish, red and green LED indicators, IP65 rated

ZKTECO

ZKTECO KR601E KR601M RFID card reader office equipment

SKU CH-THZM-NRP6X

Waterproof RFID reader for access control reads ID and M1 cards at up to 10 cm with Wiegand output

Models: Select KR601E+ID

  • Fast card reading with advanced RF circuit and efficient decoding
  • Reads ID and M1 cards up to 10 cm range
  • IP65 waterproof for outdoor and indoor use
  • Wiegand 26/34 bit output integrates with access systems
  • Operates from -20 °C to +65 °C in 10–90 % humidity

Purpose and Audience

The ZKTECO KR601E KR601M is an RFID card reader built for door access control and attendance systems. It reads ID or M1 cards at a range of up to 10 cm and communicates through a 26 or 34 bit Wiegand output.

Suitability

This unit suits installers who need a weatherproof reader for outdoor gates or humid environments, thanks to its IP65 rating and operating range of -20° to +65°C. It is not for projects that require encrypted smart-card protocols or readers powered over Ethernet.

Deciding Specification

The reader operates on a DC 9-12V supply drawing a maximum of 70 mA and provides two input ports for external LED and buzzer control. Ensure your controller matches the Wiegand format and voltage before ordering.

Highlights

  • Fast card reading with advanced RF circuit and efficient decoding
  • Reads ID and M1 cards up to 10 cm range
  • IP65 waterproof for outdoor and indoor use
  • Wiegand 26/34 bit output integrates with access systems
  • Operates from -20 °C to +65 °C in 10–90 % humidity

Specifications

No published specifications for this item yet.

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the KR601E or the KR601M for my door access system?

Both KR601E and KR601M belong to the KR600 series and share the same specifications: 5-10 cm read range, DC 9-12 V power, 26/34 bit Wiegand output, IP65 rating, and 116 x 75 x 17.3 mm dimensions. Pick the model code your installer or existing controller documentation specifies.

What does the 5-10 cm read range mean when the reader is mounted on a real door?

Expect a practical swipe distance of roughly 5 to 10 centimetres between the card and the reader face. Mount the unit on a flat surface away from metal door frames or reinforced concrete, which can reduce the effective range toward the lower end.

The spec lists 26/34 bit Wiegand output — what does that cap in practice?

The reader transmits either 26-bit or 34-bit Wiegand data pulses on its two output lines. Your access controller must be configured for the matching bit length; the reader itself does not negotiate or auto-detect the format.
