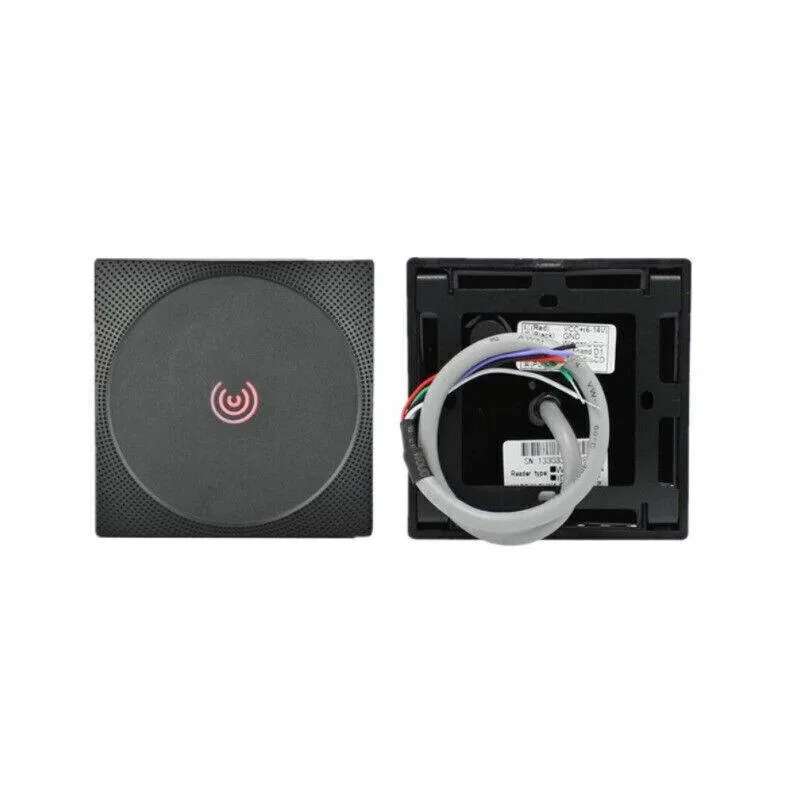

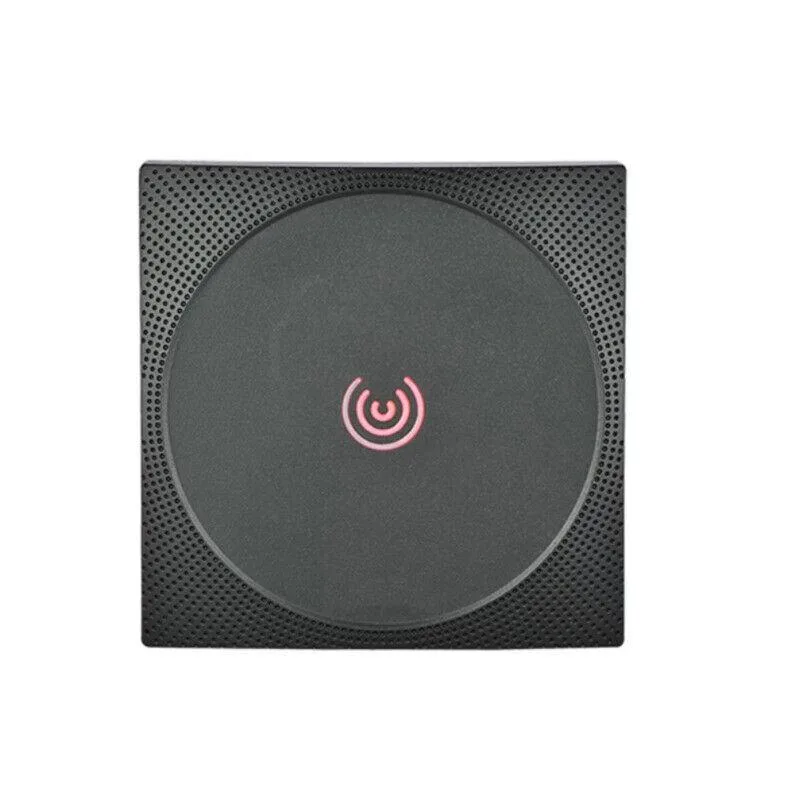

Black rectangular RFID card reader with textured finish and two-colour LED indicators

ZKTECO

ZKTECO KR601 RFID Card Reader IP65

SKU CH-CC58-NEW59

IP65-rated RFID reader reads ID and M1 cards at 5-10 cm range with 26/34-bit Wiegand output

Models: Select KR601E+ID

  • Reads cards up to 10 cm distance
  • IP65 rated for outdoor dust and water protection
  • Wiegand 26 or 34 bit output for easy integration
  • Operates from -20 °C to +65 °C wide temperature range
  • Low 70 mA current draw on 9-12 V DC supply

ZKTECO KR601 RFID Access Reader

The ZKTECO KR601 is a new IP65-rated RFID card reader built for door access control and attendance systems. It reads ID or M1 cards at up to 10 cm using a high-sensitivity RF circuit and embedded microcontroller. The unit delivers 26-bit or 34-bit Wiegand output and runs on 9–12 V DC at 70 mA maximum.

Installers needing Wiegand output

This reader suits projects that need a black ABS+PC housing rated IP65 for wall mounting at 116 by 75 by 17.3 mm. It is not for systems that require encrypted card technologies or multi-factor authentication beyond simple card presentation. Buyers needing integrated keypad or biometric verification should look at a different device.

26-bit or 34-bit Wiegand output format

The single specification that decides fit is the Wiegand output format, which must match the controller’s expected bit length. The reader provides two-colour LED indicators and a beeper for local feedback, plus two input ports for external LED and buzzer control. Operating range spans -20 °C to +65 °C at 10–90 % humidity.

Highlights

  • Reads cards up to 10 cm distance
  • IP65 rated for outdoor dust and water protection
  • Wiegand 26 or 34 bit output for easy integration
  • Operates from -20 °C to +65 °C wide temperature range
  • Low 70 mA current draw on 9-12 V DC supply

Specifications

No published specifications for this item yet.

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the KR601 reader is working after installation?

The red and green LED indicators show power and read status, and the built-in beeper sounds on a successful card read.

What comes in the box with the KR601 and what must I source separately?

The reader itself is supplied; you will need a DC 9-12 V power source capable of 70 mA and a controller that accepts 26/34 bit Wiegand output.

Which KR601 version should I choose for outdoor mounting?

The single IP65-rated model with ABS+PC housing operates from -20 °C to +65 °C and reads cards up to 10 cm, making it suited for exterior doors.
