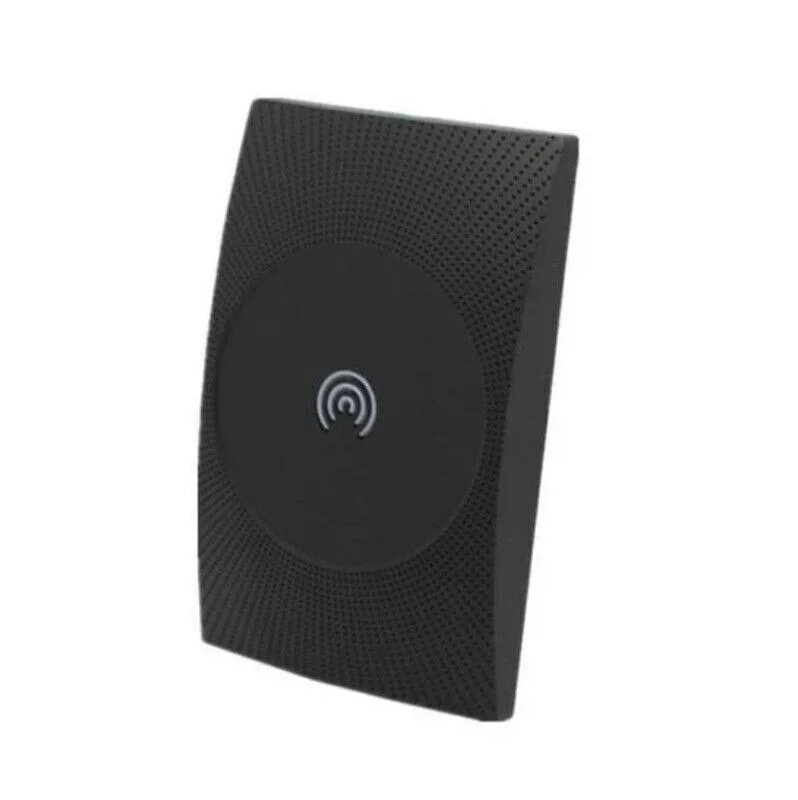

Black rectangular RFID reader with textured ABS+PC finish, red and green LED indicators, IP65 rated

ZKTECO

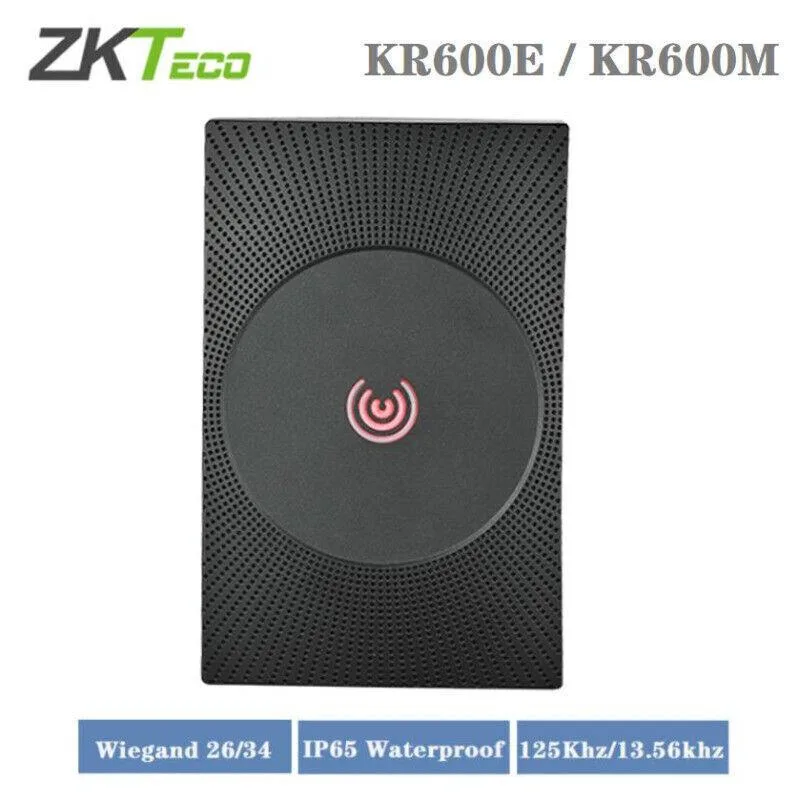

ZKTECO KR600E KR600M RFID Door Access Reader IP65

SKU CH-F05Q-KCSSQ

An IP65-rated RFID door reader reads ID or M1 cards at 5–10 cm range with 26/34-bit Wiegand output

Models: Select KR600E+ID

  • Reads cards up to 10 cm distance for quick entry
  • IP65 rated housing withstands dust and water jets outdoors
  • Wiegand 26 or 34 bit output integrates with panels
  • Operates from -20 °C to +65 °C in harsh climates
  • Dual-colour LED plus beeper gives instant visual and audio feedback

Access control reader for outdoor use

The KR600 series reader uses an advanced RF circuit and embedded microcontroller to read ID or M1 cards at up to 10 cm. It delivers high sensitivity, low current draw and fast reading speed for access control, attendance or charging systems. The IP65-rated ABS+PC housing withstands rain and dust in exposed locations.

Power and interface headroom

The unit runs on DC 9 to 12 V with a maximum current of 70 mA, keeping power requirements modest for long cable runs. Two input ports accept external LED and buzzer control signals, while the output provides 26 or 34 bit Wiegand format for direct connection to most controllers. Operating temperature spans -20 °C to +65 °C with humidity up to 90 % non-condensing.

Wiegand output format decides compatibility

The reader transmits card data exclusively in 26 or 34 bit Wiegand, so the host controller must support one of these bit lengths. Systems expecting proprietary serial protocols or other bit widths will not work without an additional converter.

Highlights

  • Reads cards up to 10 cm distance for quick entry
  • IP65 rated housing withstands dust and water jets outdoors
  • Wiegand 26 or 34 bit output integrates with panels
  • Operates from -20 °C to +65 °C in harsh climates
  • Dual-colour LED plus beeper gives instant visual and audio feedback

Specifications

No published specifications for this item yet.

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the KR600E KR600M reader work with my existing Wiegand 26-bit controller?

Yes, the reader outputs 26-bit or 34-bit Wiegand, so it connects directly to controllers expecting either format.

How can I verify the reader is functioning correctly after wiring it up?

Present a card; the red and green LEDs will change state and the beeper sounds to confirm a successful read.

Does the box include a 12 V power supply and mounting hardware, or must I source them separately?

The reader itself is supplied; a DC 9-12 V source and fixings are not included and must be purchased separately.
