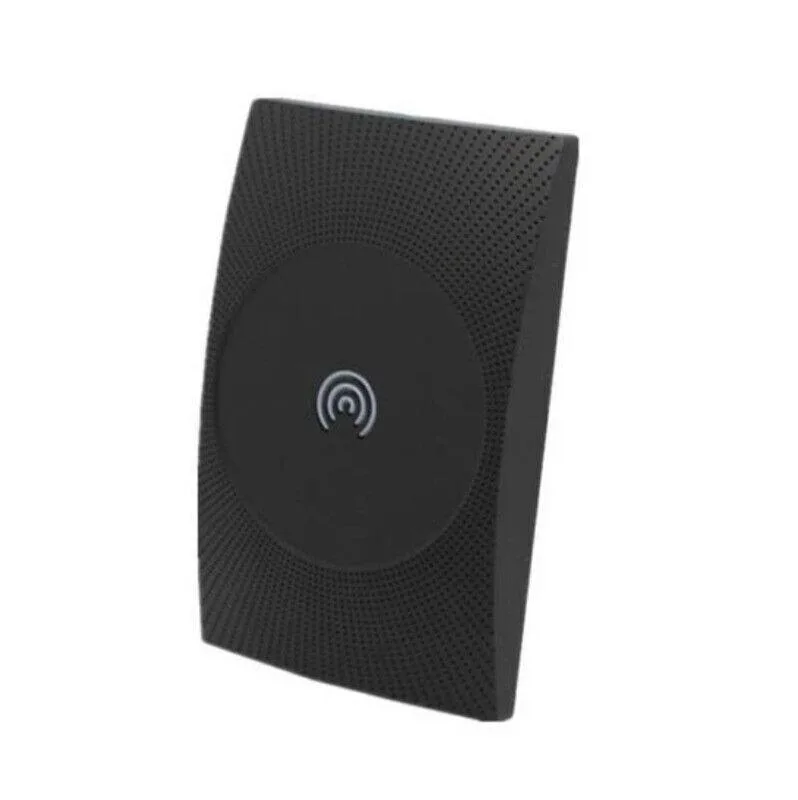

Black rectangular RFID card reader with textured ABS+PC finish, IP65 rated, 116 by 75 by 17.3 mm

ZKTECO

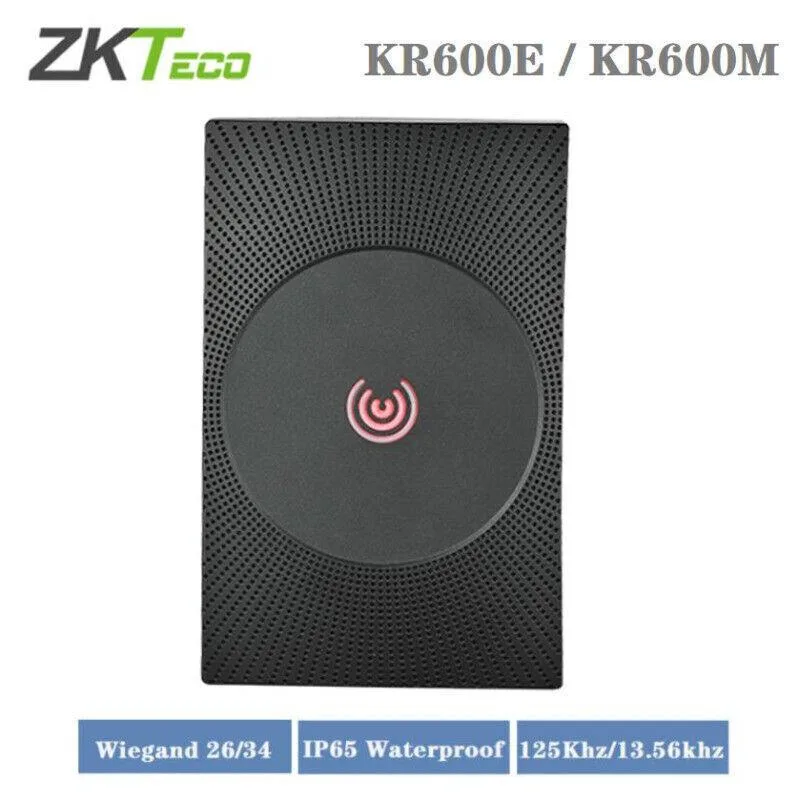

ZKTECO KR600E KR600M door access control system RFID card reader IP65

SKU CH-MB7M-SCA36

Weather-resistant RFID reader with Wiegand output reads ID and M1 cards up to 10 cm away

Models: Select KR600M+IC

  • IP65 rated for outdoor and wet environments
  • Reads ID and M1 cards up to 10 cm range
  • Wiegand 26/34 bit output integrates with panels
  • DC 9-12V power draws max 70 mA current
  • Operating range -20°C to +65°C for harsh climates

Door access reader for ID and M1 cards

The KR600 series reads standard ID cards or M1 cards at a range of up to 10 cm. An embedded microcontroller and efficient decoding algorithm give fast card reading speed with high receiving sensitivity. The unit suits access control, attendance, charging or anti-theft installations that rely on simple RFID credentials.

IP65 rated ABS+PC housing with Wiegand output

A black ABS+PC textured enclosure rated IP65 resists dust and water jets for indoor or outdoor mounting. Two colour LEDs and a built-in beeper give immediate visual and audible feedback. The reader delivers 26 or 34 bit Wiegand data and accepts two input ports for external LED or buzzer control, simplifying integration with existing panels.

Single 9 to 12 V DC supply up to 70 mA

The device operates from a single DC source between 9 and 12 volts, drawing no more than 70 mA. This low current demand lets it share a standard access-control power supply without extra regulation. Buyers who need PoE powering or a built-in relay for direct lock driving should look elsewhere.

Highlights

  • IP65 rated for outdoor and wet environments
  • Reads ID and M1 cards up to 10 cm range
  • Wiegand 26/34 bit output integrates with panels
  • DC 9-12V power draws max 70 mA current
  • Operating range -20°C to +65°C for harsh climates

Specifications

No published specifications for this item yet.

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What read range does the KR600E KR600M achieve with RFID cards?

The reader reaches 5 to 10 cm depending on the card type and orientation.

What mounting dimensions and cut-out does the 116*75*17.3 mm housing require?

The unit measures 116 mm wide, 75 mm high and 17.3 mm deep; it surface-mounts with two screw tabs on the rear.

How is the Wiegand output wired and which polarity do the two input ports expect?

Connect Data0 and Data1 to the controller for 26/34 bit Wiegand; the two inputs accept DC 9-12 V for external LED and buzzer control.
