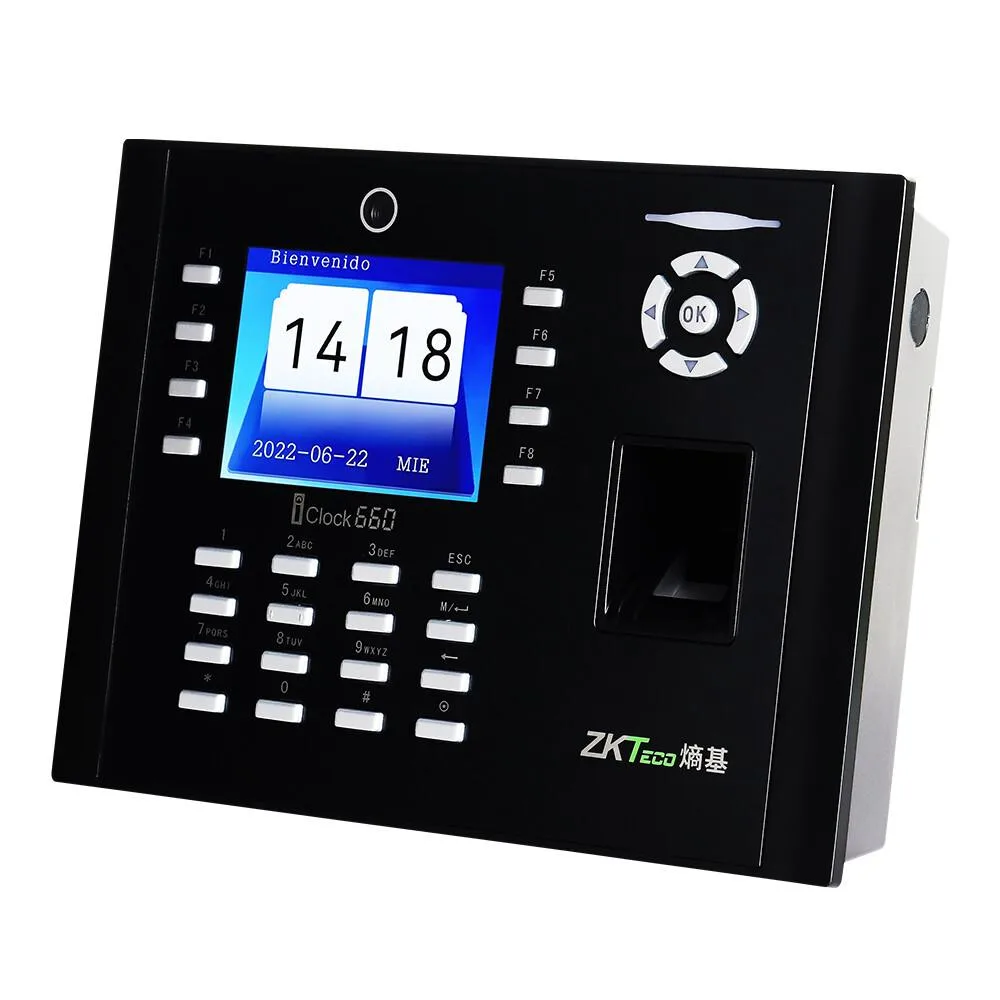

Rectangular biometric terminal with 3.5-inch color screen and fingerprint sensor

ZKTECO

ZKTECO iClock660 Fingerprint Time Attendance Terminal office equipment

SKU CH-1GMF-GMXVR

Fingerprint time-attendance terminal with door access control, storing 10,000 users, 8,000 fingerprints and 100,000 records on a 3.5-inch TFT screen with TCP/IP and USB connectivity

Options: Select iClock660 Standard

  • Stores up to 10,000 users for large organisations
  • Holds 8,000 fingerprint templates for fast verification
  • Keeps 100,000 event records for full audit trails
  • 5-inch HD TFT colour screen gives clear visual feedback
  • TCP/IP and U-disk support enable flexible data transfer

ZKTECO iClock660 for corporate attendance

The ZKTECO iClock660 is a fingerprint time attendance terminal designed for corporate units that need offline remote operation. It supports up to 10,000 users and stores 8,000 fingerprint templates with a record capacity of 100,000 entries. A 3.5-inch HD TFT colour screen provides a full graphical interface for intuitive interaction. The device runs on a built-in Linux system using the ZKFinger 10.0 algorithm for high-speed recognition.

Installation uses TCP/IP or serial links

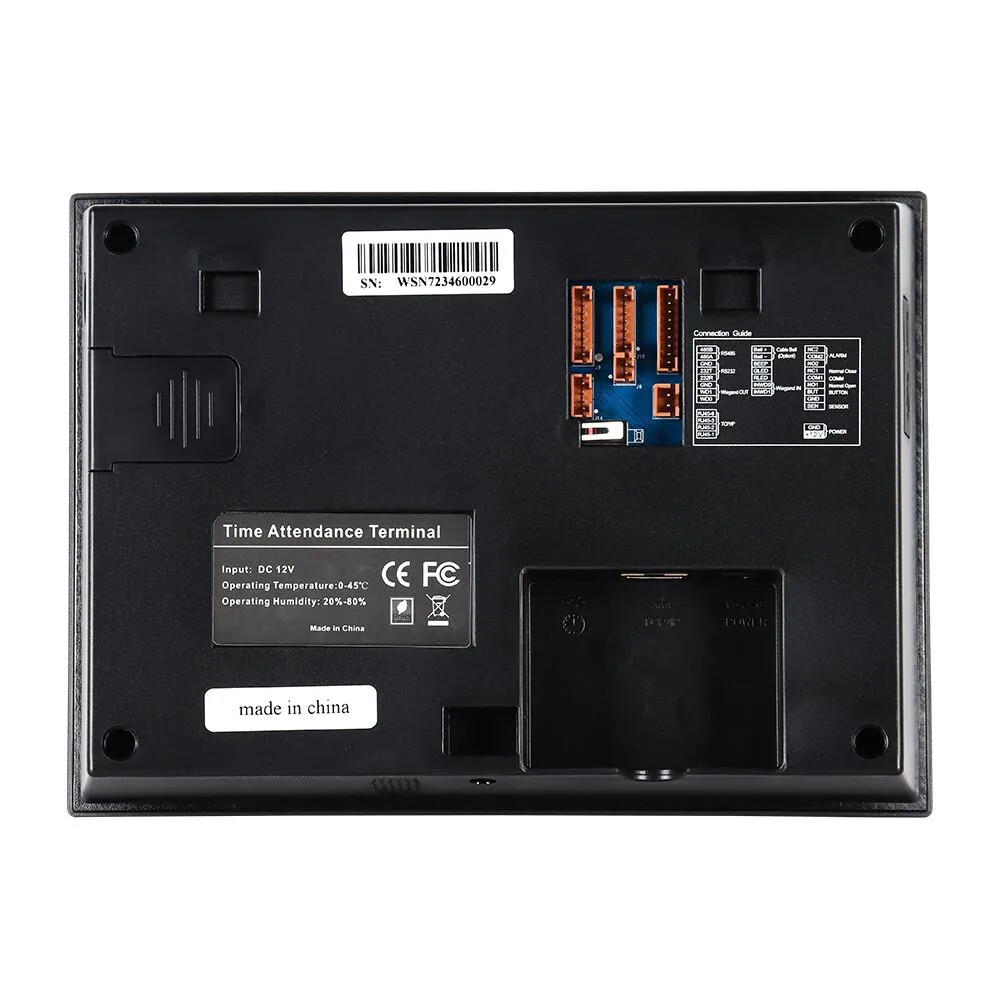

The terminal connects via TCP/IP, RS232 or RS485 so multiple units can be networked together. A U-disk port allows fast uploading and downloading of attendance data without a permanent network link. Mounting hardware is not described in the supplied data, so verify the fixing method before drilling. DC 12V 3A power must be provided from a suitable adapter that matches the barrel connector.

Check power, network and door wiring first

Confirm that a 12V 3A DC supply is available at the mounting location before ordering. Ensure the site has Ethernet cabling for TCP/IP or the appropriate RS232/RS485 bus if the network uses serial links. The unit operates between 0 and 45 °C with 20 to 80 % humidity, so verify the environment stays within those limits. Door access control wiring must match the terminal’s relay contacts for lock control.

Highlights

  • Stores up to 10,000 users for large organisations
  • Holds 8,000 fingerprint templates for fast verification
  • Keeps 100,000 event records for full audit trails
  • 5-inch HD TFT colour screen gives clear visual feedback
  • TCP/IP and U-disk support enable flexible data transfer

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the iClock660 is working correctly after installation?

After powering the unit with the DC 12V 3A supply, the 3.5-inch HD TFT colour screen should light up. Enroll a test fingerprint; the ZKFinger 10.0 algorithm will verify it. Check that attendance records appear in the Record Enquiry menu and that data can be downloaded via U-disk or TCP/IP.

What comes in the box with the iClock660 and what must I source separately?

The terminal itself is included. You will need to provide a DC 12V 3A power adapter, network cabling for TCP/IP, and optionally RS232 or RS485 cables if you plan to link multiple units. A U-disk for offline data transfer is also not supplied.

Which capacity version of the iClock660 suits my organisation?

The iClock660 supports up to 10,000 users, 8,000 fingerprint templates and 100,000 transaction records. Choose this model if your headcount and expected log volume fit within those limits; otherwise a higher-capacity terminal would be required.
