Zebra

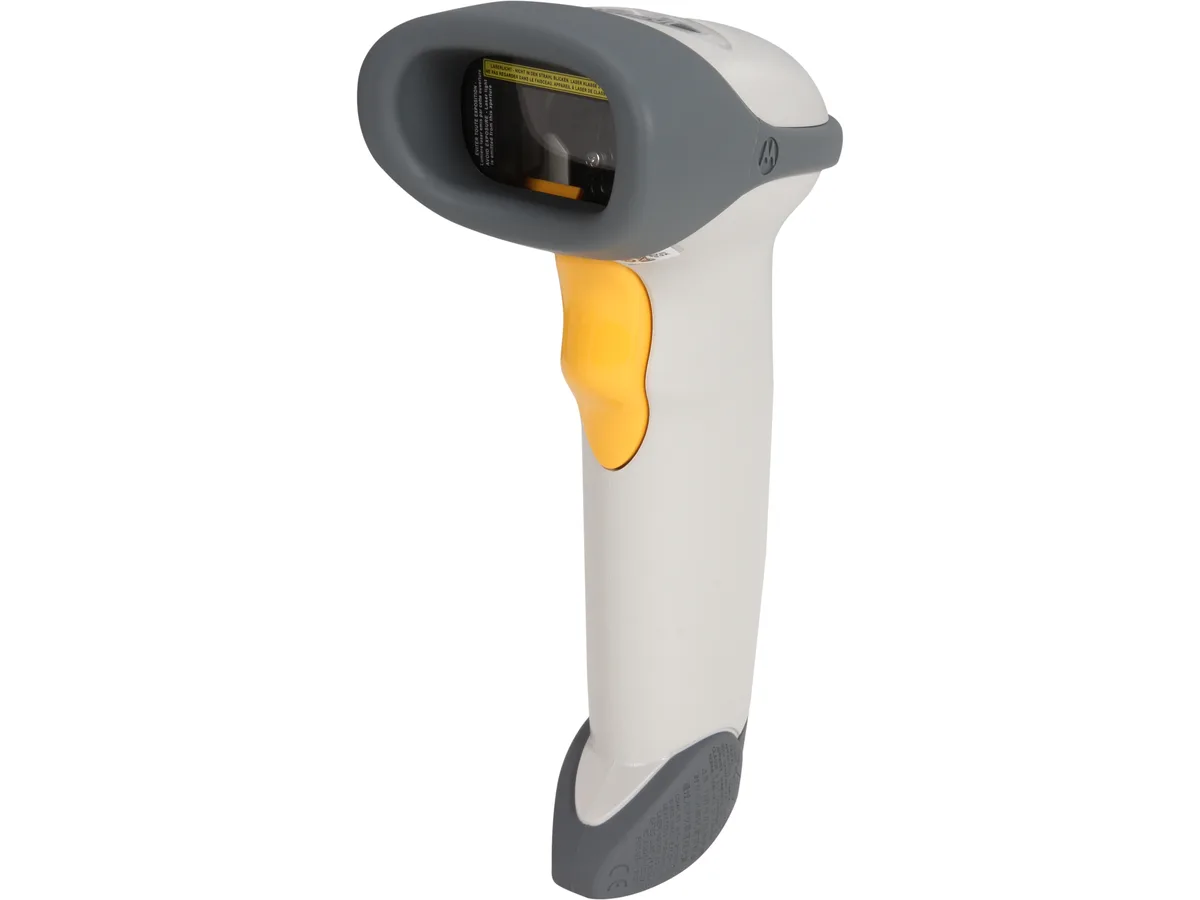

Zebra LS2208-SR20001NA barcode scanner
Handheld laser scanner reads 1D barcodes from contact to 17 inches with multi-interface support
- Form FactorHandheld
- ConnectivityCorded
- Scan EngineLaser
- Included CablesScanner Only - No Cable
- Interfaces SupportedMulti-Interface
- Light Source650 nm visible laser diode
- Scans up to 17 inches away for flexible counter use
- 100 scans per second keeps checkout lines moving
- Multi-interface support works with many host systems
- Lightweight 5.15 oz design reduces operator fatigue
- Survives 5-foot drops for long-term durability
Barcode Scanner for Retail and Service Counters
The Zebra LS2208-SR20001NA is a new handheld laser scanner built for continuous 1D barcode capture. Its 650 nm visible laser diode reads codes from near contact out to 17 inches at 100 scans per second. The multi-interface design integrates with a variety of host systems in retail, healthcare, education or government environments.
Suited for Fixed Workstations with Existing Cables
This unit fits cashier stations, pharmacy counters or library desks where a corded connection is preferred and a compatible cable is already available. It is not for operators who need freedom of movement, nor for teams that require 2D code reading such as QR or Data Matrix symbols. Buyers without a spare cable must source one separately before deployment.
Single-Board Construction Survives Five-Foot Drops
The scanner meets stringent 5 ft drop tests and uses a scratch-resistant tempered glass exit window to protect the optics during daily use. This durability, combined with a lightweight 5.15 oz frame and ±65° pitch, ±60° yaw and ±30° roll tolerance, decides whether the device will withstand high-volume, fast-paced checkout lanes.
Highlights
- Scans up to 17 inches away for flexible counter use
- 100 scans per second keeps checkout lines moving
- Multi-interface support works with many host systems
- Lightweight 5.15 oz design reduces operator fatigue
- Survives 5-foot drops for long-term durability
Specifications
| Brand | symbol |
|---|---|
| Model | LS2208 |
| Part Number | LS2208-SR20001NA |
| Form Factor | Handheld |
| Connectivity | Corded |
| Scan Engine | Laser |
| Included Cables | Scanner Only - No Cable |
| Interfaces Supported | Multi-Interface |
| Light Source | 650 nm visible laser diode |
| Pitch | ±65 degree |
| Roll | ±30 degree |
| Yaw | ±60 degree |
| Scan Speed | 100 scans per second typical |
| Print Contrast Ratio (Minimum) | 20% |
| Decoding Capability | UPC/EAN, UPC/EAN with Supplementals, UPC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5 |
| Input Voltage | 5 volts +/- 10% at 130 mA typical |
| Current | 175 mA max |
| Color | White |
| Dimensions | 6 in. H x 2.5 in. W x 3.34 in. D |
| Weight | 5.15 oz. |
| Drop | 5 feet |
| Shipping weight | 0.27 kg |
| Package size | 183 × 130 × 76 mm |
