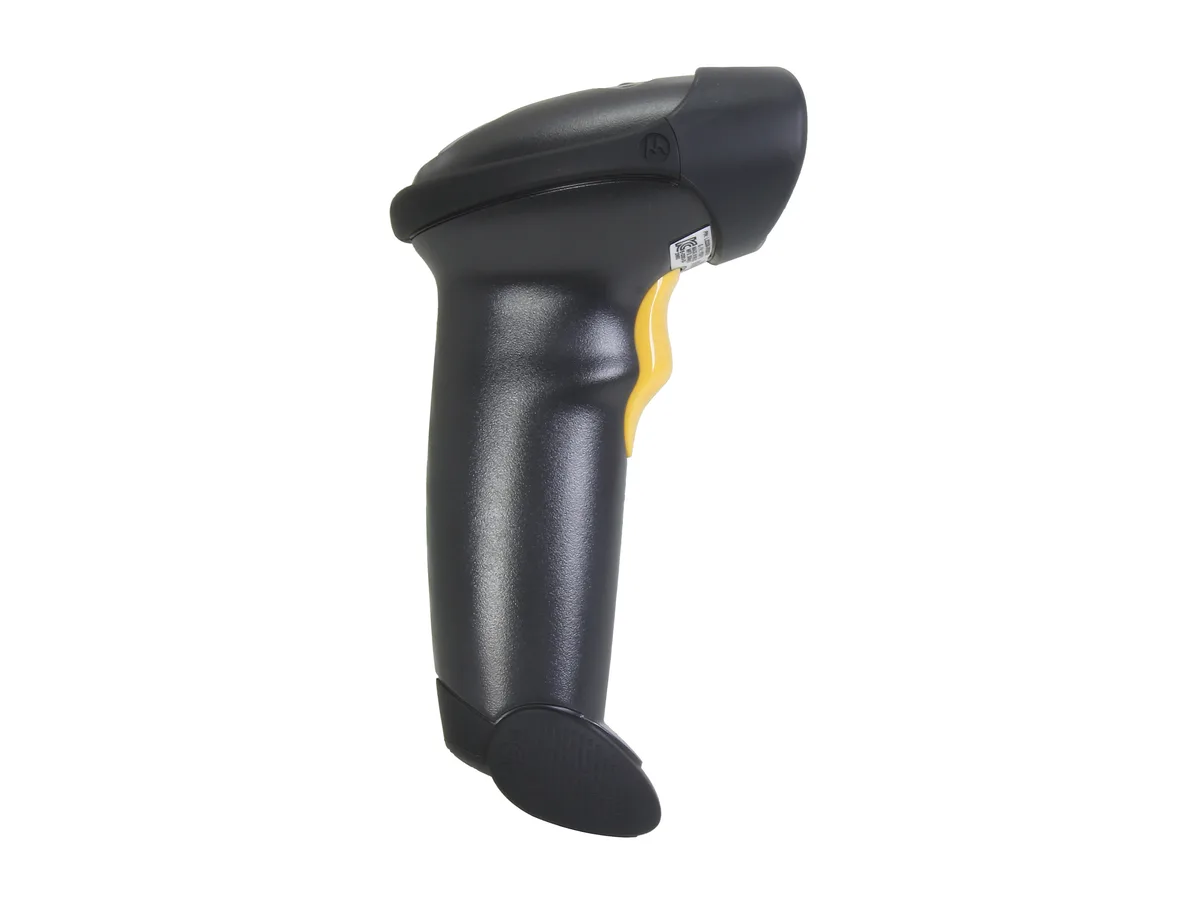

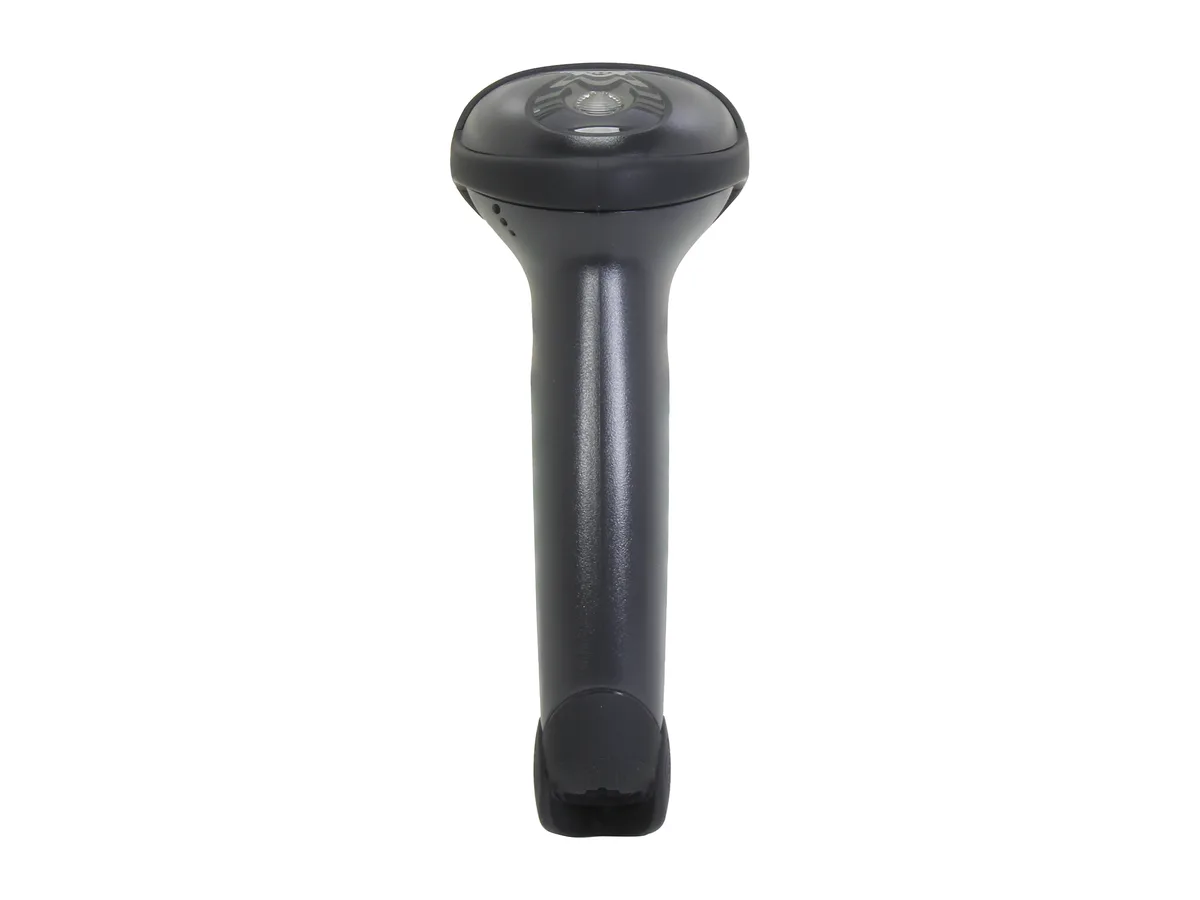

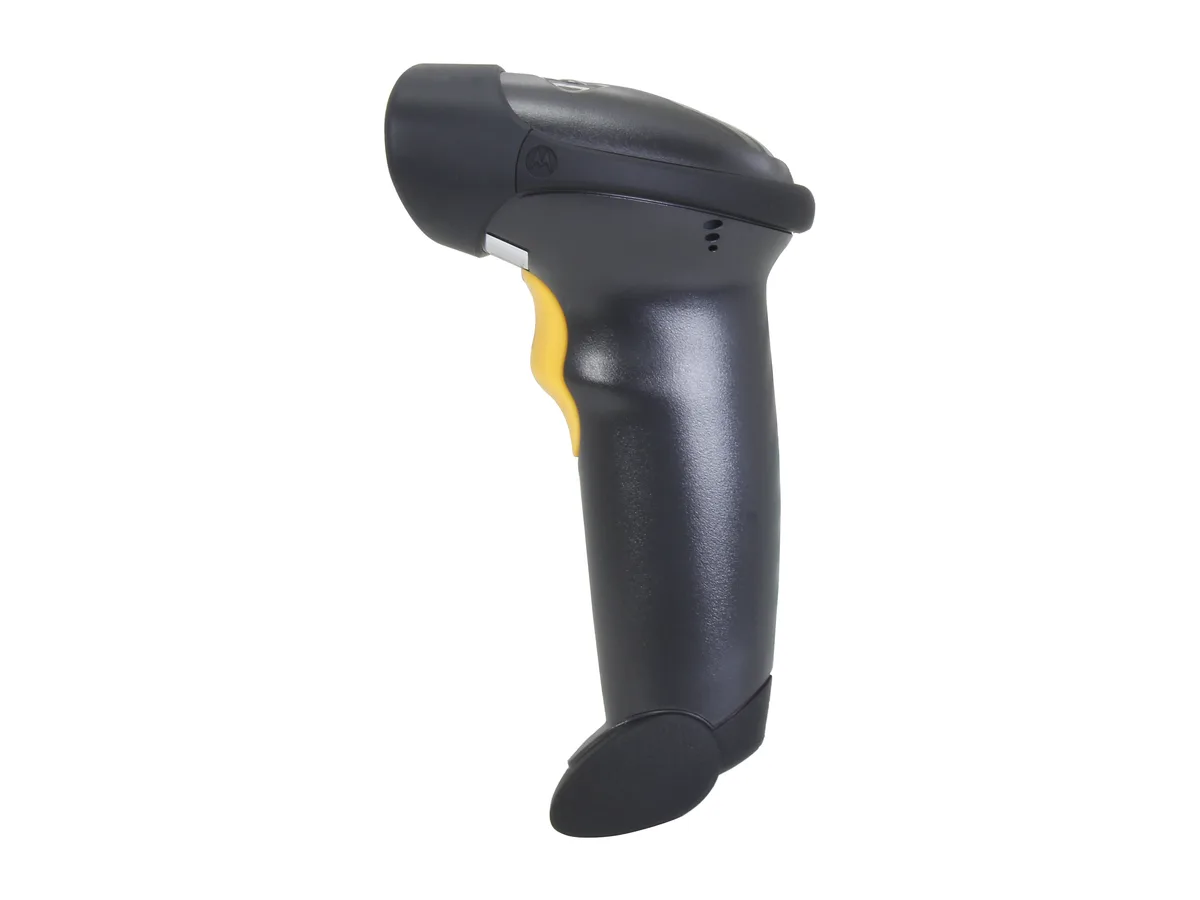

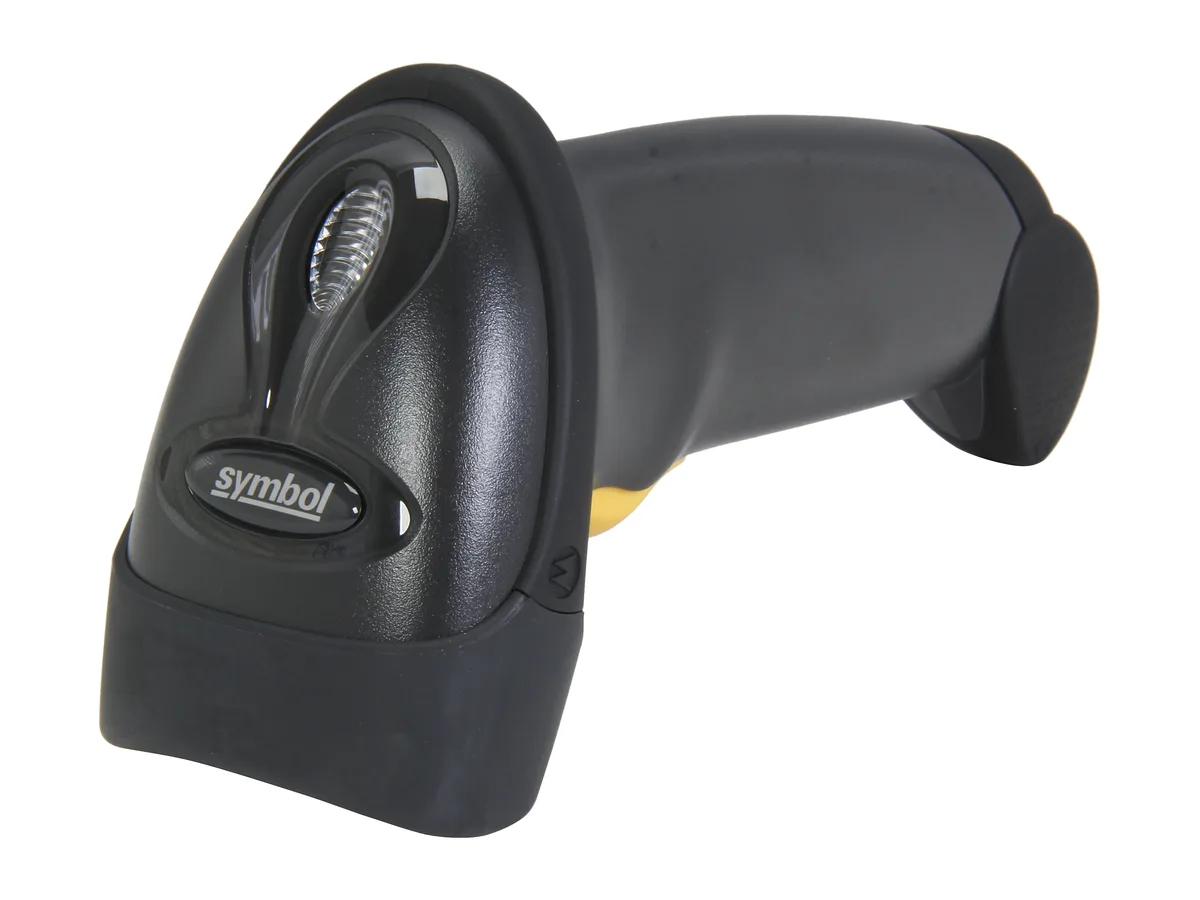

symbol LS2208-SR20007NA barcode scanner
Corded handheld laser scanner reads 1D barcodes from contact to 17 inches with multi-interface support
- Form FactorHandheld
- ConnectivityCorded
- Scan EngineLaser
- Included CablesScanner Only - No Cable
- Interfaces SupportedMulti-Interface
- Light Source650 nm visible laser diode
- Fast first-time 1D capture with 100 scans per second speed
- Wide working range from contact to 17 inches for flexible use
- Durable single-board construction meets 5ft drop tests
- Scratch-resistant tempered glass window designed for continuous use
- Multi-interface support enables simple integration with host systems
Handheld Laser Scanner for Retail
The Symbol LS2208 is a corded handheld barcode scanner built for continuous use at point-of-sale stations, hospital desks, education offices and government counters. Its lightweight 5.15 oz body and single-board construction survive 5 ft drops, while a scratch-resistant tempered glass exit window protects the optics during high-volume shifts.
Sustained Scanning Throughput and Working Range
A 650 nm visible laser diode performs 100 scans per second typical, maintaining first-read accuracy across a working range from contact to 17 in (43 cm). The multi-interface design keeps communication steady with the host system during long queues, and the ergonomic balance reduces operator fatigue so throughput stays consistent hour after hour.
Cable-Required Multi-Interface Connectivity
This unit ships as scanner only with no cable included; a compatible cable must be sourced separately to activate the on-board Multi-Interface support. Without the correct cable the scanner cannot connect to any host, making cable selection the single step that determines whether the LS2208 integrates with your existing terminal.
Highlights
- Fast first-time 1D capture with 100 scans per second speed
- Wide working range from contact to 17 inches for flexible use
- Durable single-board construction meets 5ft drop tests
- Scratch-resistant tempered glass window designed for continuous use
- Multi-interface support enables simple integration with host systems
Specifications
| Brand | symbol |
|---|---|
| Model | LS2208 |
| Part Number | LS2208-SR20007NA |
| Form Factor | Handheld |
| Connectivity | Corded |
| Scan Engine | Laser |
| Included Cables | Scanner Only - No Cable |
| Interfaces Supported | Multi-Interface |
| Light Source | 650 nm visible laser diode |
| Pitch | ±65 degree |
| Roll | ±30 degree |
| Yaw | ±60 degree |
| Scan Speed | 100 scans per second typical |
| Print Contrast Ratio (Minimum) | 20% |
| Decoding Capability | UPC/EAN, UPC/EAN with Supplementals, UPC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5 |
| Input Voltage | 5 volts +/- 10% at 130 mA typical |
| Current | 175 mA max |
| Color | Black |
| Dimensions | 6 in. H x 2.5 in. W x 3.34 in. D |
| Weight | 5.15 oz. |
| Drop | 5 feet |
| Shipping weight | 0.25 kg |
| Package size | 178 × 119 × 76 mm |
